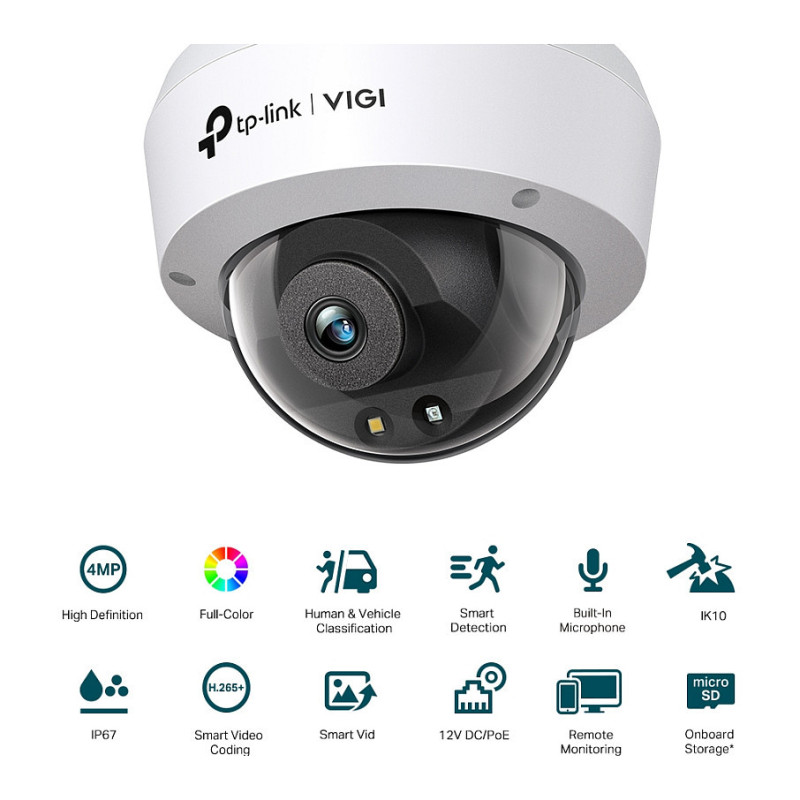

TP-Link VIGI C240 (2.8mm)

TP-Link VIGI 4MP Full-Color Dome Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 95.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 2.8 mm

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

No more silent surveillance.

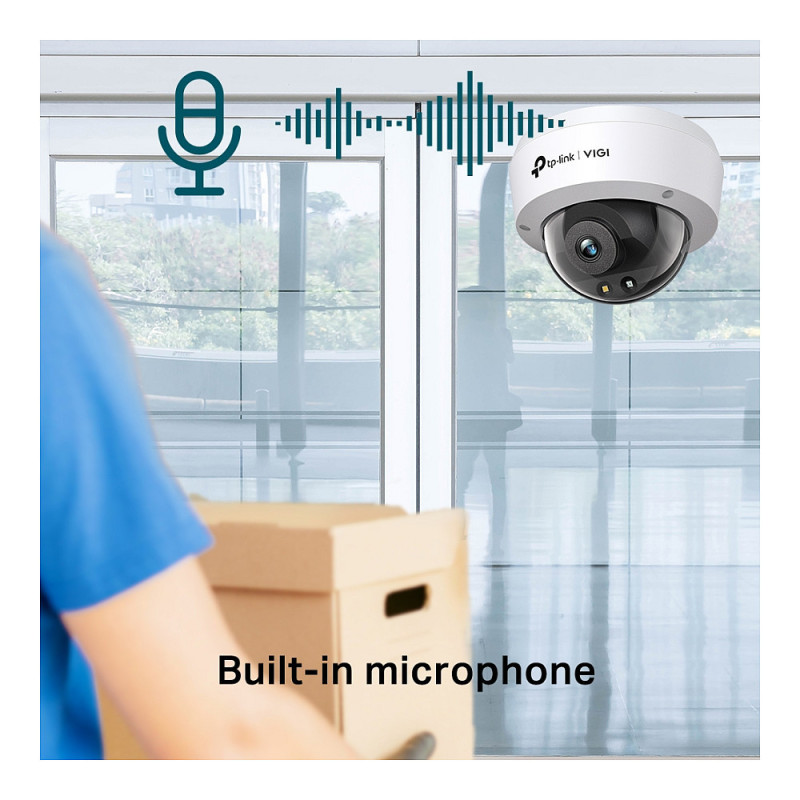

Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

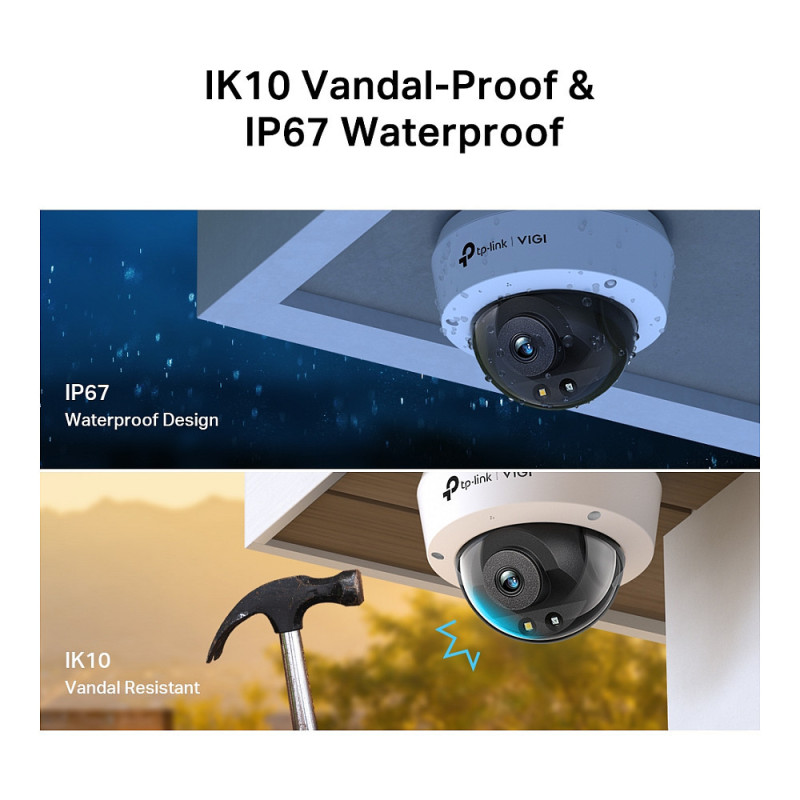

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

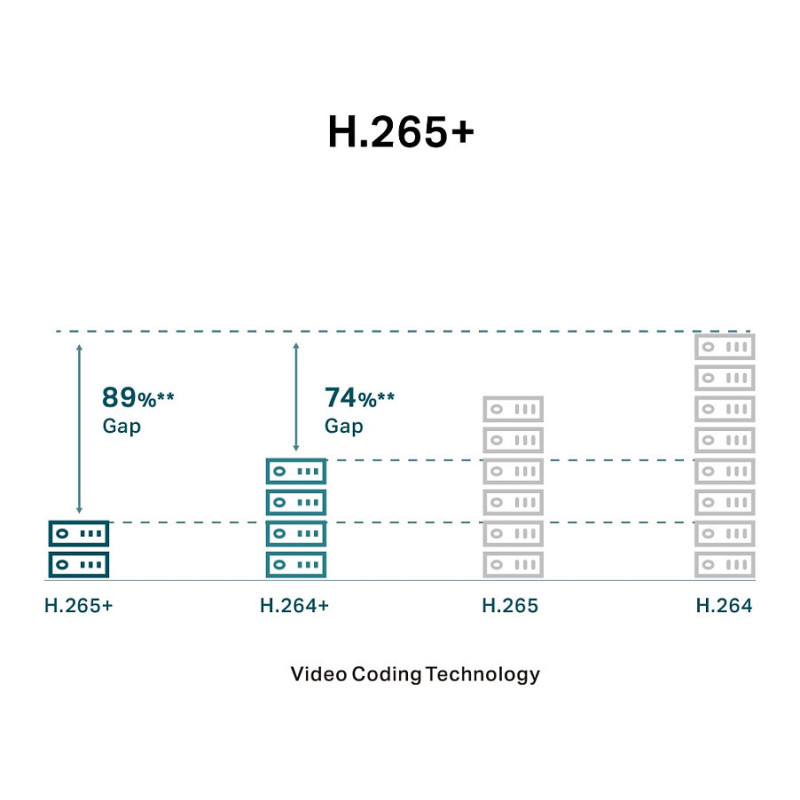

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Never miss a detail.

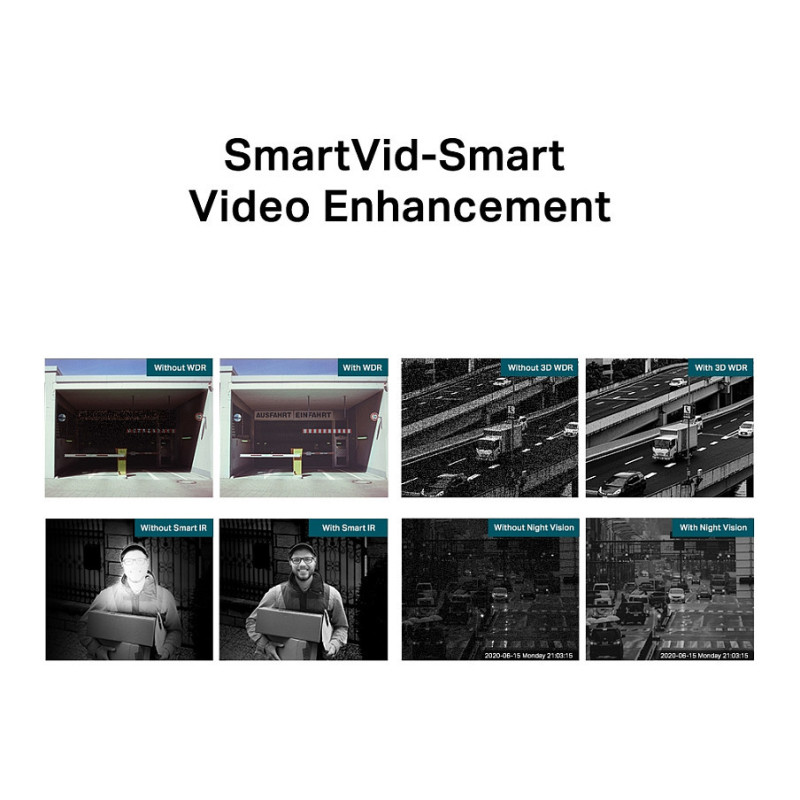

SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each methods, as well as onboard storage with SD card slot.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Day/night mode
Certification: CE, BSMI, VCCI, ONVIF

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Plastic
International Protection (IP) code: IP67
IK code: IK10

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.005 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 95.7°
Lens viewing angle, vertical: 51.7°
Lens viewing angle, diagonal: 113°
Tilt angle range: 0 - 85°
Pan range: 0 - 360°

Image sensor

Optical sensor size: 25.4 / 3 mm (1 / 3")
Sensor type: CMOS

Lens system

Number of lenses: 1
Lens diameter: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 1
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate: 30 fps
Feature: Video streaming
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness
Feature: Privacy masking
Bit rate: 64 Kbps - 4 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Digital Wide Dynamic Range (DWDR)

Audio

Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels: 3 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Feature: HTTPS encryption
Intelligent Video Surveillance (IVS) system features: Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection
Feature: Mirror
Feature: Digest authentication

Management features

Feature: Web-based management
Feature: Reset button
Management software: VIGI App, VIGI Security Manager, VIGI NVR

Power

Power source type: DC, PoE
Power consumption (max): 5.4 W

Operational conditions

Operating temperature (T-T): -30 - 60 °C

Weight & dimensions

Width: 115 mm
Depth: 115 mm
Height: 86 mm

Features

Basic event: Motion Detection, Camera Tampering Detection, Exception

Packaging data

Package width: 153 mm
Package depth: 193 mm
Package height: 120 mm
Package weight: 460 g

Sustainability

Compliance certificates: CE

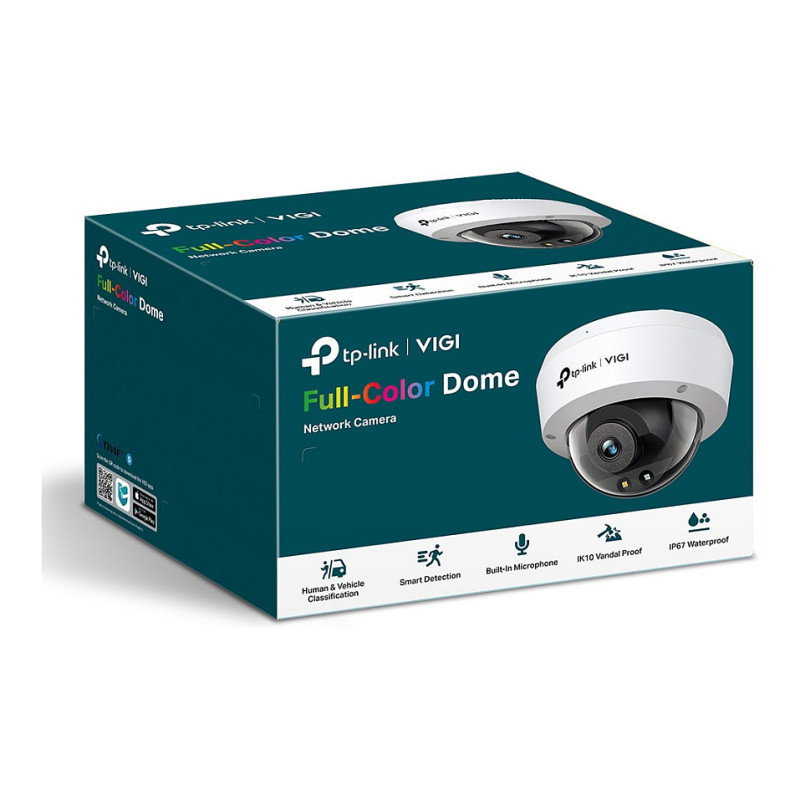

Packaging content

Number of cameras: 1
Feature: Mounting kit
