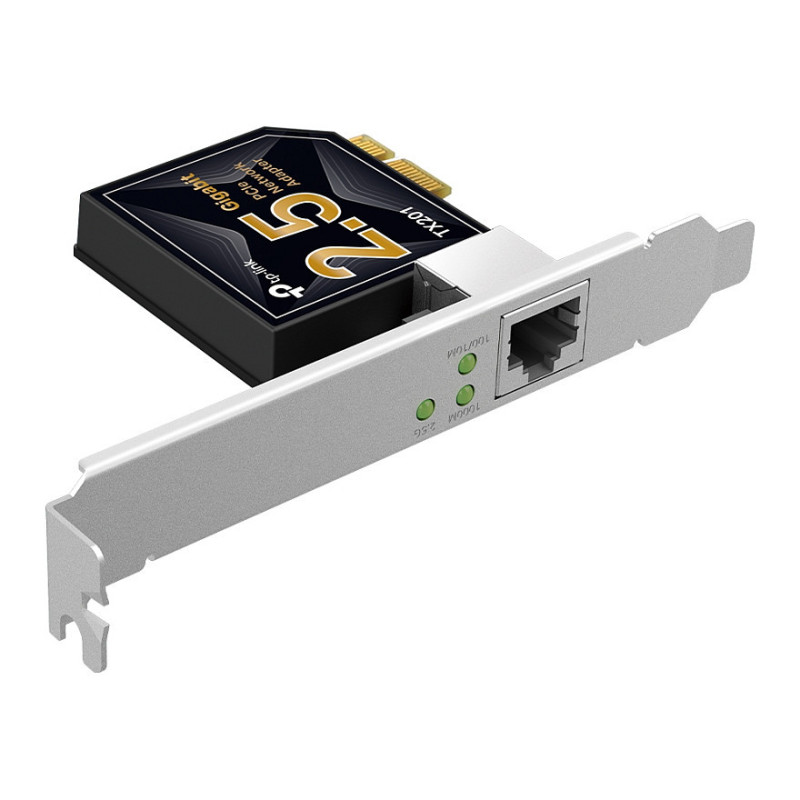

TP-Link TX201 network card

TP-Link 2.5 Gigabit PCIe Network Adapter. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Black, Grey

All in Seconds with Blazing Fast 2.5G Speeds

Incredible 2.5G Networking

2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.

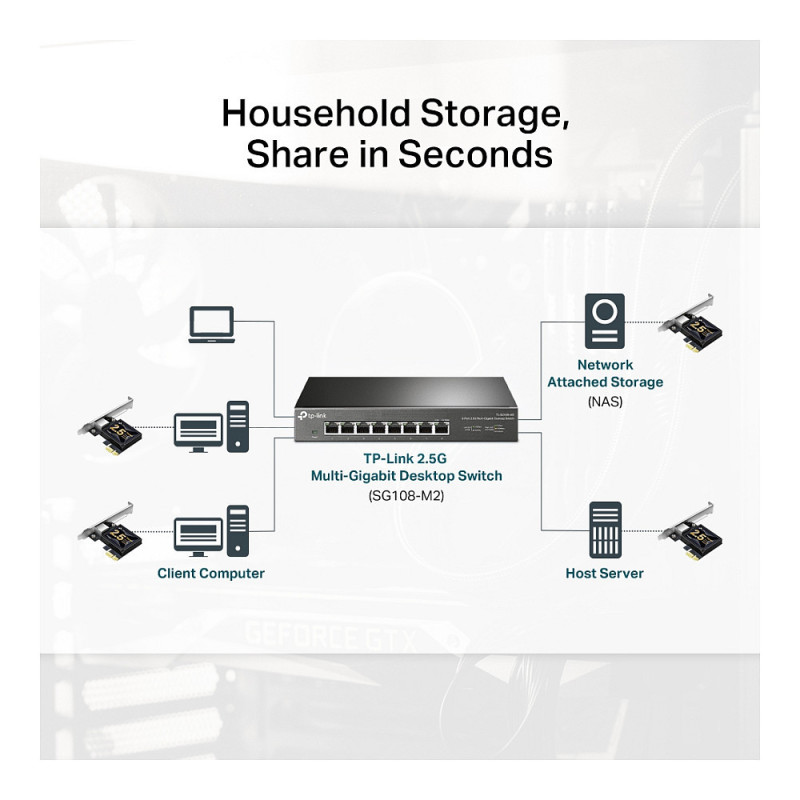

Household Storage, Share in Seconds

For local connections, a 2.5G PCIe adapter helps build a lightning fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.

2.5G Extremely Fast Internet Response

With 2.5 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

Versatile, Multi-Speed Compatibility

2.5G Base-T is backwards compatible with multiple data rates, including 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps Base-T connectivity. The 2.5G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 2.5G networking smoothly.

QoS Support

Quality of Service technology ensures enough bandwidth and avoids network congestion. Whether streaming or real-time gaming, enjoy a smooth web experience.

Wake On LAN

Remotely power on/off your computer with WOL, good for centralized management.

Low-Profile Bracket

In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Easy Setup

Simple software installation with the intuitive Utility on the provided CD.

Comprehensive System Support

Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 022/2019/2016/2012 R2/2012/2008 R2, Linux.

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 2.1

Network

Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: Wake-on-LAN ready
Feature: Full duplex

Design

Component for: PC/Laptop
Product colour: Black, Grey
Feature: Internal
LED indicators: Activity, Link

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 120.8 mm
Depth: 21.5 mm
Height: 98.2 mm

Packaging data

Package width: 201.5 mm
Package depth: 152.5 mm
Package height: 41.5 mm
Package weight: 170 g

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Quick installation guide

Technical details

Compliance certificates: RoHS, Federal Communications Commission (FCC), CE
