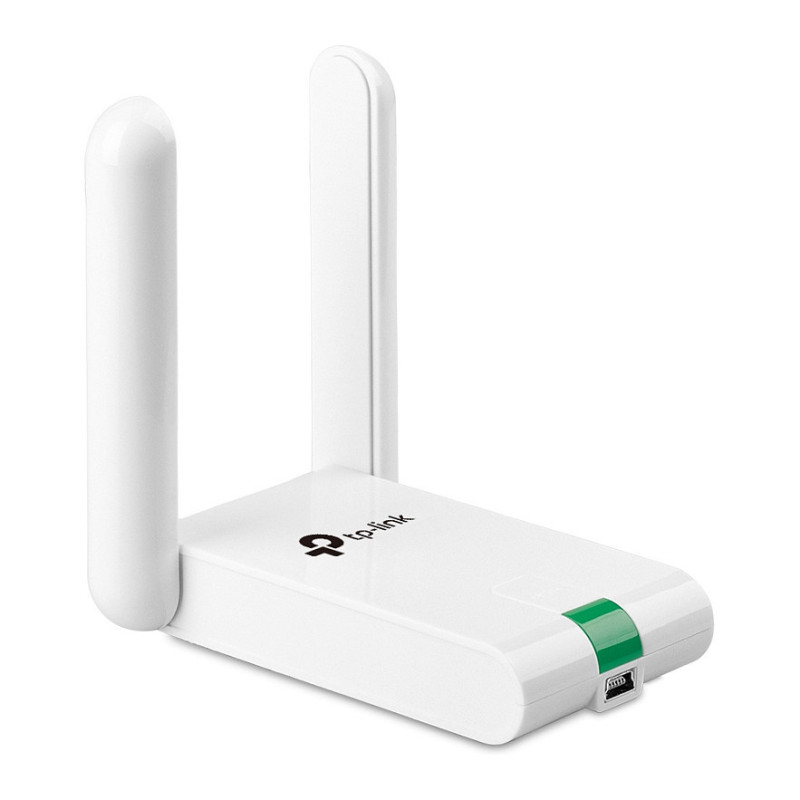

TP-Link TL-WN822N network card

TP-Link TL-WN822N. Connectivity technology: Wireless, Host interface: Mini-USB, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). Product colour: White

Stronger Coverage with High-Gain External Antennas

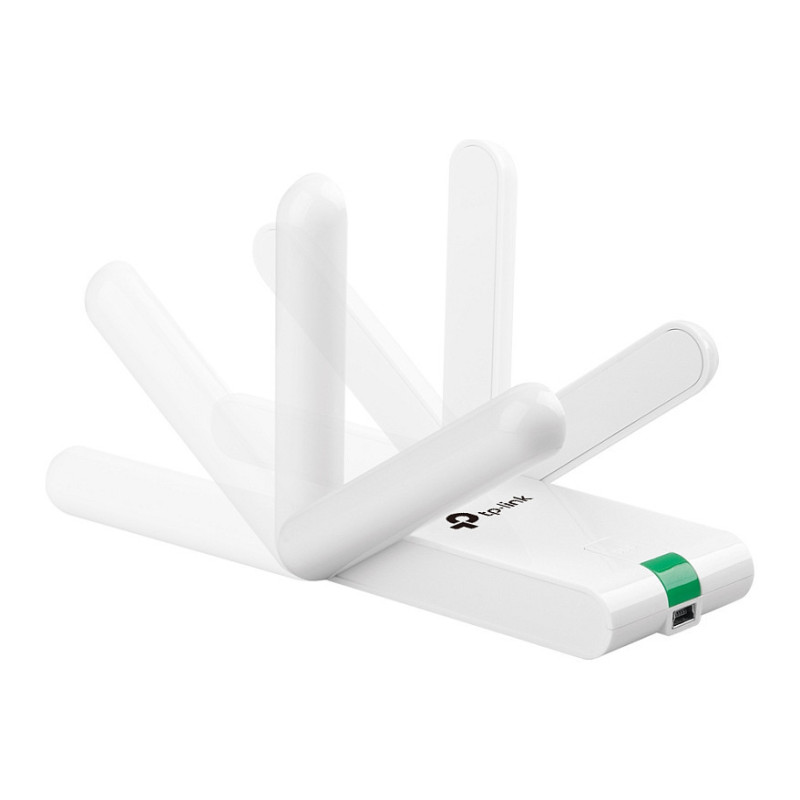

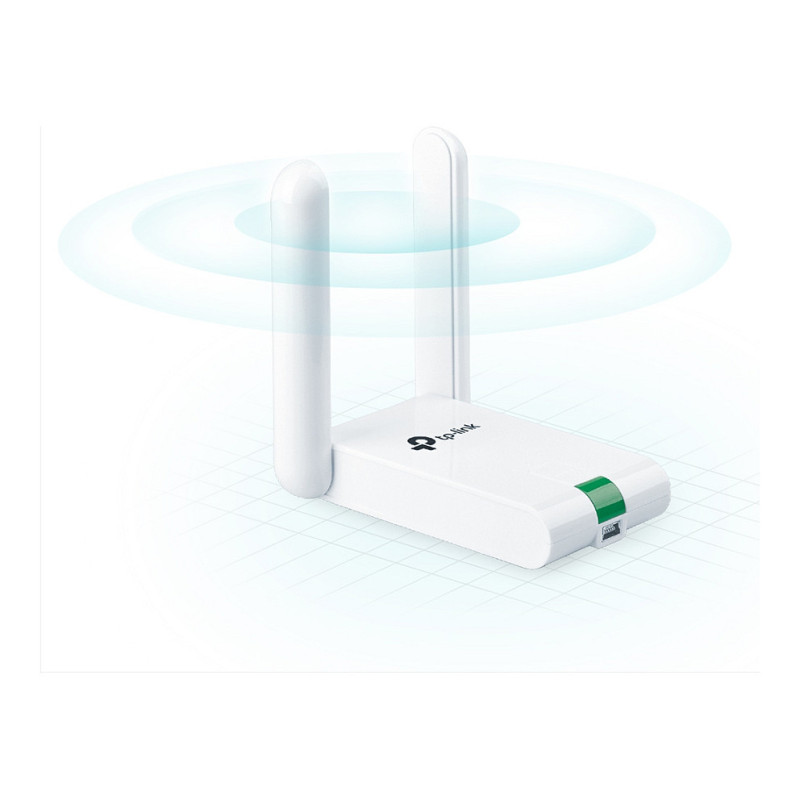

The TL-WN822N has two high-gain external antennas to insure stronger signal transmission and reception, which helps you to access a stable Wi-Fi connection across your home, even when your router is on a different floor.

Easy Use with a Friendly Design

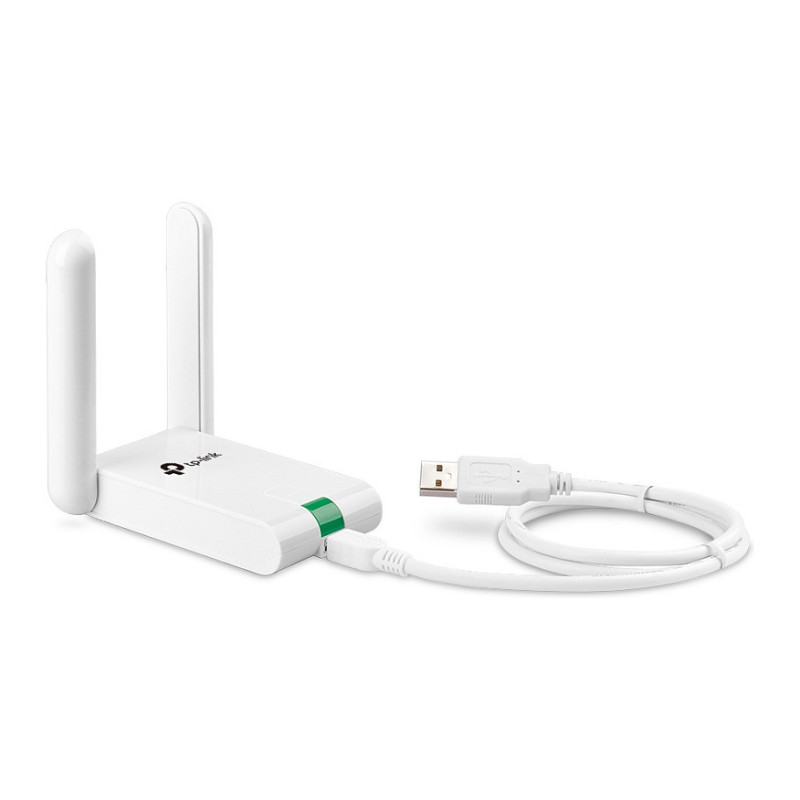

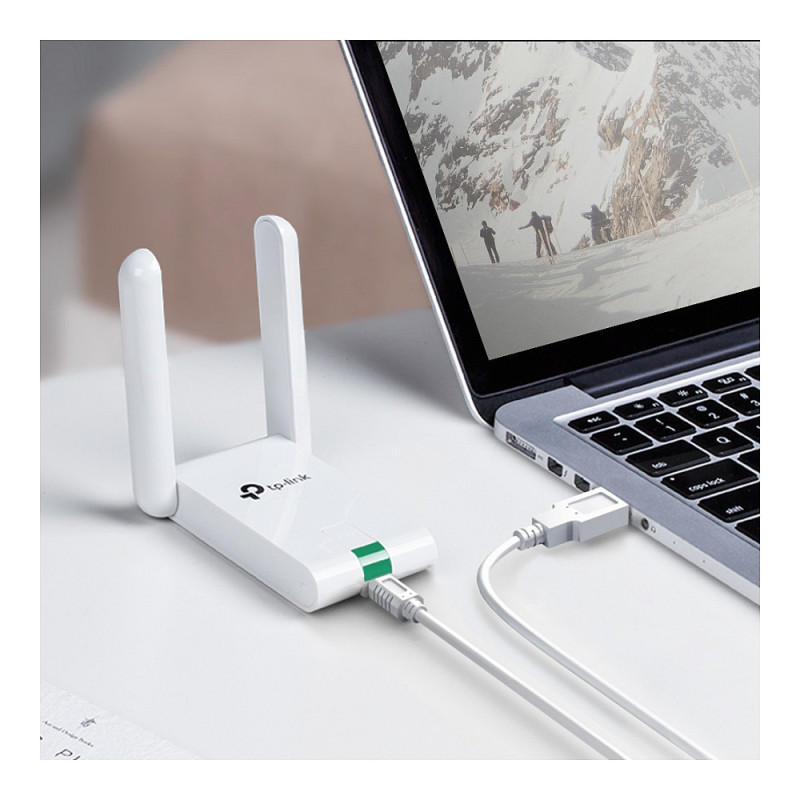

The desktop-style design is beneficial for the signal reception in various application environments. TL-WN822N also provides 1.5m USB extension cable, which is convenient for your installation, even for the desktop equipment.

Easy Setup
A friendly user interface on a CD
for simple installation

WPS Button
Easy wireless security encryption
at a push of the WPS button

Operating System
Supports Windows,
Mac OS, Linux

Ports & interfaces

Connectivity technology: Wireless
Host interface: Mini-USB
Interface: WLAN
USB ports quantity: 1
USB version: 2.0

Network

Maximum data transfer rate: 300 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Single-band (2.4 GHz)
Frequency range: 2.4 - 2.4835 GHz
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 11,54,300 Mbit/s
Modulation: 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms: 64-bit WEP, 128-bit WEP, WMM, WPA-PSK, WPA2-PSK

Design

Product colour: White
Antenna: Yes
Antenna design: External
Antenna direction type: Omni-directional
Antenna gain level (max): 3 dBi
Transmitting power (CE): 20 dBm
Transmitting power (FCC): 20 dBm
Operating modes: Infrastructure mode

System requirements

Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 90 mm
Depth: 68 mm
Height: 16.8 mm

Packaging data

Package width: 200 mm
Package depth: 150 mm
Package height: 39 mm
Package weight: 210 g

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 85176990
