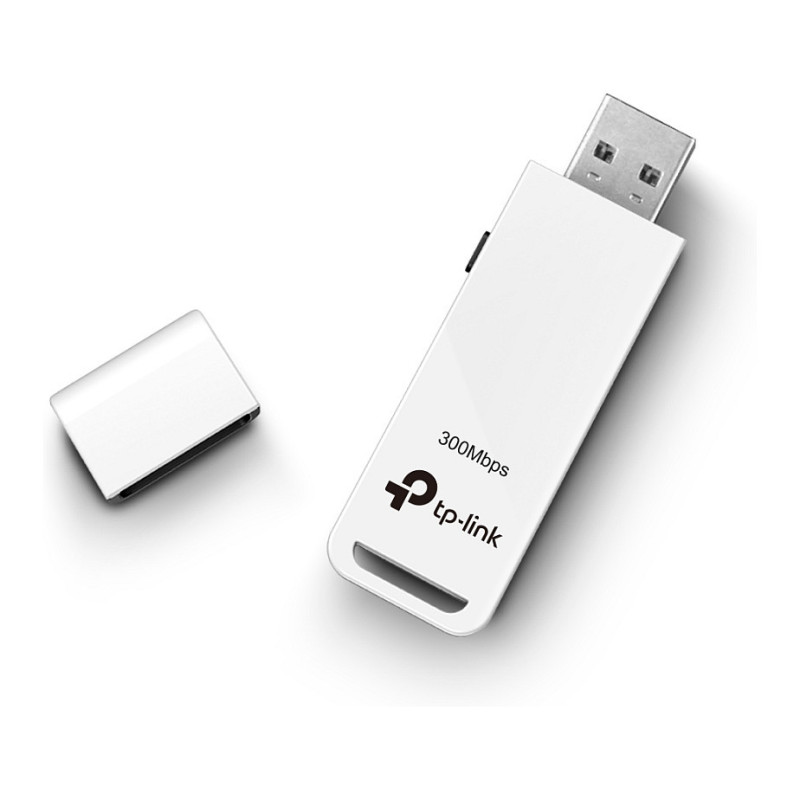

TP-Link TL-WN821N network card

TP-Link TL-WN821N. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). USB powered. Product colour: Black, White

The TL-WN821N Wireless N USB Adapter complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, and IEEE 802.11b standards. Wireless transmission rates can reach up to 300Mbps. The adapter employs MIMO technology and has internal Intelligent Antennas providing even better wireless performance, transmission rates, stability and coverage. At the same time, CCA technology automatically avoids channel conflicts using its channel selection feature. This product supports 64/128-bit WEP encryptions, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions and mechanisms in addition to the adapter's QSS (Quick Secure Setup) feature, allowing users to quickly and easily setup wireless security. This product can also simultaneously operate bandwidth intensive applications such as voice, and video. Applications using a lot of bandwidth that are sensitive to interruptions such as voice and video applications are given priority in order to assure quality. It also works well with other 11g and 11n protocol wireless products.
- Provides two methods of operation: Infrastructure and Ad-Hoc
- Adopts MIMO technology for wireless rates of up to 300Mbps
- Adopts CCA technology which automatically avoids channel conflicts using its channel selection feature
- Quick Secure Setup, complies with WPS for worry free wireless security
- Supports 64/128-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X
- Simple Configuration and monitoring
- Supports Roaming technology, guaranteeing efficient wireless connections.
- Supports Windows 2000/XP/Vista OS

Ports & interfaces

Connectivity technology: Wireless
Host interface: USB
Interface: WLAN

Network

Maximum data transfer rate: 300 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Single-band (2.4 GHz)
Frequency range: 2.4 - 2.4835 GHz
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 11,54,300 Mbit/s
Modulation: 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Supported network protocols: CSMA/CA, ACK

Design

Component for: PC/Laptop
Product colour: Black, White
Antenna: Yes
Antenna design: Internal
Transmitting power (CE): 20 dBm
Transmitting power (FCC): 20 dBm
Feature: WPS push button
Operating modes: Infrastructure mode

Power

Feature: USB powered

System requirements

Mac operating systems supported: Mac OS X 10.15 Catalina
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 86 mm
Depth: 26 mm
Height: 12 mm

Packaging data

Package width: 148 mm
Package depth: 137 mm
Package height: 42 mm
Package weight: 150 g

Packaging content

Cables included: USB
Feature: Resource CD
Feature: Quick installation guide

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 85176990

Other features

Feature: Quick start guide
