TP-Link TL-WN8200ND network card

TP-Link TL-WN8200ND. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). Product colour: Black

What This Product Does

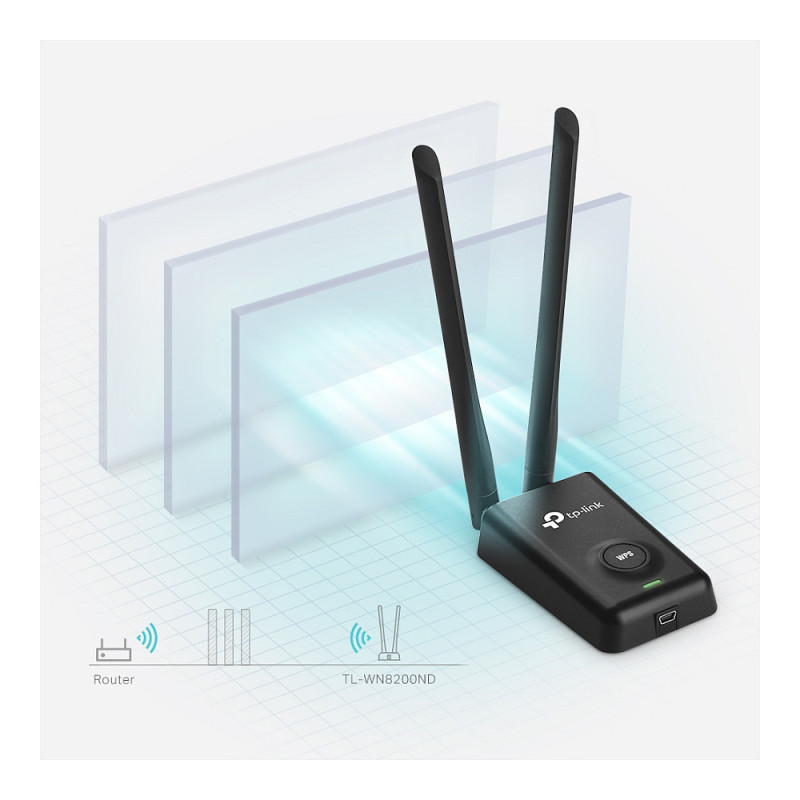

TP-LINK TL-WN8200ND is a 300Mbps high power wireless adapter that allows users to enable their PCs or notebooks with extremely powerful wireless capability to deliver performance enhancements. The adapter adopts high power design which offers up to 10 times the range of conventional adapters. One of the TL-WN8200ND's best features is its stronger penetrability, which can effectively ensure that signal still remains reliable when it passes through multiple walls or floors.

High Receive Sensitivity for Reliable Signal
TL-WN8200ND features its high receive sensitivity, which could let you move further away from the access point while still maintaining the same wireless signal. In this case, using TL-WN8200ND means that you don't have to move the laptop like a divining rod, and you can easily pick up the network with its strong sensitivity.

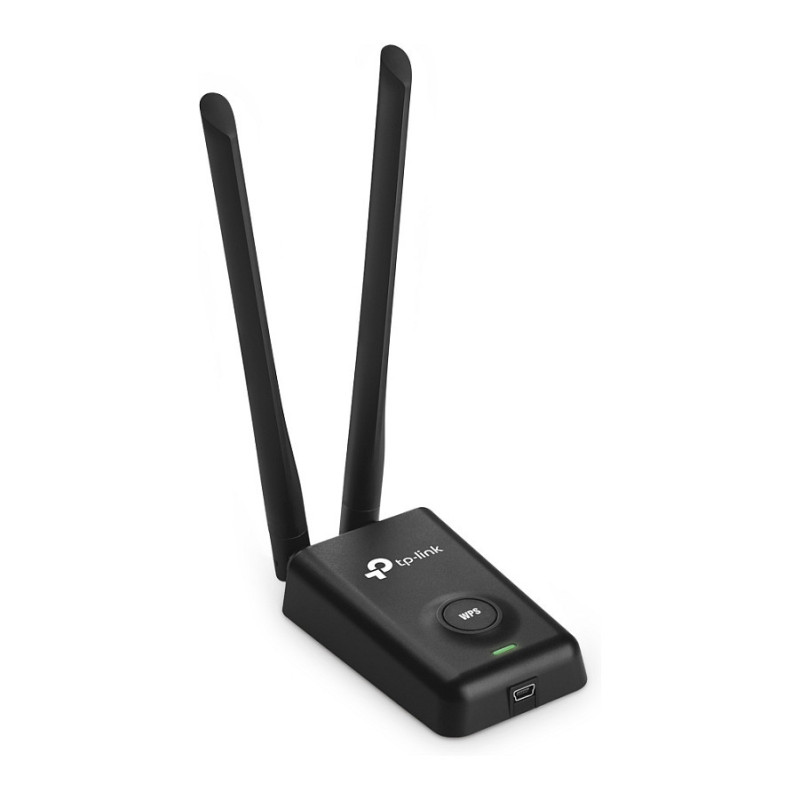

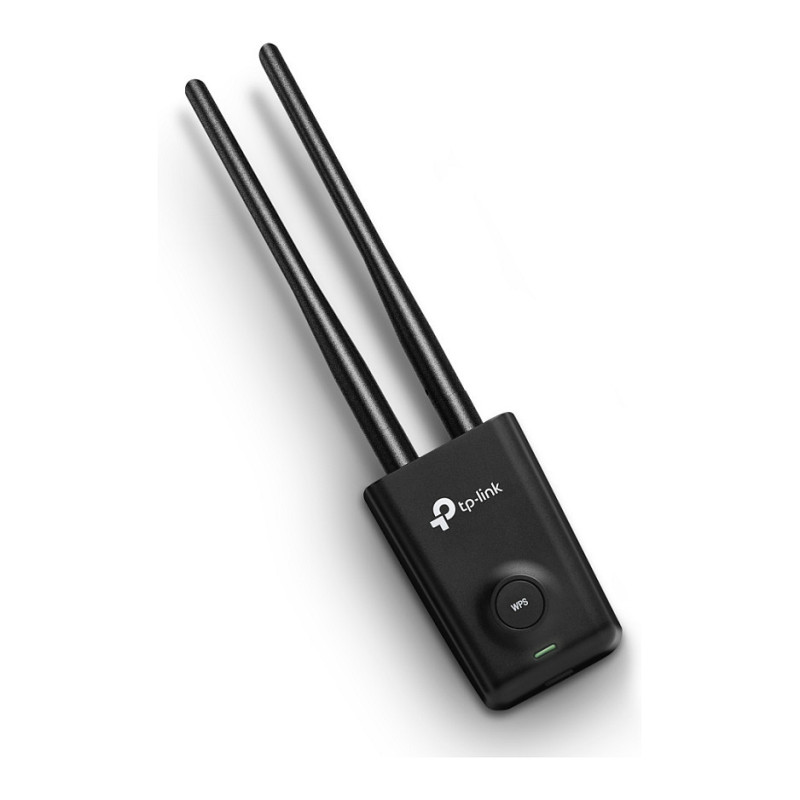

Two 5 dBi External Detachable Antennas
Two high gain external antennas insure stronger transmission and reception capacity. The two detachable antennas can be rotated and adjusted in different directions to fit various operation environments. For even more demanding applications, the antennas can also be replaced with diverse indoor antennas or directional antennas (using standard RP-SMA connector) to show even greater flexibility and wider wireless coverage.

One Button for Security Setup
TL-WN8200ND supports Wi-Fi Protected Setup™ (WPS) that allows users to simply press the "WPS" button on the exterior, instantly establishing a highly secured connection. Not only is it faster than normal security setups but more convenient in that you don't need to remember any password!

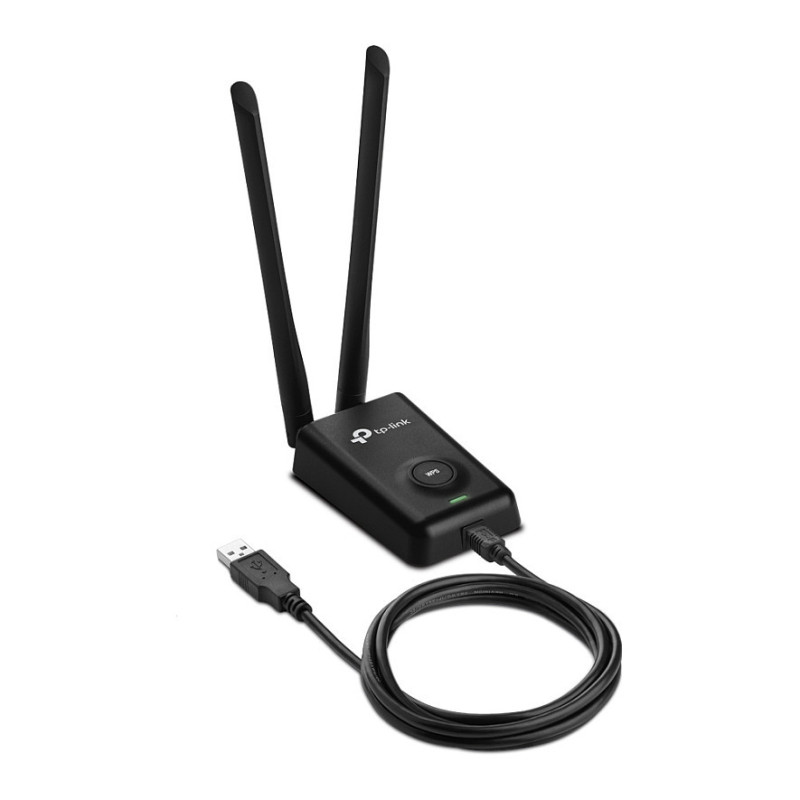

Desktop-Style Design & 1.5m USB Extension Cable
Besides the fashionable and novelty exterior, the desktop-style design is beneficial for the signal reception in various application environments, guaranteeing the smooth and stable signal. And TL-WN8200ND also provides 1.5m USB extension cable, convenient for your installation, even for the desktop equipment.

Bundled CD for Easy Operation
TL-WN8200ND comes with a CD with utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which is convenient for users, even for novice users.

Ports & interfaces

Connectivity technology: Wireless
Host interface: USB
Interface: WLAN

Network

Maximum data transfer rate: 300 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Single-band (2.4 GHz)
Frequency range: 2.4 - 2.4835 GHz
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 150,300 Mbit/s
Security algorithms: 128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS

Design

Product colour: Black
Antenna: Yes
Antenna design: External
Antenna connector type: RP-SMA
Antenna direction type: Omni-directional
Antenna gain level (max): 5 dBi
Transmitting power (CE): 20 dBm
Transmitting power (FCC): 27 dBm
Feature: WPS push button
LED indicators: Yes
Operating modes: Infrastructure mode

System requirements

Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 90.8 mm
Depth: 60.8 mm
Height: 24.5 mm

Packaging data

Package width: 200 mm
Package depth: 150 mm
Package height: 39 mm
Package weight: 250 g

Packaging content

Cables included: USB
Feature: Resource CD
Feature: Quick installation guide

Technical details

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 85176990
