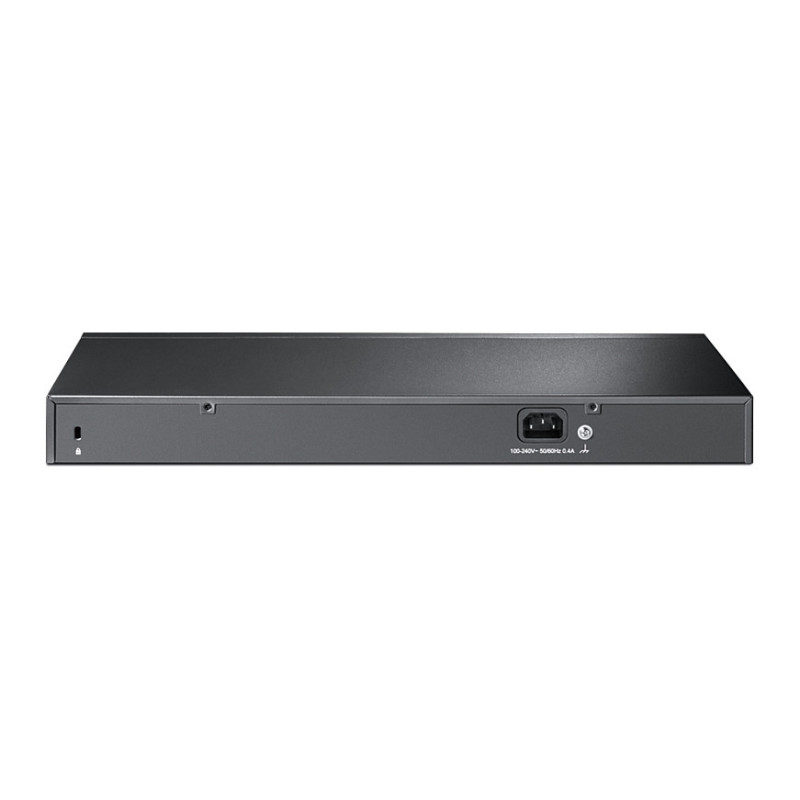

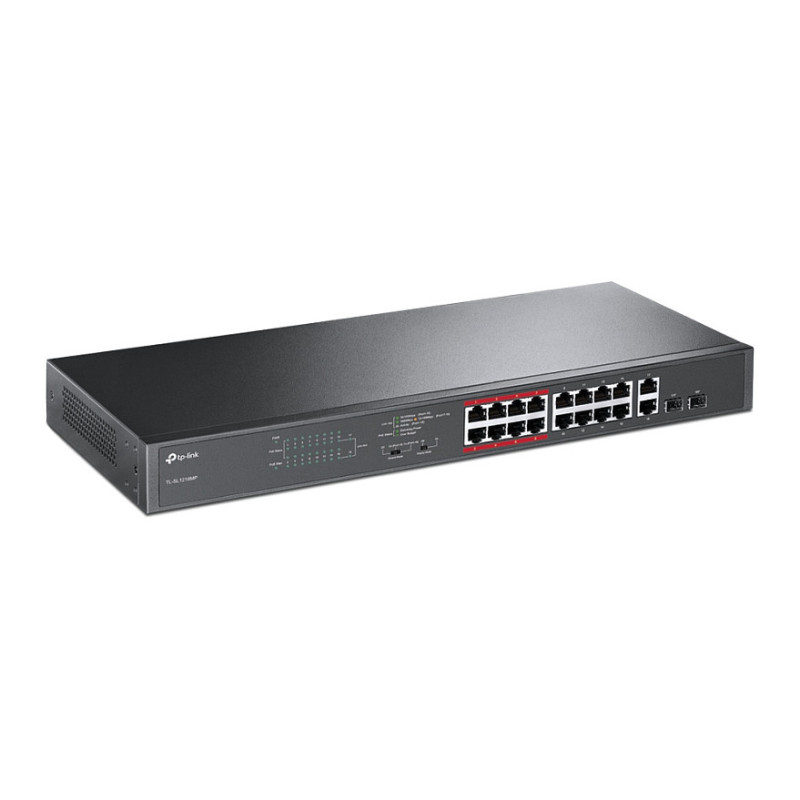

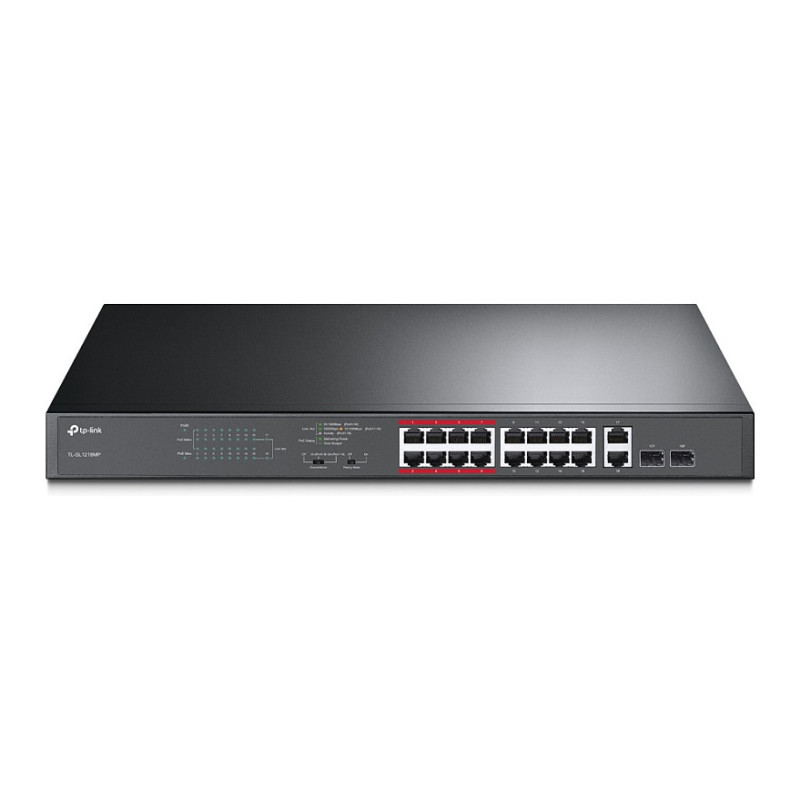

TP-Link TL-SL1218MP network switch

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 7.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting

Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 16
Gigabit Ethernet (copper) ports quantity: 2
Combo SFP ports quantity: 2

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Flow control support
Feature: Auto MDI/MDI-X

Data transmission

Switching capacity: 7.2 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 4.1 MB

Security

Feature: MAC address filtering

Design

Feature: Rack mounting
Product colour: Black
LED indicators: LAN, PoE, Status
Number of fans: 2 fan(s)

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 18.7 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 16
Total Power over Ethernet (PoE) budget: 192 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 741.15 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Cables included: LAN (RJ-45)
Feature: Quick start guide
Feature: User guide
Feature: Manual

Logistics data

Harmonized System (HS) code: 85176990
