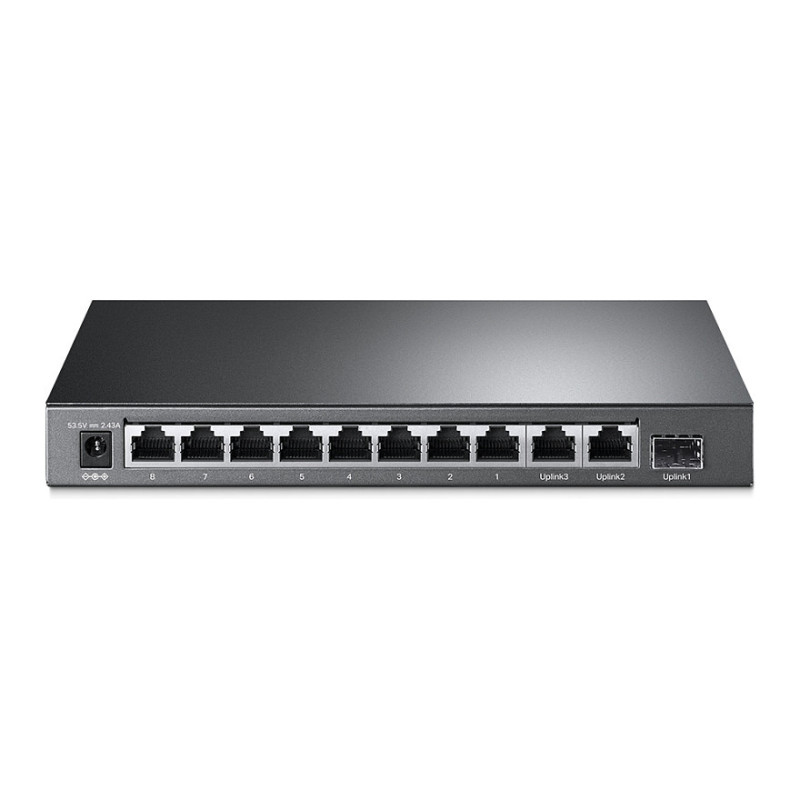

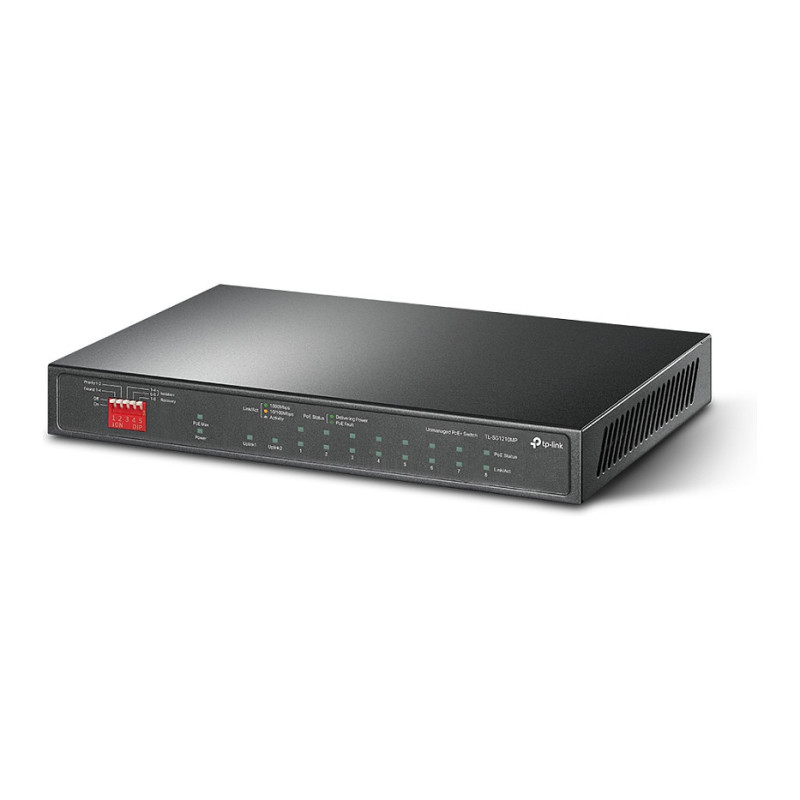

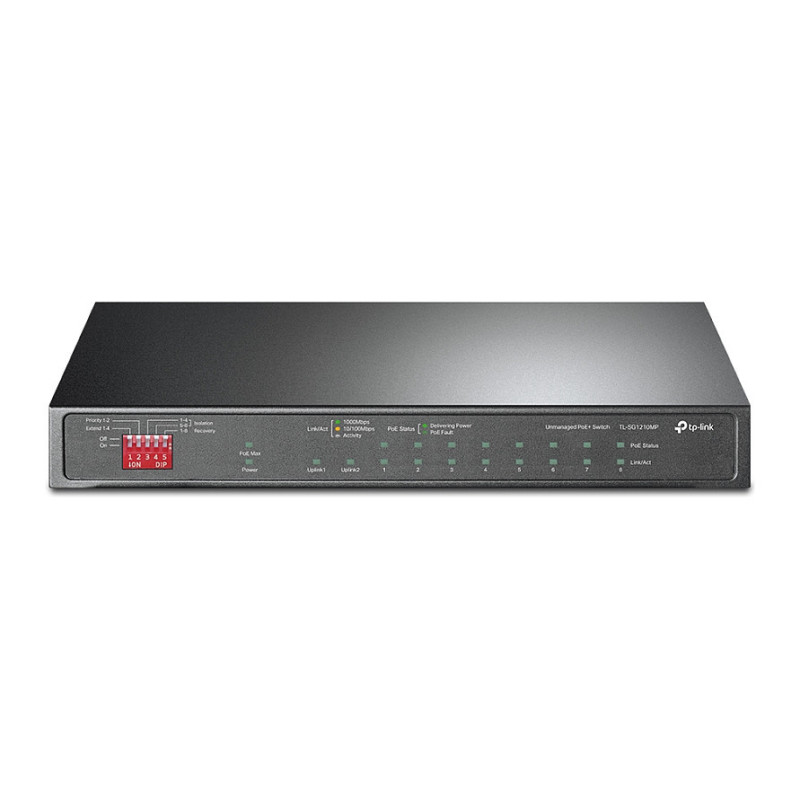

TP-Link TL-SG1210MP network switch

TP-Link TL-SG1210MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)

Management features

Switch type: Unmanaged

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 9
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 1

Network

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 20 Gbit/s
MAC address table: 4000 entries
Feature: Store-and-forward
Packet buffer memory: 14.88 MB

Design

Product colour: Black
LED indicators: Yes

Performance

Feature: Fanless

Power

Power source: DC
Input current: 2.43 A
Input voltage: 53.5 V
Power consumption (max): 141.4 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 123 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 482.17 BTU/h

Weight dimensions

Width: 209 mm
Depth: 126 mm
Height: 26 mm

Packaging content

Feature: Quick start guide

Packaging data

Package width: 240 mm
Package depth: 315 mm
Package height: 70 mm
Package weight: 1.41 kg

Certificates

Certification: CE, FCC

Logistics data

Harmonized System (HS) code: 85176990
