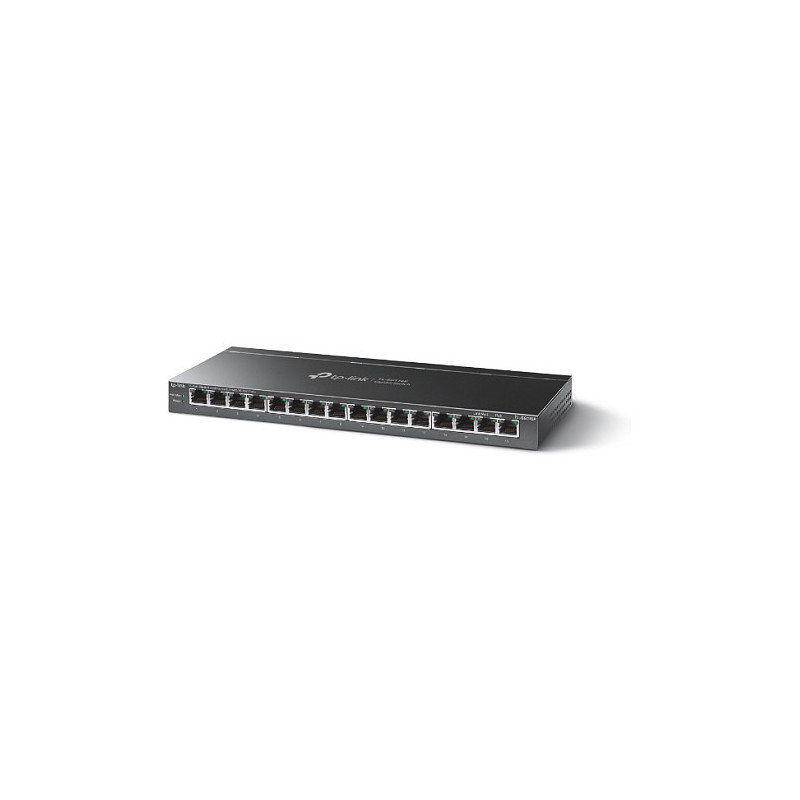

TP-Link TL-SG116P network switch

TP-Link 16-Port Gigabit Desktop Switch with 16-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 9 V. Power over Ethernet (PoE). Wall mountable

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Cable length detection
Feature: VLAN support
Virtual LAN features: Protocol-based VLAN, Tagged VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 32 Gbit/s
Forwarding rate: 23.81 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Number of queues: 4
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

Feature: IGMP snooping
Feature: Loop protection

Design

Feature: Stackable
Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Wall mountable

Power

Feature: Power supply included
AC input voltage: 220 V
AC input frequency: 50 Hz
DC input voltage: 9 V
Input current: 0.6 A
Power consumption (typical): 11.72 W
Power consumption (max): 144.28 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 490.55 BTU/h

Weight & dimensions

Width: 286 mm
Depth: 111.7 mm
Height: 25.4 mm

Packaging content

Feature: Quick start guide

Packaging data

Package width: 227 mm
Package depth: 434 mm
Package height: 70 mm
Package weight: 2 kg
