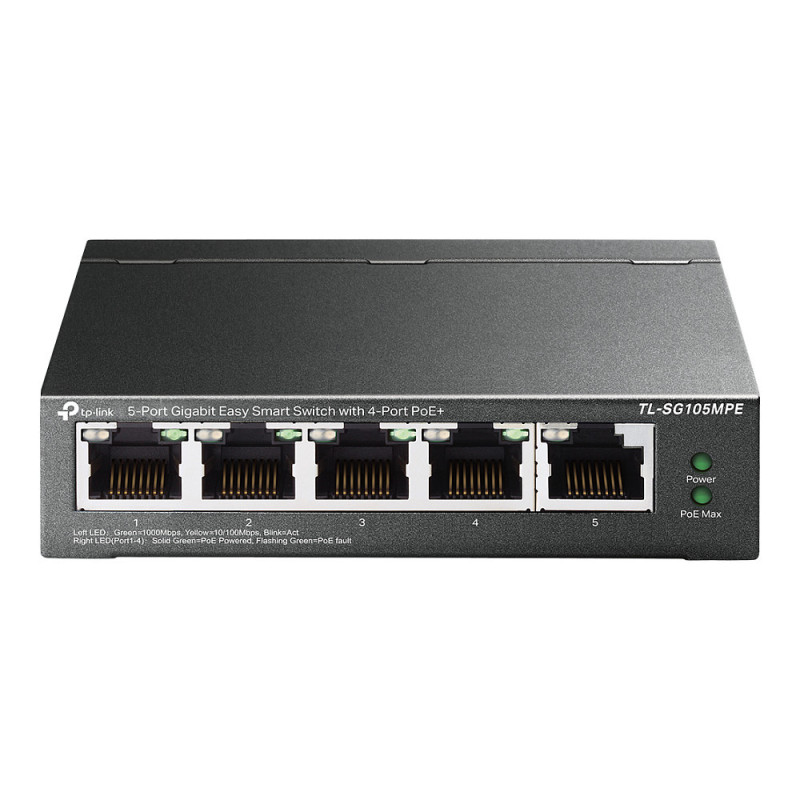

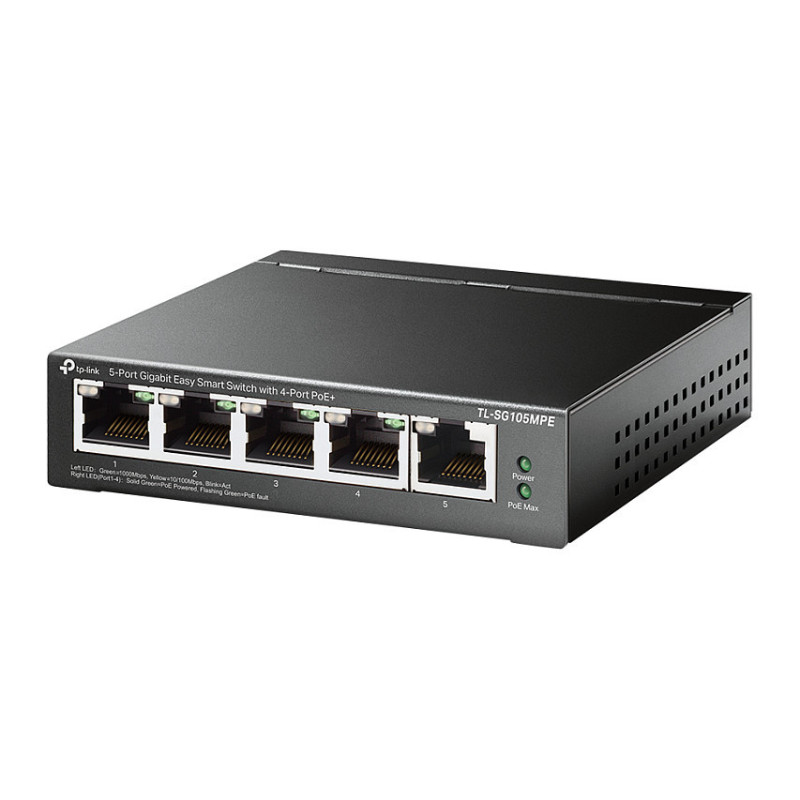

TP-Link TL-SG105MPE network switch

TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE.... DC input voltage: 53.5 V. Power over Ethernet (PoE)

Management features

Switch layer: L2
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Feature: Port mirroring
Feature: Broadcast storm control
Feature: Rate limiting

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 16

Security

Feature: IGMP snooping
Feature: Loop protection

Design

Product colour: Black

Power

Power source: DC/PoE
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC input voltage: 53.5 V
Power consumption (max): 137.01 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 99.8 mm
Depth: 98 mm
Height: 25 mm

Packaging content

Cables included: LAN (RJ-45)

Packaging data

Package width: 250 mm
Package depth: 528 mm
Package height: 80 mm
Package weight: 2.76 kg
