TP-Link TL-SG105-M2 network switch

TP-Link 5-Port 2.5G Desktop Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 16000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Upgrade to a Super-Fast, Futuristic Network
5/8-Port 2.5G Desktop Switch
TL-SG105-M2/ TL-SG108-M2

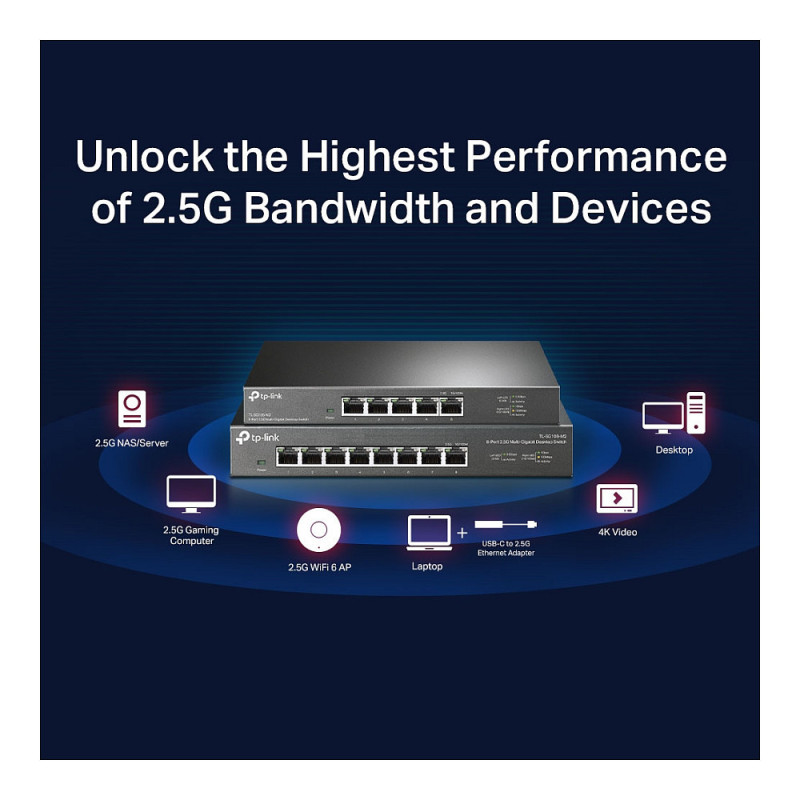

Unlock the Highest Performance of
2.5G Multi-Gig Bandwidth and Devices
As the flagship 2.5G products, the 5/8-Port desktop switches with 5/8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25/40 Gbps of switching capacity. Auto-negotiation 3-speed (100Mb/1G/2.5G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, 2.5G WiFi 6 AP, 4K video, desktop, and more.
Powerful Performance for Smooth LAN Parties
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let's begin the unprecedented smooth game!
Ideal for Small and Home Office
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.

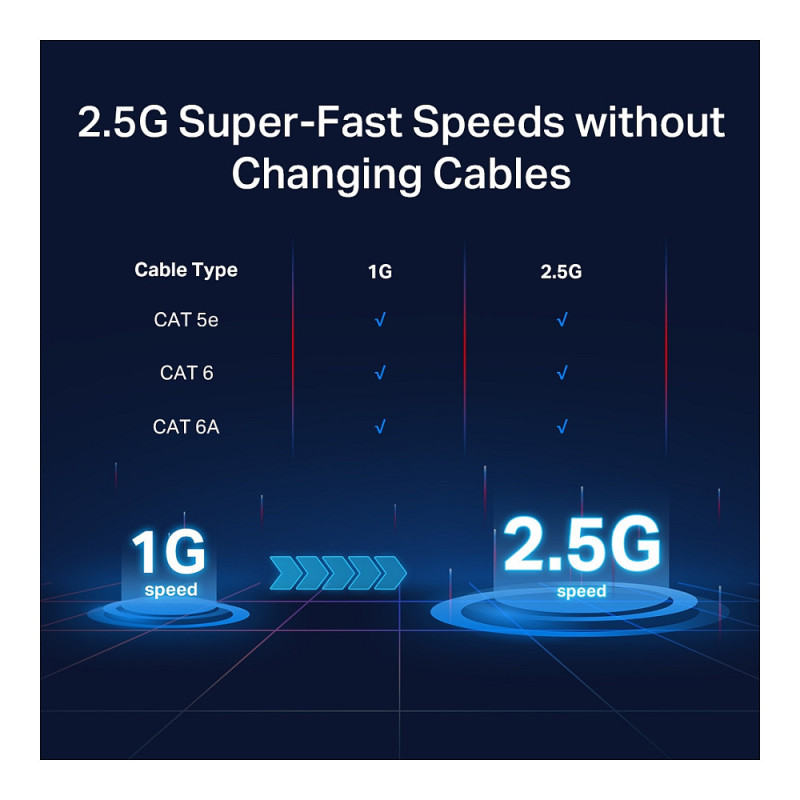

2.5G Super-Fast Speeds
without Changing Cables
Flawlessly integrated into existing gigabit Ethernet network infrastructures, 2.5× faster speeds* with regular Cat5e Ethernet cables, without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.

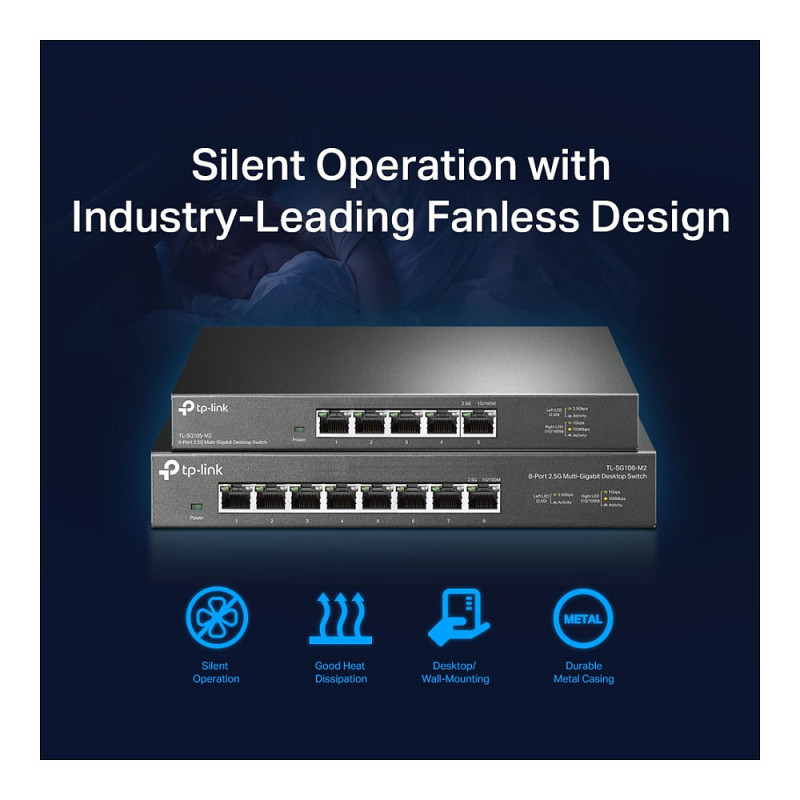

Silent Operation with
Industry-Leading Fanless Design
The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business. Durable metal casing, desktop/wall-mounting design and professional heat dissipation design are well-suited for different environments.
Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.

Management features

Switch type: Unmanaged

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 5

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Auto-negotiation: Yes

Data transmission

Switching capacity: 25 Gbit/s
Forwarding rate: 18.6 Mpps
MAC address table: 16000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 10000
Packet buffer memory: 1.5 MB

Design

Rack mounting: No
Product colour: Black
LED indicators: Yes

Power

Power source: DC
Power supply included: Yes
Input current: 1 A
Input voltage: 12 V
Power consumption (max): 12.11 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 41.32 BTU/h

Weight dimensions

Width: 209 mm
Depth: 126 mm
Height: 26 mm

Packaging content

Cables included: LAN (RJ-45)
Quick start guide: Yes

Packaging data

Package width: 240 mm
Package depth: 315 mm
Package height: 70 mm
Package weight: 920 g

Certificates

Certification: CE, FCC,RoHS

Logistics data

Harmonized System (HS) code: 85176990
