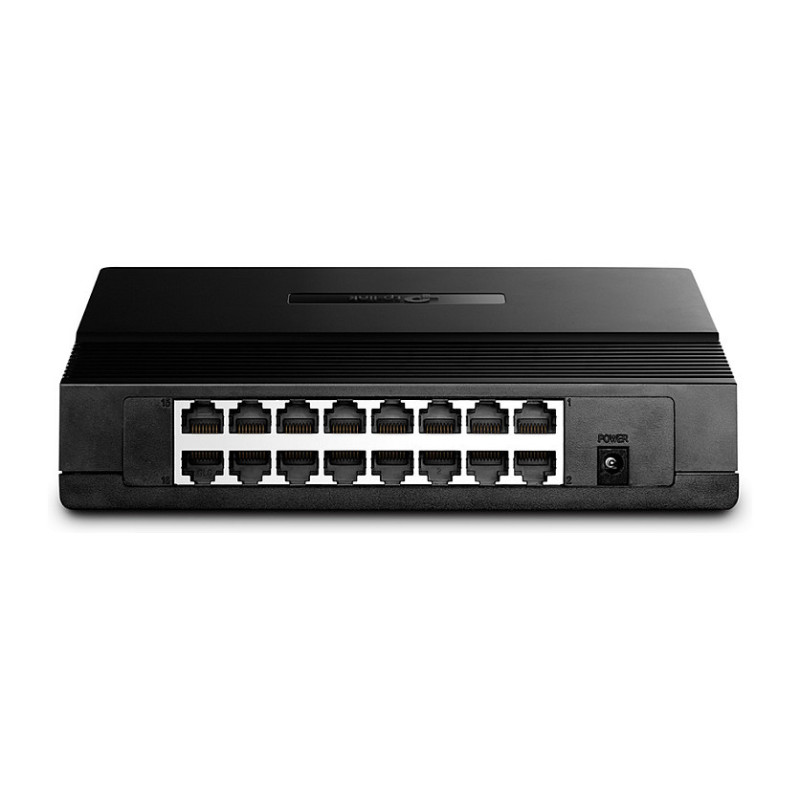

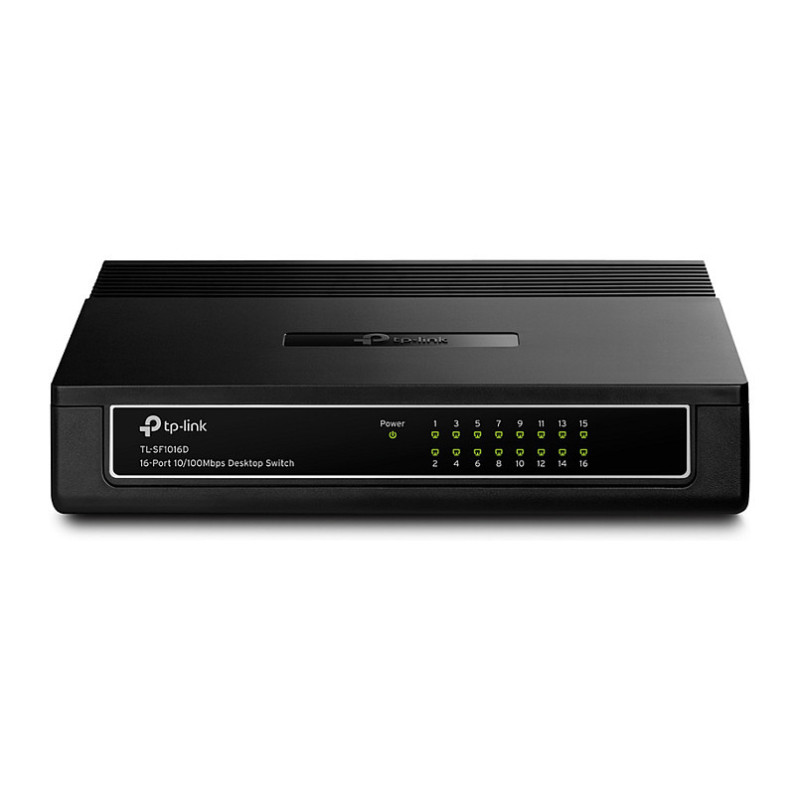

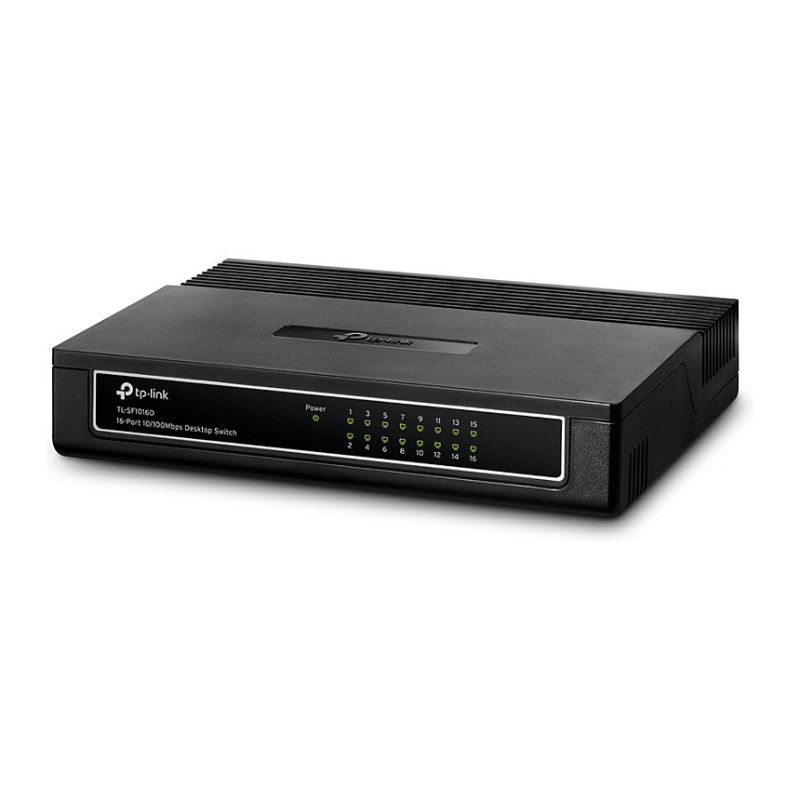

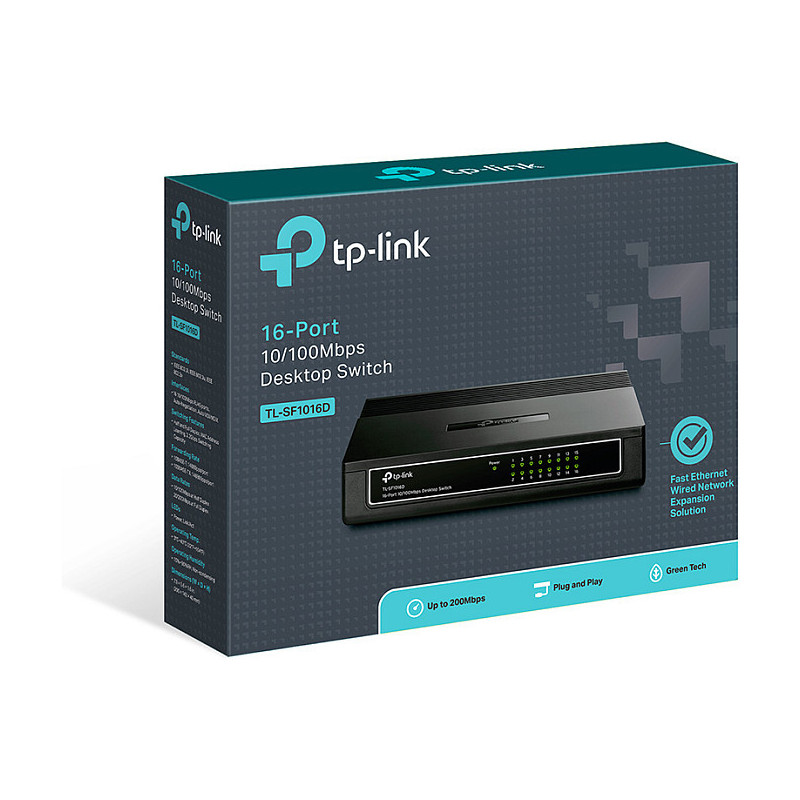

TP-Link TL-SF1016D network switch

TP-Link TL-SF1016D. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting

What This Product Does
The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 70%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Feature: Auto MDI/MDI-X

Data transmission

Switching capacity: 3.2 Gbit/s
Throughput: 2.38 Mpps
MAC address table: 8000 entries
Packet buffer memory: 2 MB

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Yes

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 2.23 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 294 mm
Depth: 180 mm
Height: 44 mm

Certificates

Certification: FCC, CE, RoHS

Logistics data

Harmonized System (HS) code: 85176990
