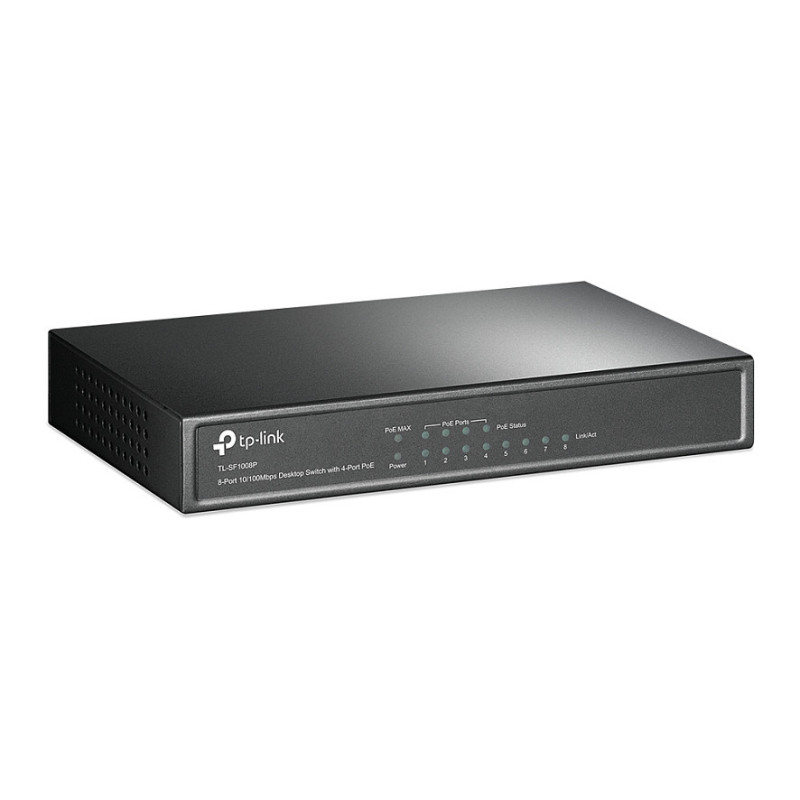

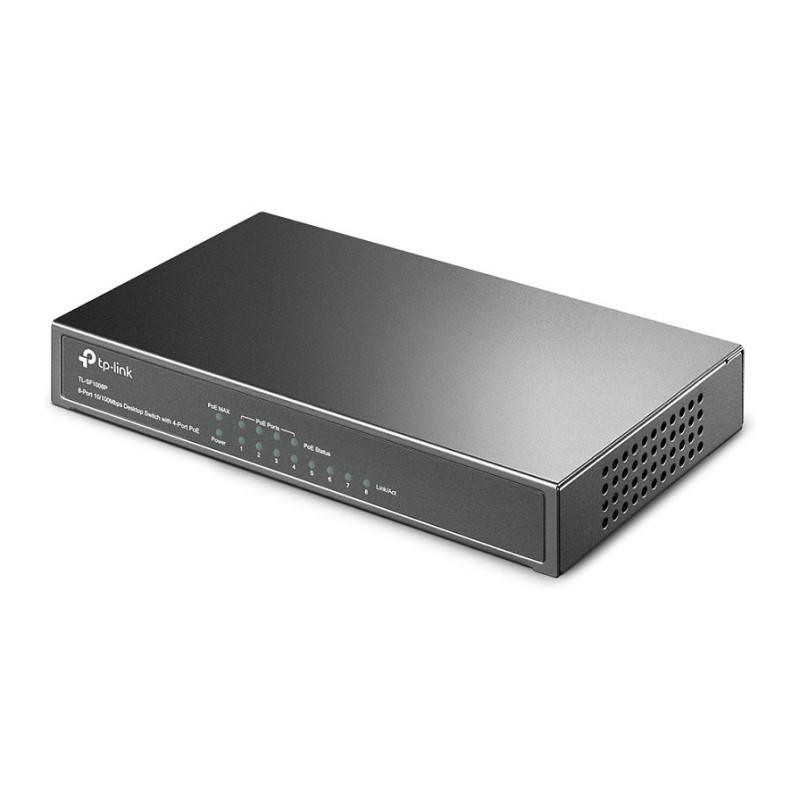

Tp-Link TL-SF1008P

TP-Link 8-Port 10/100Mbps Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
What This Product Does
TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet

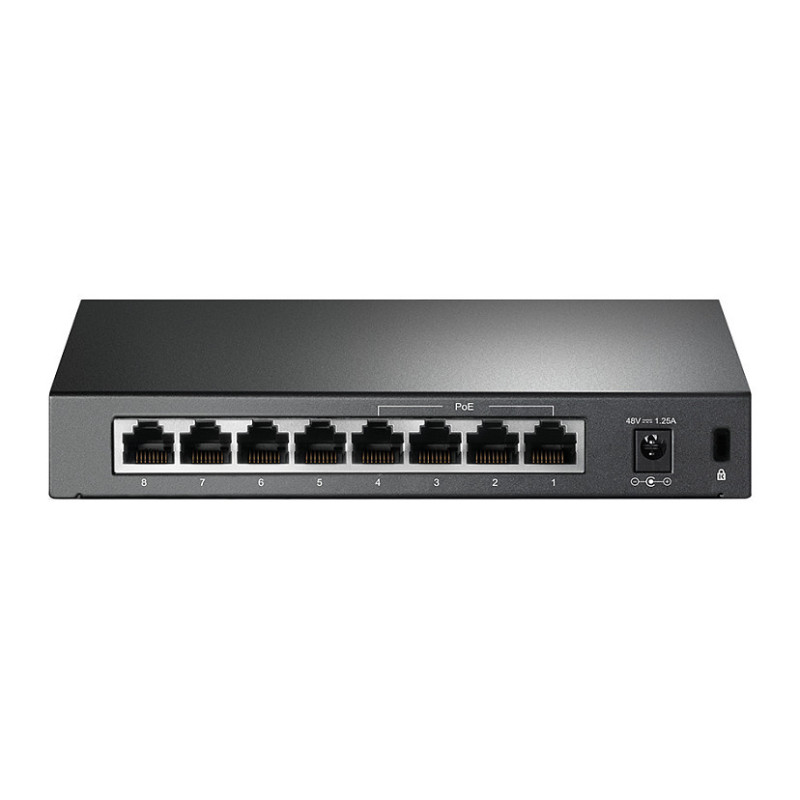

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
-Overload Arrangement
TL-SF1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is gt; = 57W, a priority will be arranged among the PoE ports, then the system will cut o- the power of the lowest-priority port.
-Port Priority Function
Priority (port-1=port-2=port-3> port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 57W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.

Easy To Use
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK's TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.

Management features

Switch type: Unmanaged

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 8
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10GBASE-T, 100BASE-TX
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 1.6 Gbit/s
Forwarding rate: 1.1904 Mpps
MAC address table: 2000 entries
Feature: Store-and-forward

Protocols

IPv4 IPv6 features: IPv6 portal

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Wall mountable

Performance

Feature: Fanless

Power

Power source: DC/PoE
AC input voltage: 220 V
AC input frequency: 50 Hz
DC input voltage: 53.5 V
Input current: 1.31 A
Power consumption (max): 66 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 57 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 248.93 BTU/h

Weight dimensions

Width: 171 mm
Depth: 98 mm
Height: 27 mm

Packaging content

Feature: User guide

Packaging data

Feature: AC adapter included
Package type: Box
Package width: 223 mm
Package depth: 280 mm
Package height: 68 mm
Package weight: 980 g

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 85176990
