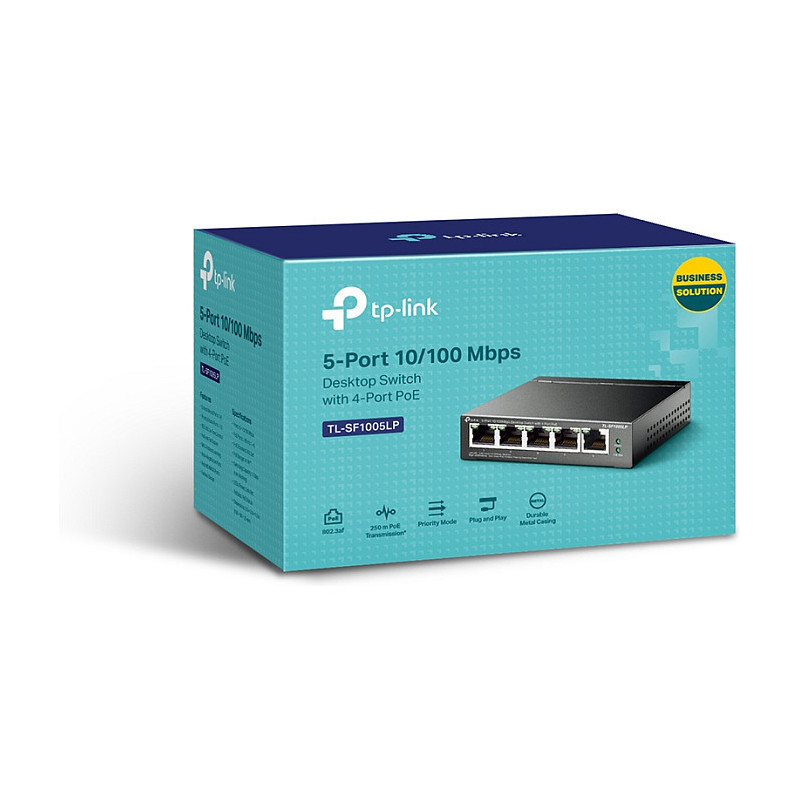

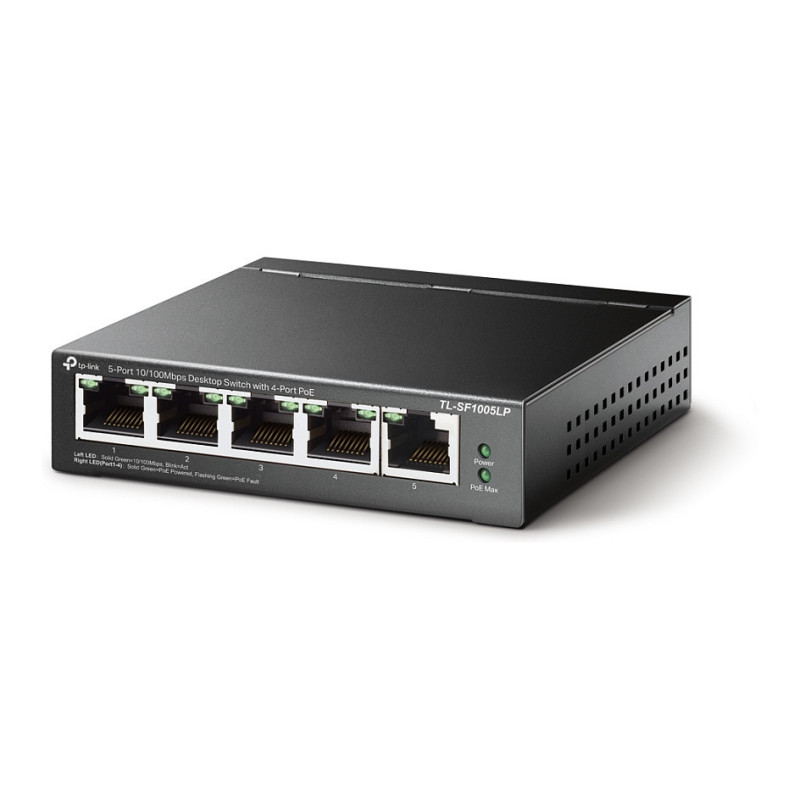

TP-Link TL-SF1005LP network switch

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
TL-SF1005LP
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

Management features

Switch type: Unmanaged

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Network

Networking standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Cable types supported: Cat3, Cat4, Cat5, Cat5e
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 0.744 Mpps
MAC address table: 2000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 2000

Design

Product colour: Black
LED indicators: Yes

Performance

Feature: Fanless

Power

Power source: DC/PoE
Feature: Power supply included
AC input voltage: 220 V
AC input frequency: 50 Hz
Input current: 0.81 A
Input voltage: 53.5 V
Power consumption (max): 47 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Total Power over Ethernet (PoE) budget: 41 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 160.27 BTU/h

Weight dimensions

Width: 100 mm
Depth: 98 mm
Height: 25 mm

Packaging content

Feature: User guide

Packaging data

Feature: AC adapter included
Package width: 131 mm
Package depth: 196 mm
Package height: 121 mm
Package weight: 740 g

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 85176990
