TP-LINK TL-SF1005D

TP-Link TL-SF1005D. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack

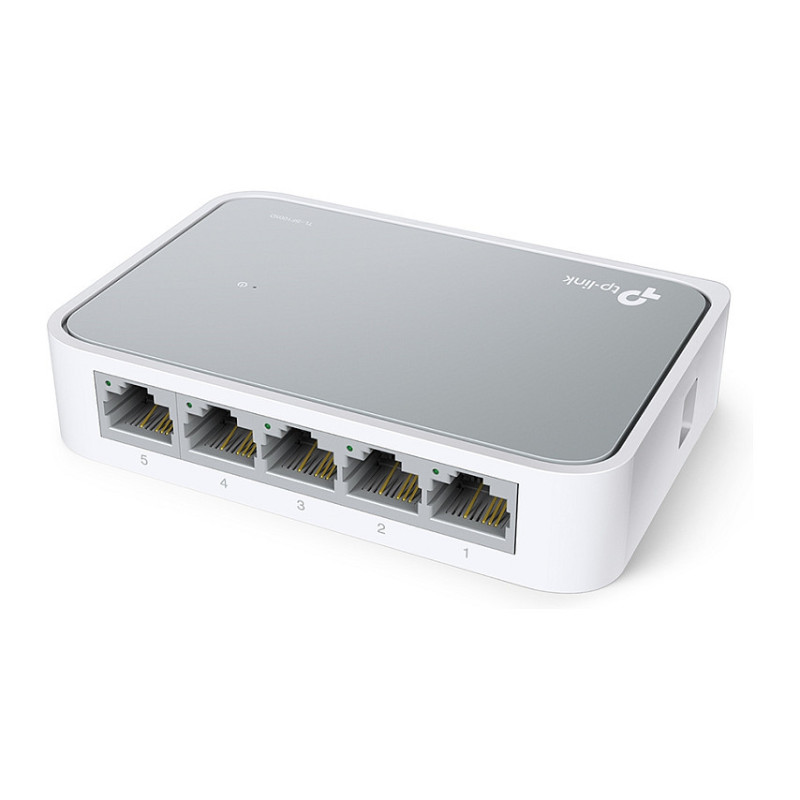

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.

High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.

Management features

Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 5
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-T
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Auto-negotiation

Data transmission

Switching capacity: 1.6 Gbit/s
MAC address table: 1000 entries
Feature: Store-and-forward

Protocols

Supported network protocols: CSMA/CD, TCP/IP

Design

Product colour: White
LED indicators: Yes

Performance

Feature: Fanless

Power

Power source: DC
AC input voltage: 220 V
AC input frequency: 50 Hz
DC input voltage: 5 V
Input current: 0.6 A
Power consumption (typical): 1.87 W
Power consumption (max): 1.87 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 6.38 BTU/h

Weight & dimensions

Width: 103.5 mm
Depth: 70 mm
Height: 22 mm

Packaging content

Cables included: AC
Feature: User guide

Packaging data

Feature: AC adapter included
Package type: Box
Package width: 91 mm
Package depth: 108 mm
Package height: 85 mm
Package weight: 200 g

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Certification: FCC, RoHs
