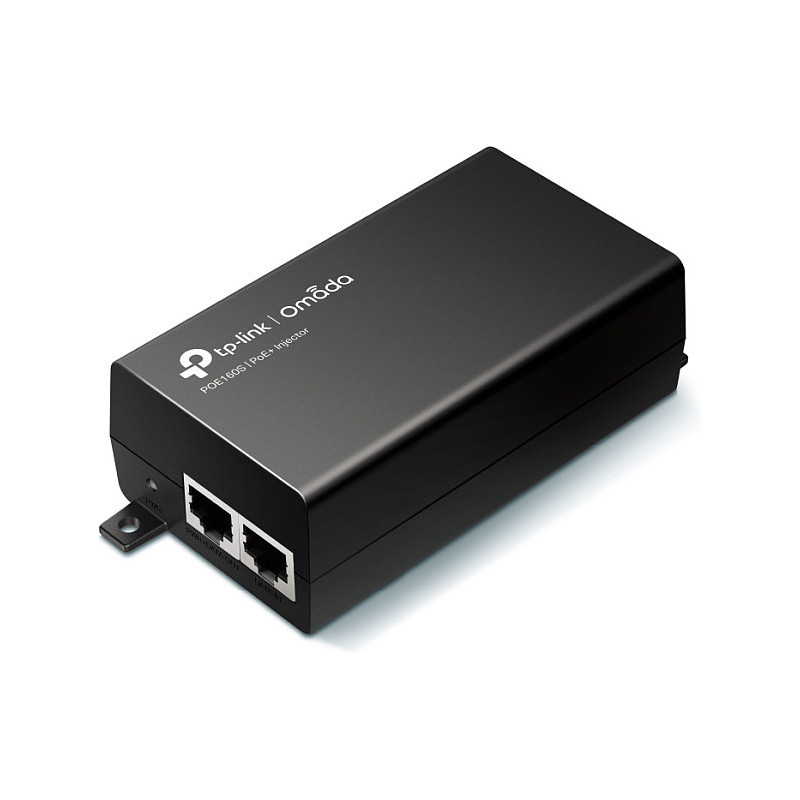

TP-Link TL-POE160S PoE adapter

TP-Link PoE+ Injector. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Maximum operating distance: 100 m, LED indicators: Power. Output power: 30 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Certification: FCC, CE, RoHS. Width: 125 mm, Depth: 59.4 mm, Height: 36.8 mm

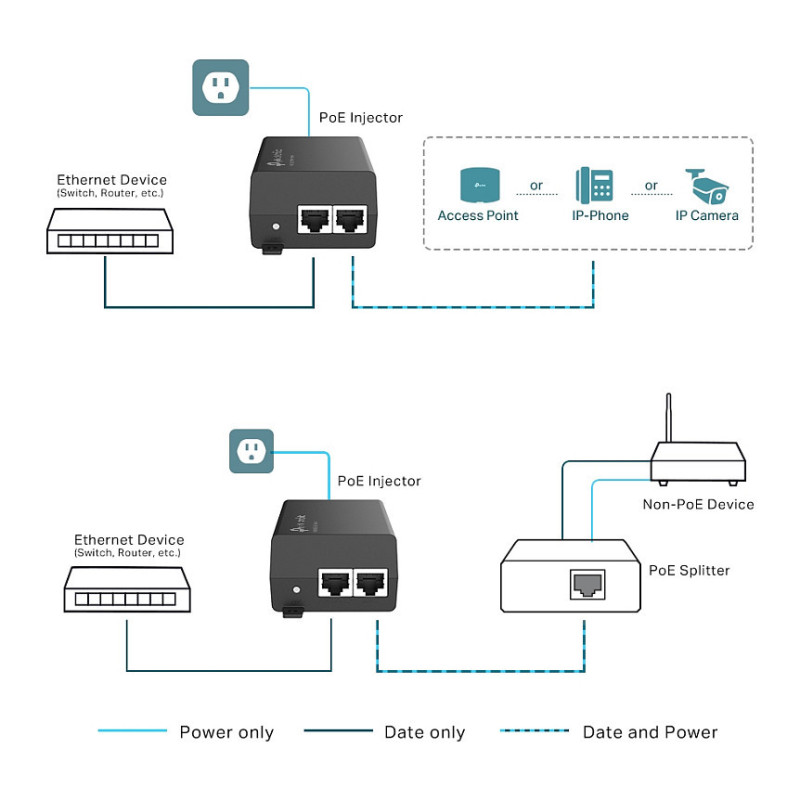

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000
Power over Ethernet (PoE): Yes
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Cable types supported: Cat3, Cat4, Cat5, Cat5e

Features

Product colour: Black

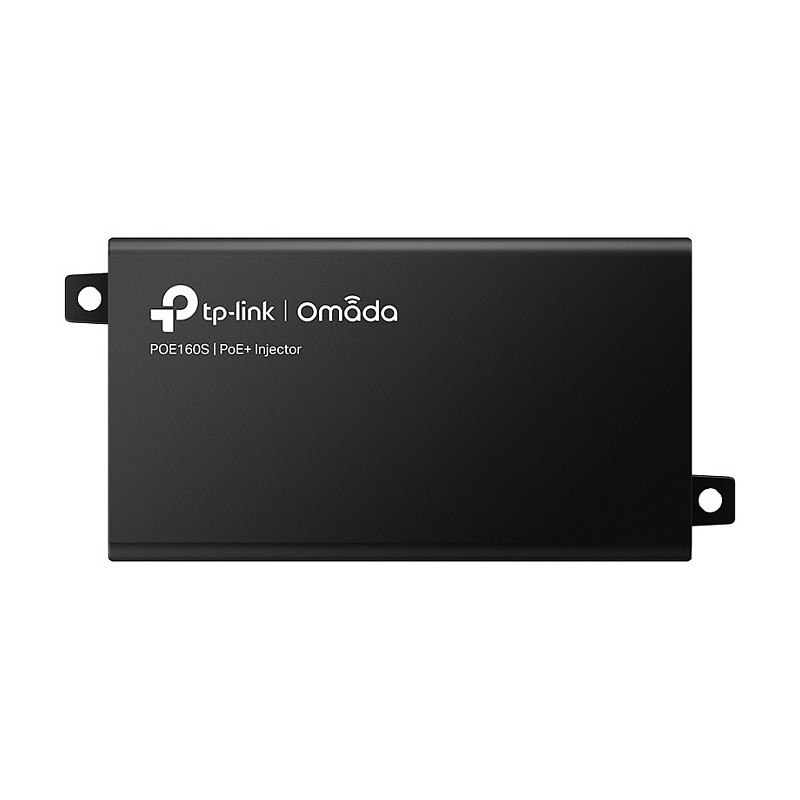

Wall mountable: Yes
Plug and Play: Yes
Maximum operating distance: 100 m
LED indicators: Power

Ports interfaces

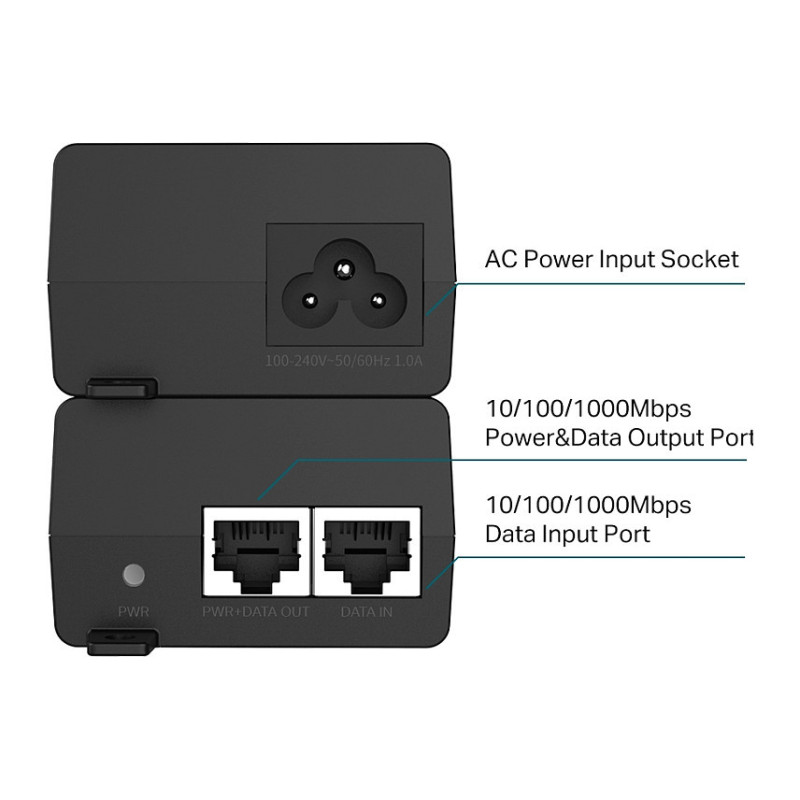

Ethernet LAN (RJ-45) ports: 2
RJ-45 input ports: 1
RJ-45 output ports: 1

Power

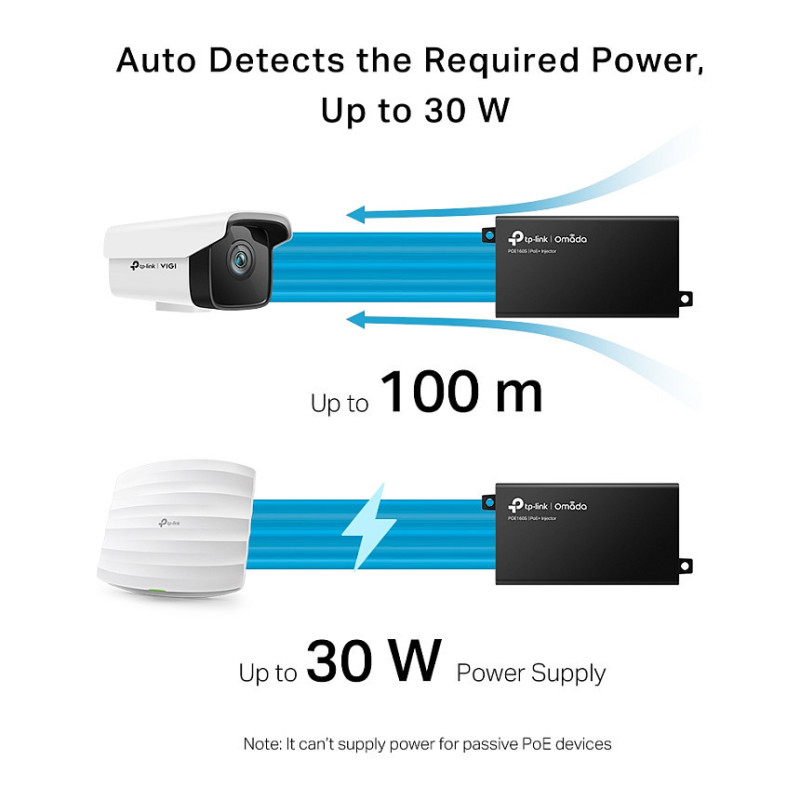

Output power: 30 W
AC adapter input voltage: 100 - 240 V
AC adapter frequency: 50/60 Hz

Certificates

Certification: FCC, CE, RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Width: 125 mm
Depth: 59.4 mm
Height: 36.8 mm

Packaging content

Number of products included: 1 pc(s)
Wall mounting kit: Yes
Power cord included: Yes
Quick installation guide: Yes
Packaging content: TL-POE160S, power cord, RJ45 cable, installation guide, wall-mounting kits

Packaging data

Package width: 170 mm
Package depth: 230 mm
Package height: 80 mm
Package weight: 460 g
Package type: Box

Logistics data

Harmonized System (HS) code: 85044095
