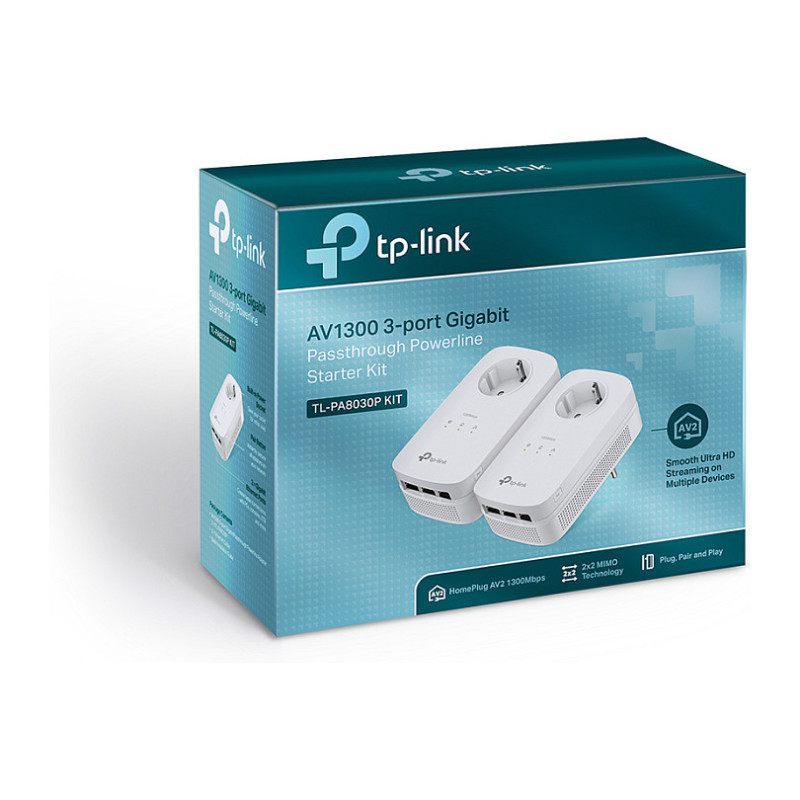

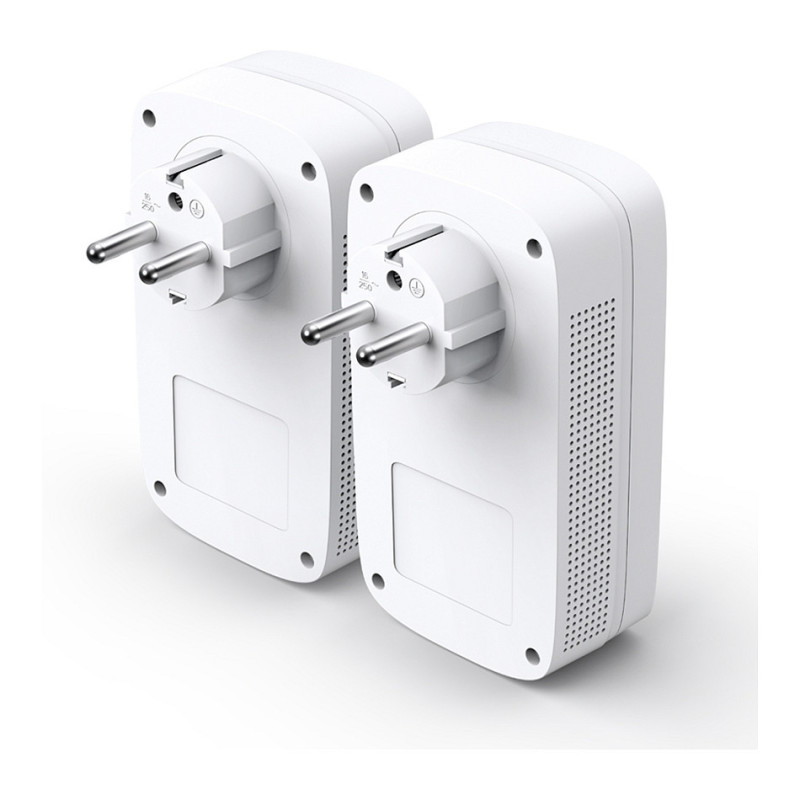

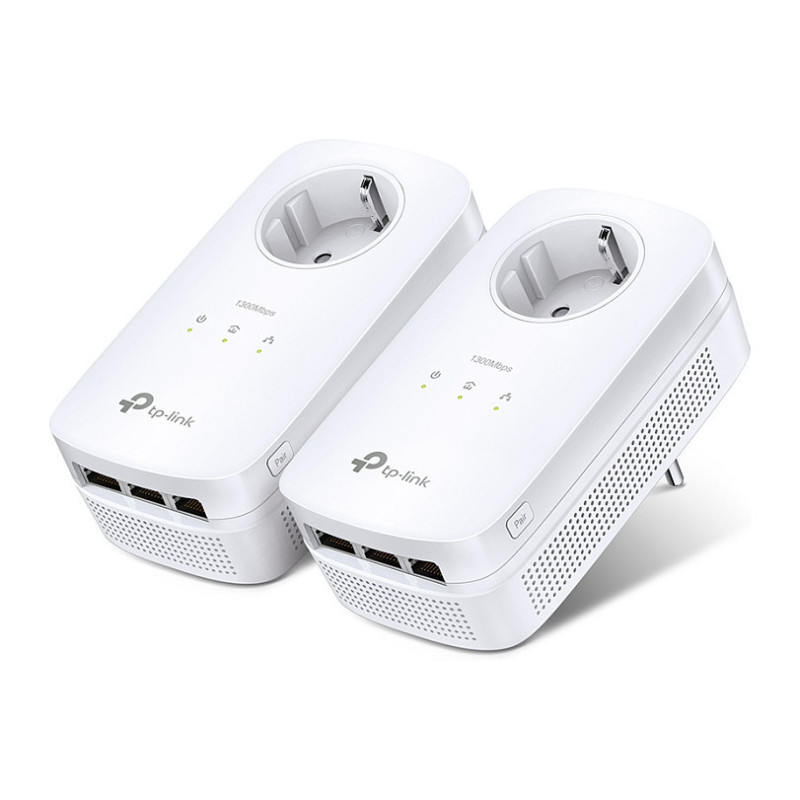

TP-Link TL-PA8030P KIT PowerLine network adapter

TP-Link TL-PA8030P KIT. Maximum data transfer rate: 1200 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Ethernet LAN interface type: Gigabit Ethernet. Power consumption (typical): 5.32 W, Power consumption (standby): 1.36 W, Current: 16 A. Product colour: White, Certification: FCC. Width: 71 mm, Depth: 42 mm, Height: 131 mm. Compliance certificates: RoHS

Perfect for Bandwidth Demanding Activities

The TL-PA8030P KIT utilizes MIMO technology and Powerline Beamforming to expand coverage throughout the home. Ideal for bandwidth demanding activities like 4K Ultra-HD streaming, online gaming and large file transferring.

2 x 2 MIMO with Beamforming

Wider Coverage

MIMO technology with Beamforming maximizes the performance on each independent stream to improve coverage throughout the home, particularly for previously hard to reach outlets.

Higher Transmission Capacity with More Stability

MIMO transmits two independent data streams on three wire pairs, live, neutral and ground increasing total throughput. Powerline Beamforming optimizes overall performance and reduces interference to maximize data transfer rates.

3 Gigabit Ports for Maximum Connectivity

The TL-PA8030P KIT transmits data over gigabit Ethernet ports, creating secure wired networks for true gigabit-class broadband speeds. This makes the TL-PA8030P KIT well suited for audio and video streaming, online gaming, multi-room IPTV and other high-demand networking uses. It also provides five extra Gigabit ports so users simultaneously connect wired devices like smart TVs, media streaming devices, game consoles, external hard drives, or desktop computers to ensure maximum connectivity.

Plug and Play

Users can get their powerline network up and running by plugging the Powerline adapters into any available power outlet, eliminating the need for time-consuming and expensive renovations previously required to establish a whole-home or office wired Ethernet network.

Save Power Outlets for Other Uses

No longer will you need to sacrifice a power outlet for your Powerline devices. The TL-PA8030P KIT features an integrated power outlet with output of up to 16A*, so users can safely plug their high-power electrical appliances directly into the front of the Powerline unit. The built-in noise filter blocks out electrical signals and other noise, preventing any performance interference from external devices.

Conserve Power by Up to 85%

Its sophisticated Power-Saving mode automatically switches from regular "Working" mode to "Power-Saving" mode when no data activity is being transferred on the Ethernet cable, greatly reducing energy consumption by up to 85%.

Performance

Maximum data transfer rate: 1200 Mbit/s
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN (RJ-45) ports: 3
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Built-in power socket
PowerLine standard: HomePlug AV2
Modulation: OFDM
Security algorithms: 128-bit AES
Maximum operating distance: 300 m
Feature: Encryption button
Feature: MIMO
Feature: Quality of Service (QoS) support
Feature: Plug and Play

Power

Power consumption (typical): 5.32 W
Power consumption (standby): 1.36 W
Current: 16 A

Design

LED indicators: Yes
Product colour: White
Certification: FCC

System requirements

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Feature: Mac compatibility
Mac operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 71 mm
Depth: 42 mm
Height: 131 mm

Certificates

Compliance certificates: RoHS

Packaging data

Package width: 230 mm
Package depth: 190 mm
Package height: 100 mm
Package weight: 900 g

Packaging content

Quantity per pack: 2 pc(s)
Feature: Quick installation guide
Cables included: LAN (RJ-45)
