TP-Link TG-3468

TP-Link TG-3468. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product colour: Green, Grey

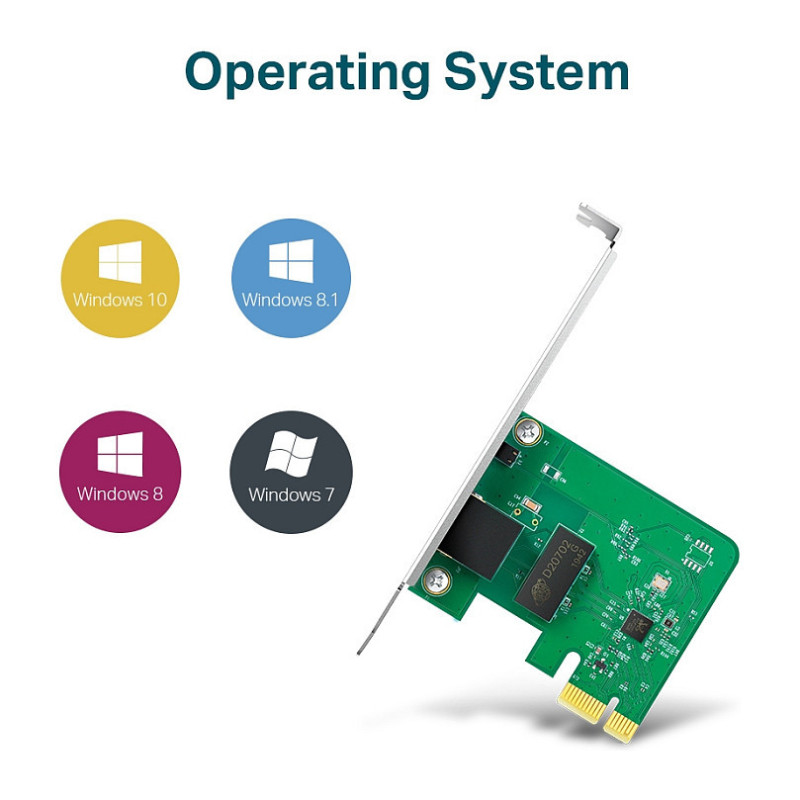

Operating System

Supports operating systems include Windows 10/8.1/8/7/Vista/XP

Low-Profile Bracket

In addition to standard bracket, low-profile bracket is also provided for mini tower computer case

Wake On LAN

Remotely power on/off your computer with WOL, good for centralized management

Ports & interfaces

Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1

Network

Maximum data transfer rate: 2000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Auto-negotiation
Feature: Quality of Service (QoS) support
Feature: VLAN tagging
Maximum operating distance: 100 m

Design

Component for: PC
Product colour: Green, Grey
Feature: Internal
LED indicators: Status
Certification: FCC, BSMI, VCCI

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 78.5 mm
Depth: 120.8 mm
Height: 21.5 mm

Packaging data

Package width: 160 mm
Package depth: 135 mm
Package height: 30 mm
Package weight: 100 g

Packaging content

Feature: Mounting brackets included
Feature: Resource CD
Feature: Quick installation guide

Technical details

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 85176990

Other features

Feature: Flow control support
