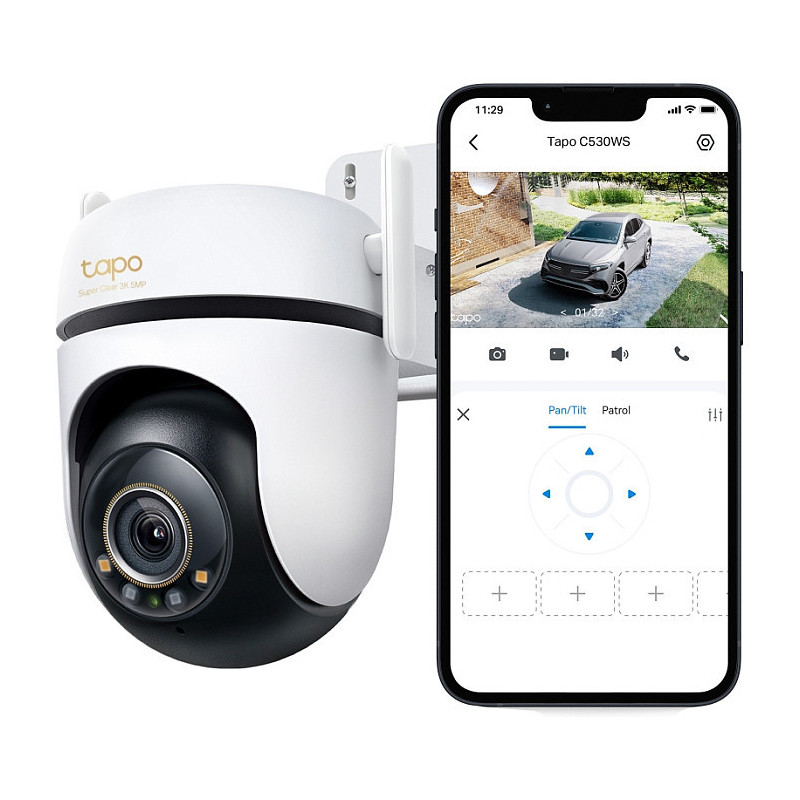

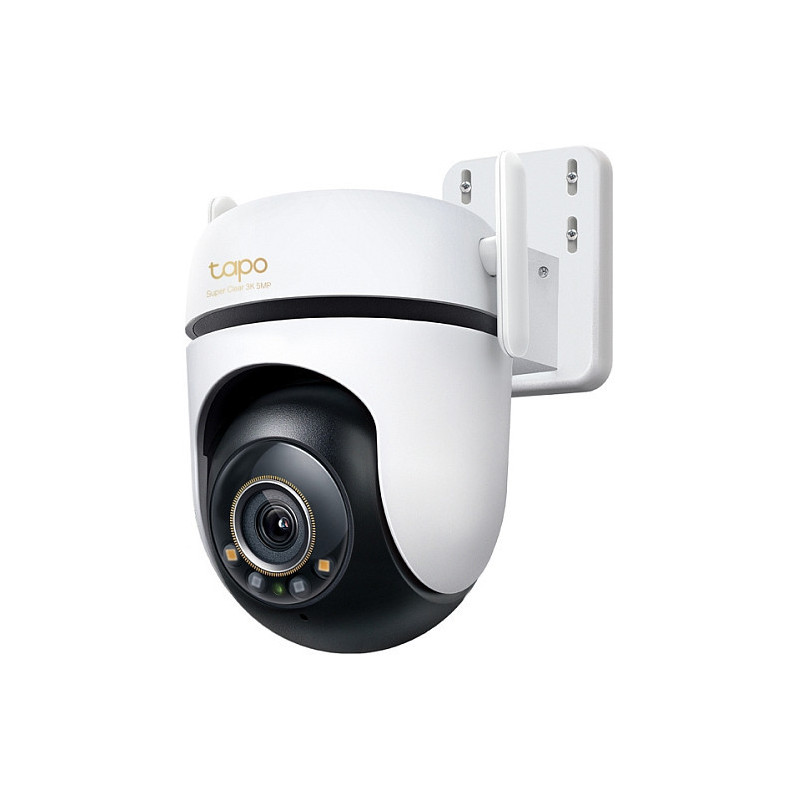

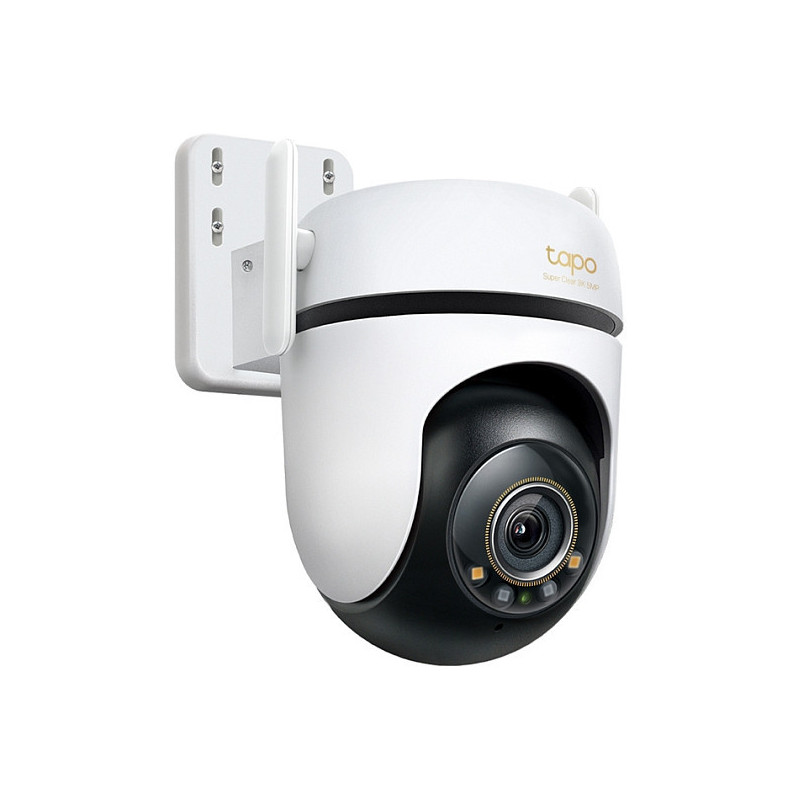

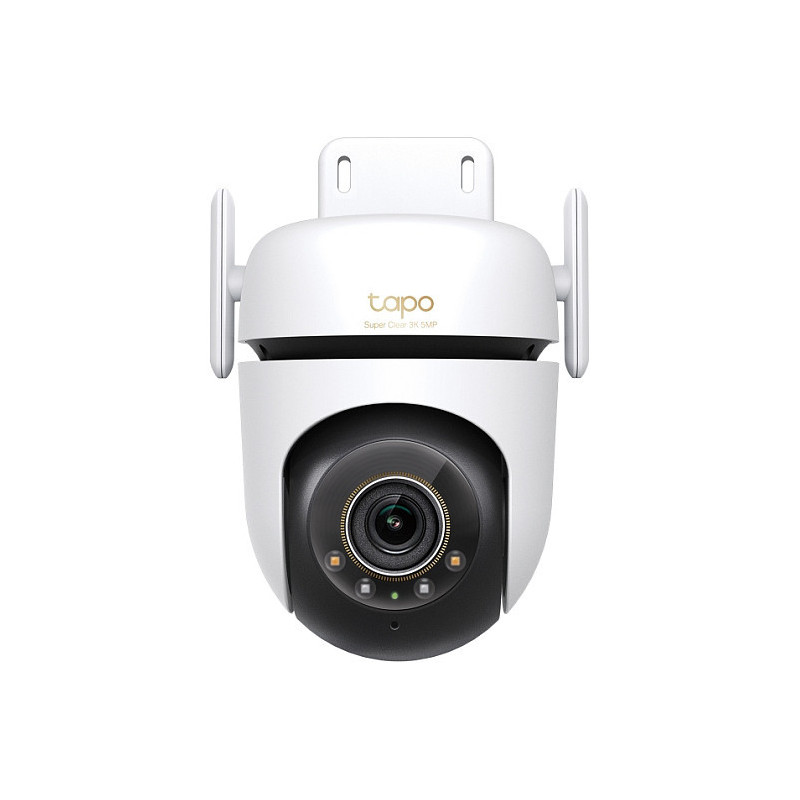

TP-Link TAPO C530WS security camera

TP-Link Outdoor Pan/Tilt Security Wi-Fi Camera SPEC: 3K 5MP (2880x1620), 2.4 GHz, 2 × External Antennas, 1 × Ethernet Port, Horizontal 360º. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired & Wireless. Mounting type: Wall, Product colour: White, Form factor: Turret. Lens viewing angle, horizontal: 95°, Lens viewing angle, vertical: 53°, Lens viewing angle, diagonal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Sensor type (panoramic camera): CMOS

Power Your 360° Vision with 3K Clarity
Outdoor Pan/Tilt Security Wi-Fi Camera

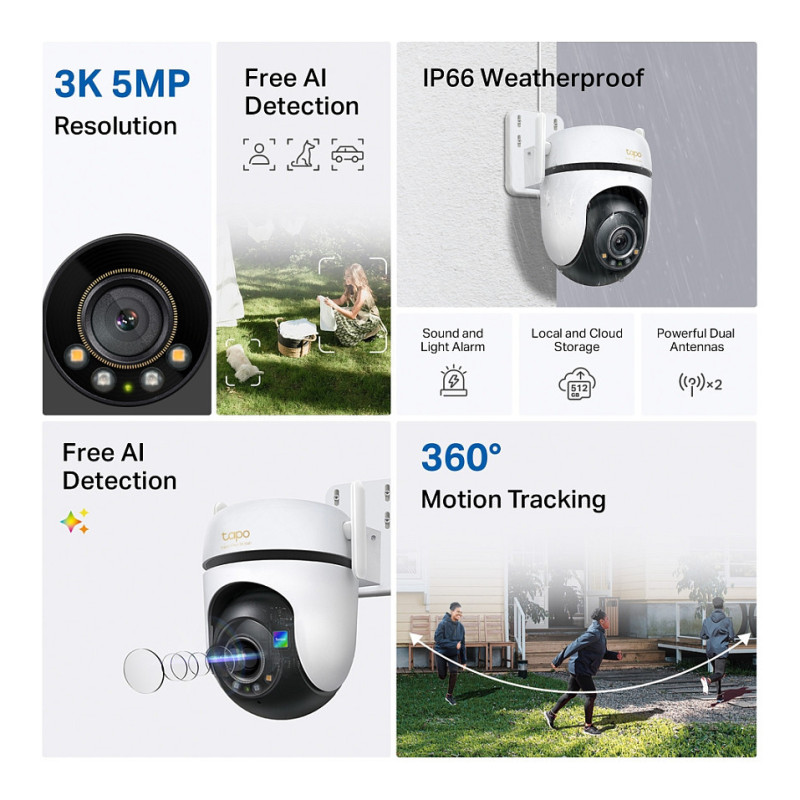

Capture Every Detail, Day and Night
With 3K resolution, Tapo C530WS offers enhanced video quality better than 1080P.

Enjoy colorful images in low-light conditions at night with built-in spotlights and a starlight sensor. With smart mode, the live view turns from black and white to color after detecting person.

AI Detection for More Relevant Notifications
Smart AI accurately identifies people, pets, and vehicles and detects tampering and line crossing. It sends instant notifications when specific objects are detected, ensuring you receive timely and precise alerts.

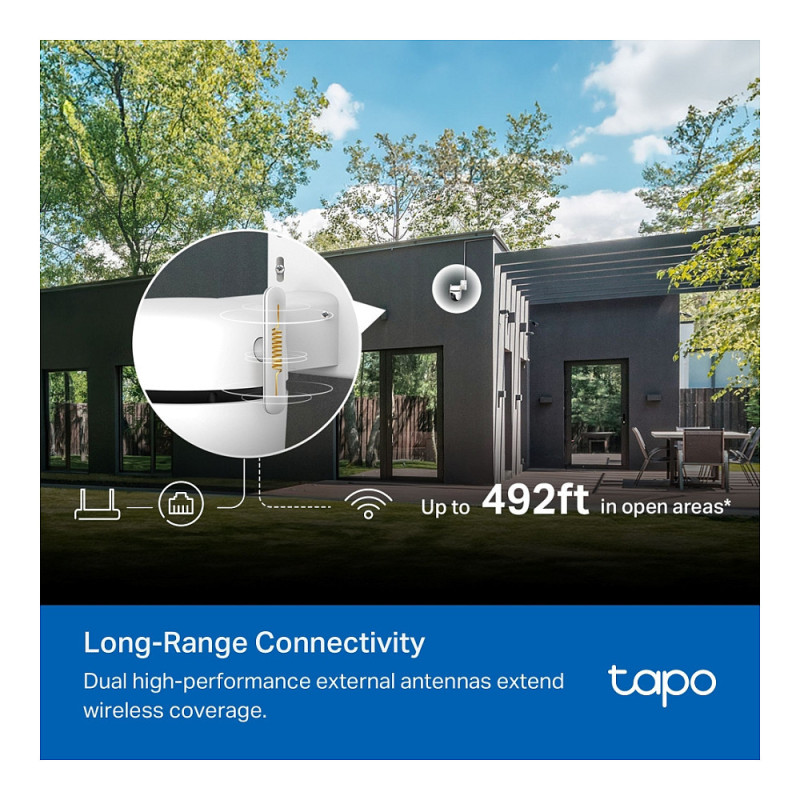

Long-Range Uninterrupted Connectivity
Dual high-performance external antennas extend wireless coverage up to 492 ft in open areas. You can also connect your camera to the network through the Ethernet port for a stable connection.

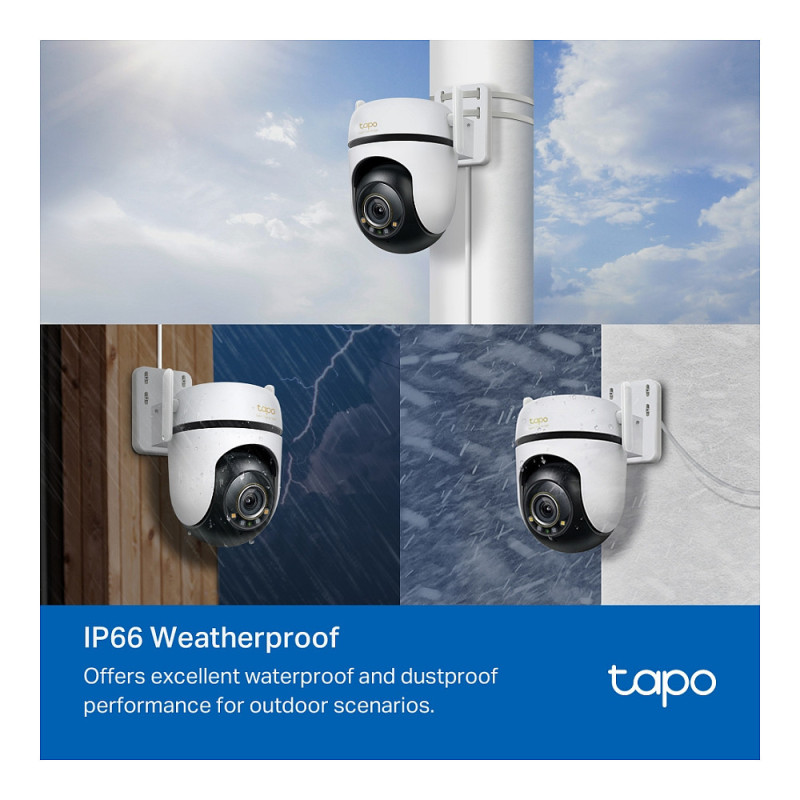

Designed to Withstand Extreme Conditions
With IP66 weatherproofing, Tapo C530WS offers excellent waterproof and dustproof performance for outdoor scenarios. It works well in rain, dust, and heat, operating reliably in different environments.

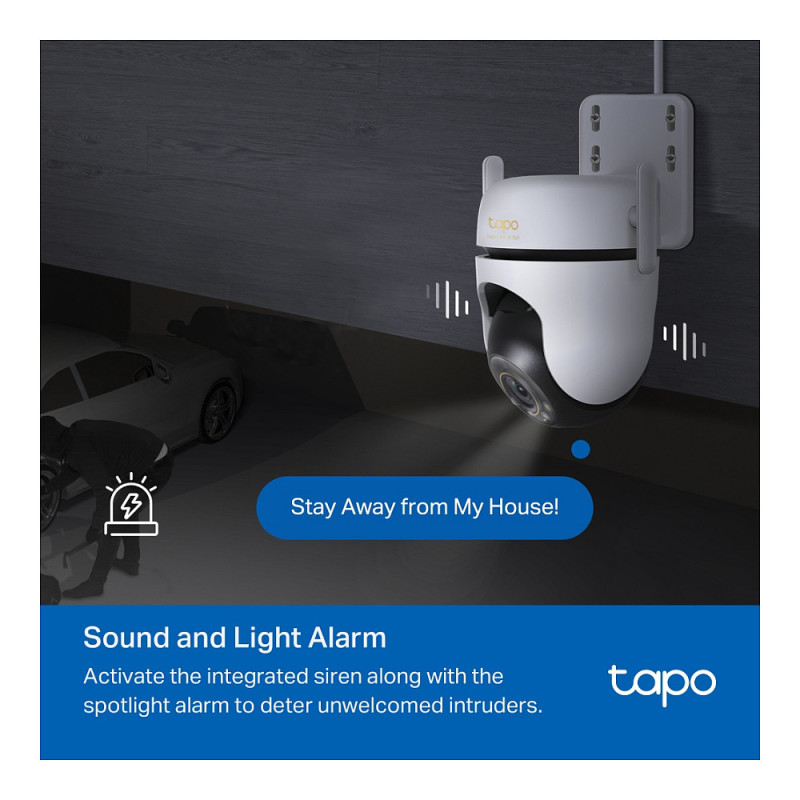

Custom Sound and Light Alarm
Customize your own audio alarm to frighten away unwanted visitors. Adjust two built-in spotlights for fine-tuned illumination.

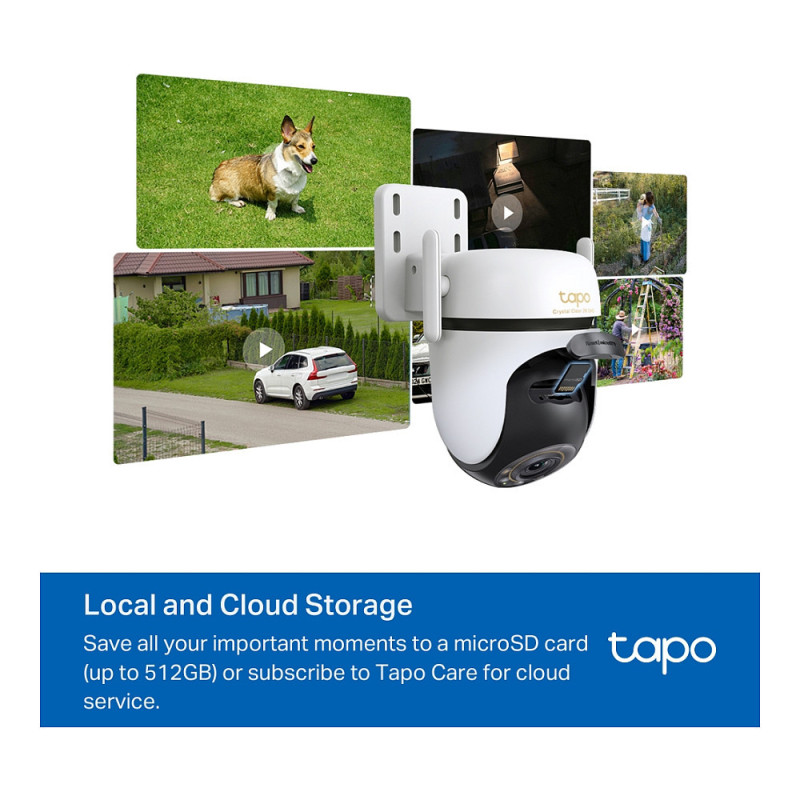

24/7 Secure Local & Cloud Storage
Save crucial moments to a microSD card† (up to 512 GB) or subscribe to Tapo Care for cloud storage‡ after a 30-day free trial, ensuring you never lose important footage.

Multiple Installation Options
Use the mounting screws, template, and loops△ to install on any wall, ceiling, or pole for the perfect view—wherever you want.

Customizable Activity Zone
Customize detection zones to receive alerts for your most important areas.

Two-Way Audio
Communicate directly with the outdoors for your convenience.

Physical Privacy Mode
Maintains your privacy with the lens physically blocked by the housing.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired & Wireless
Feature: Auto pan mode
Maximum operating distance: 29.9 m
Feature: Day/night mode
Feature: Remote viewing
Antenna type: External
Antennas quantity: 2

Design

Form factor: Turret
Mounting type: Wall
Product colour: White
Housing material: Metal
Protection features: Waterproof
International Protection (IP) code: IP66
Feature: Weatherproof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Lens viewing angle, horizontal: 95°
Lens viewing angle, vertical: 53°
Lens viewing angle, diagonal: 112°

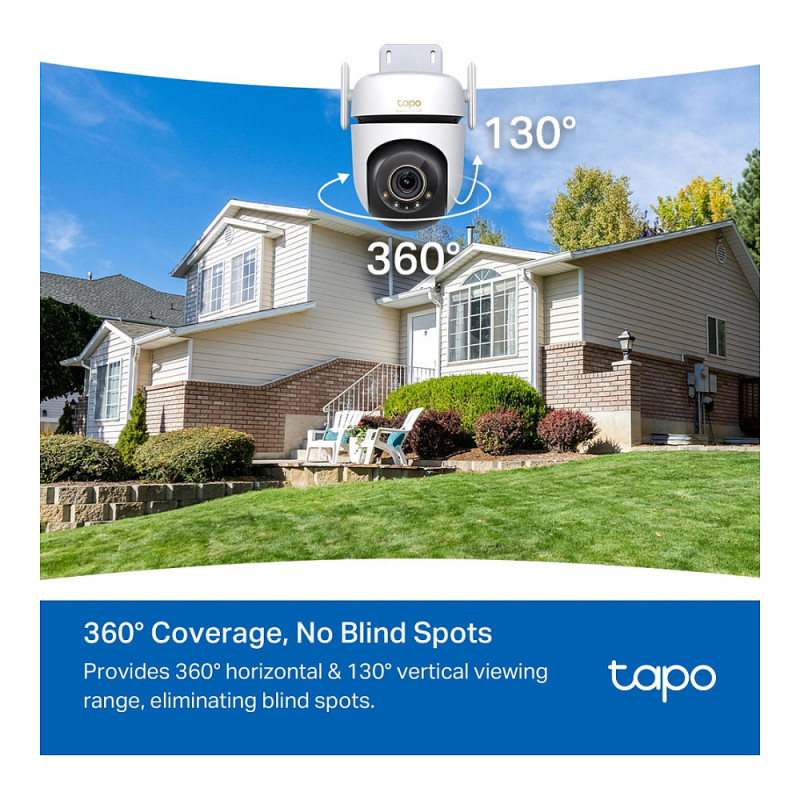

Tilt angle range: 60 - 130°

Image sensor

Optical sensor size: 25.4 / 3 mm (1 / 3")
Feature: Progressive scan
Sensor type: CMOS

Panoramic camera

Sensor type (panoramic camera): CMOS

Lens system

Digital zoom: 12x
Focal length range: 3.2 mm

Night vision

Feature: Night vision
LED type: IR/White

Video

Maximum resolution: 2880 x 1620 pixels
Total megapixels: 5 MP
Video compression formats: H.264
Supported graphics resolutions: 2880 x 1620
Feature: Video recording
Frame rate: 30 fps
Image quality adjustment: DNR

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Audio formats supported: RTSP
Feature: Built-in microphone
Number of microphones: 1
Feature: Audio detection

Network

Feature: Ethernet LAN
Networking standards: IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Feature: Live view

Storage

Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Built-in siren
Siren noise level: 99 dB
Feature: Video motion detection
Feature: HTTPS encryption
Alert notification type: Push notification
Feature: Motion sensor
Feature: Mirror

Management features

Feature: Cloud-managed
Feature: Reset button
Feature: Remotely operated

Power

Power source type: AC, DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
DC output voltage: 9
DC output current: 0.85 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 123.8 mm
Depth: 90 mm
Height: 123 mm

Packaging data

Package width: 160 mm
Package depth: 210 mm
Package height: 145 mm
Package weight: 740 g
Package type: Box

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Mounting brackets included
Feature: Screws included
Feature: Drilling template included
Feature: Manual
