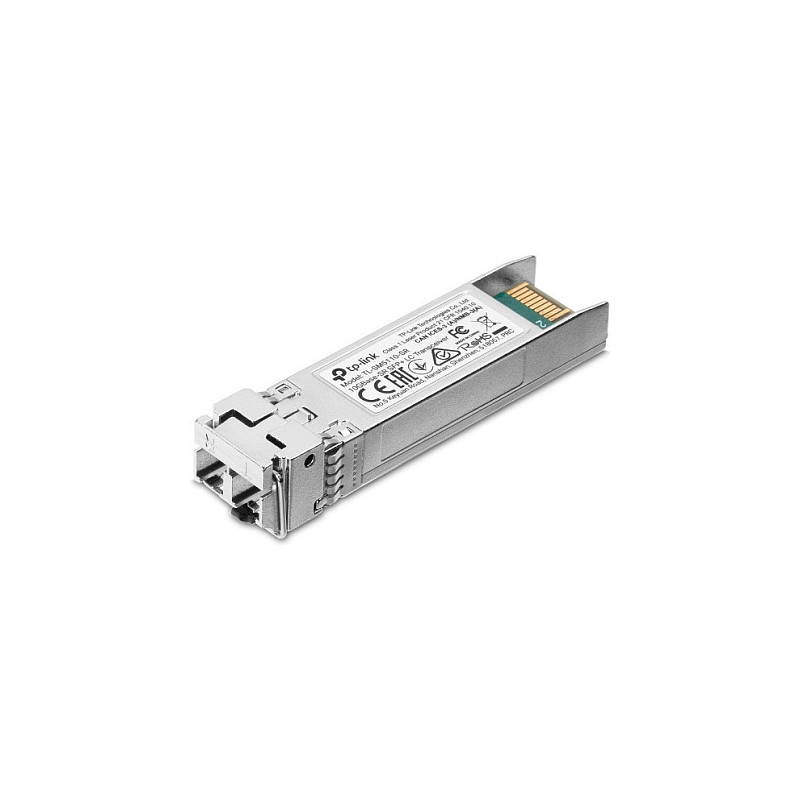

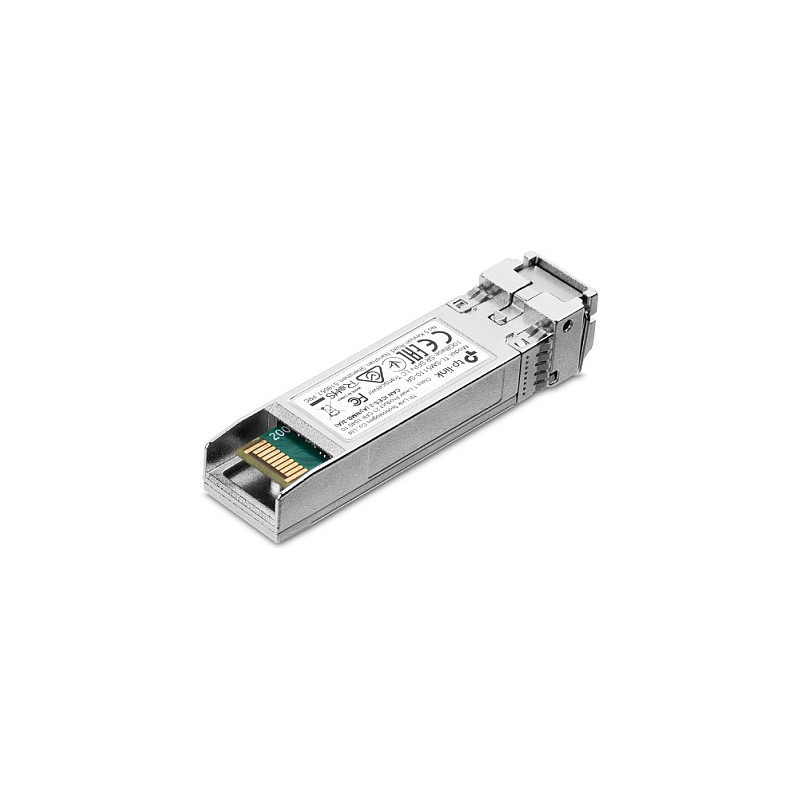

TP-Link SM6110-SR network transceiver module

TP-Link SM6110-SR. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Input voltage: 3.3 V. Certification: FCC, CE. Width: 61.3 mm, Depth: 14.5 mm, Height: 12.2 mm. Quantity per pack: 1 pc(s)

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Fiber optic connector: LC (UPC)
SFP transceiver standard: SR
Wavelength: 850 nm
Feature: Digital Diagnostics Monitoring (DDM)

Features

Feature: Hot-swap

Power

Input voltage: 3.3 V

Certificates

Certification: FCC, CE

Operational conditions

Minimum operating temperature: 0 °C
Maximum operating temperature: 70 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 61.3 mm
Depth: 14.5 mm
Height: 12.2 mm

Packaging content

Quantity per pack: 1 pc(s)
