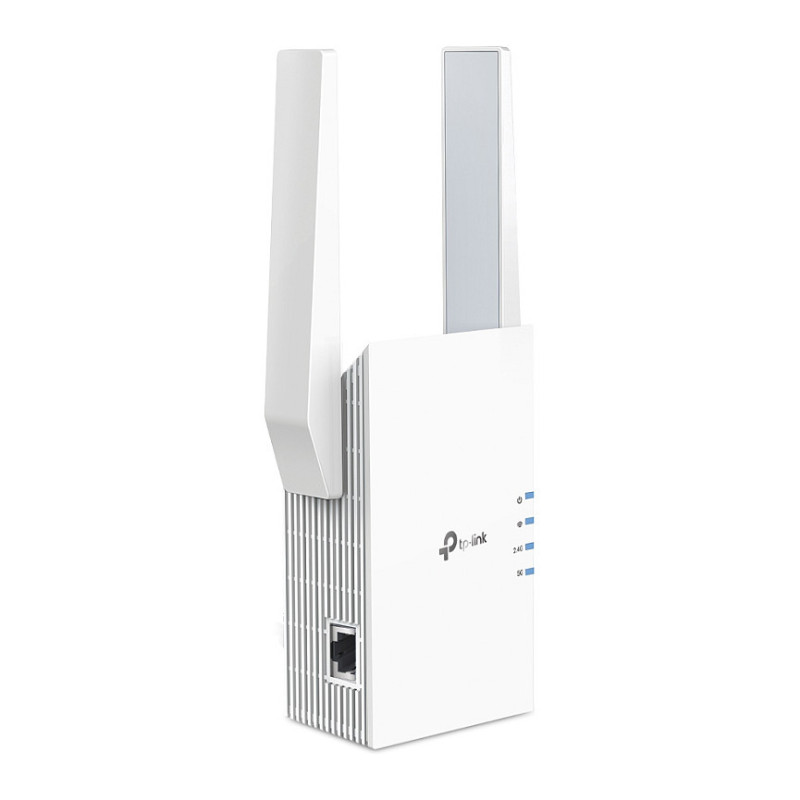

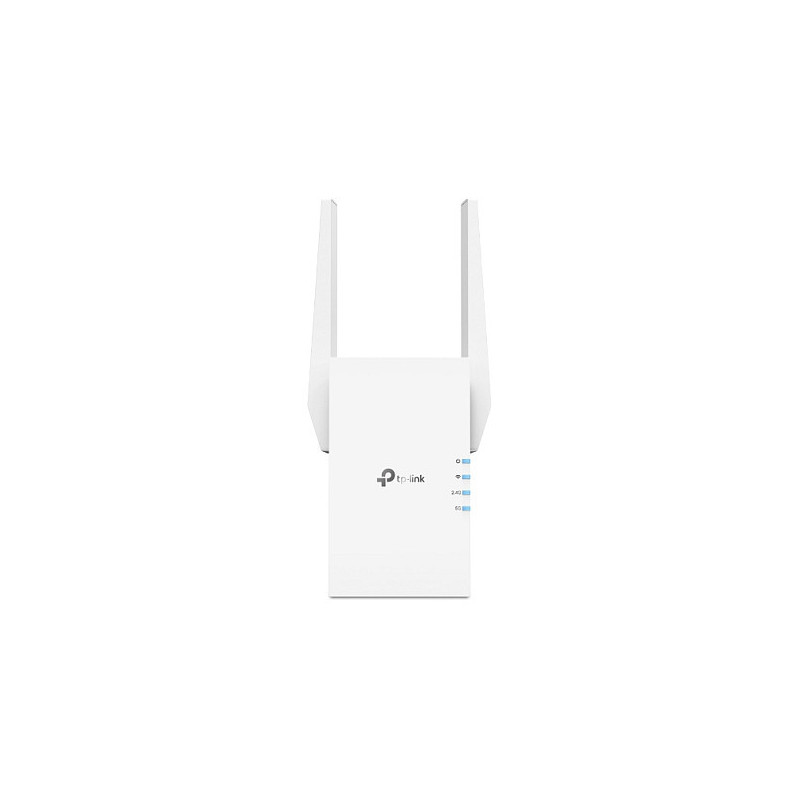

TP-Link RE705X network extender

TP-Link RE705X. Type: Network transmitter & receiver, Data transfer rate: 1000 Mbit/s. Antenna type: External. Networking standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11g, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi data rate (max): 2400 Mbit/s. Product colour: White. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (typical): 12.6 W

Cover Every Corner with Blazing Fast WiFi 6

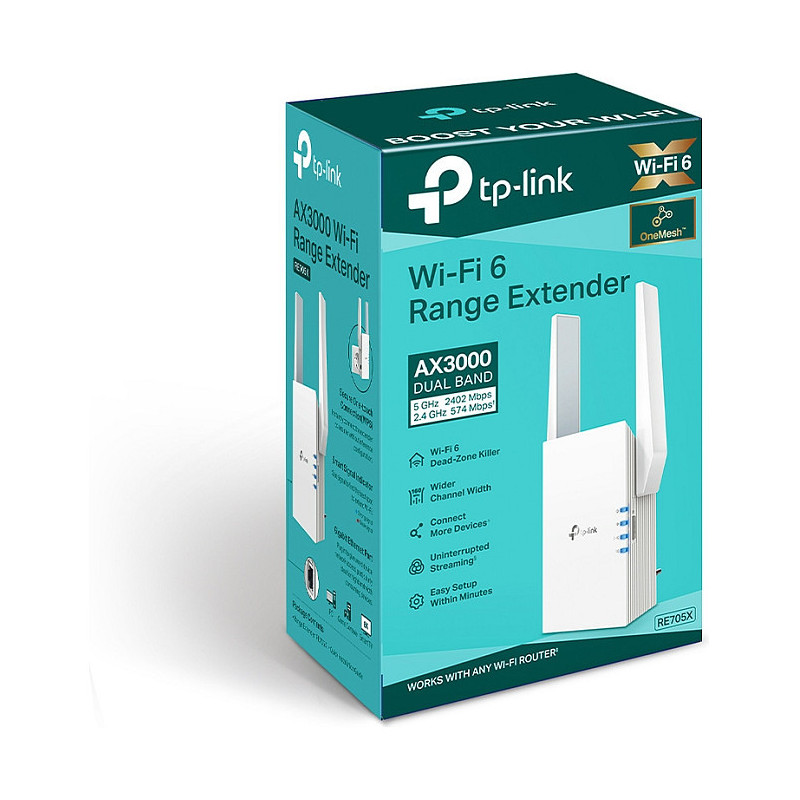

AX3000 WiFi 6 Range Extender

Life in the fast lane with advanced WiFi6

WiFi 6 comes with it all: faster speeds, lower latency, and more connections. It also features 25% faster data throughput compared with last-gen WiFi thanks to 1024-QAM.† With this speed boost, experience high-speed and stable WiFi throughout your rooms.

Double Channel Speed with HE160
Higher Efficiency, Lower Latency

Supports 2x2 160MHz on the 5G band, enjoys wider bandwidth and faster speed than the traditional 80MHz.‡

4 high-performance amplifiers, we got you covered

Enjoy 4K streaming and gaming in whatever room you're in thanks to RE705X's 4 high-performance amplifiers. Whether you're sharing a pad with friends or living in your forever home, RE705X sends out strong signals to those hard-to-cover areas.

OFDMA
More efficient data.

Orthogonal Frequency Division Multiple Access helps integrate the data of different end devices for higher efficiency.‡

Beamforming
Strong, targeted WiFi.

Find the direction of your phone or laptop, and accelerate your signal strength.

Adaptive Path Selection

Keeps your network running at top speed by automatically choosing the fastest connection path to the router.

Flexibly Create Whole Home Mesh WiFi

If you have any dead zones at home, just add another Easymesh-Compatible router/WiFi extender to further form your whole home mesh WiFi. No more searching for a stable connection.

Wide.
Wider.
Widest.

Keep your internet focused on a single room or blanket an entire floor with WiFi by picking between 3 strength levels on the Tether app.

Built-In
Access Point Mode

RE705X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2×2 MU-MIMO dual band wireless access point.

Control at Your Fingertips

Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.

Performance

Type: Network transmitter & receiver
Data transfer rate: 1000 Mbit/s
Mac operating systems supported: Yes

Antenna

Antennas quantity: 2
Antenna type: External

Network

Networking standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11g
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max): 2400 Mbit/s
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 2402 Mbit/s
Security algorithms: WEP, WPA, WPA2, WPA3

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Design

Product colour: White
LED indicators: Yes
Feature: Reset button

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 12.6 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 97 mm
Depth: 46 mm
Height: 158 mm

Packaging data

Package width: 202 mm
Package depth: 125 mm
Package height: 97 mm
Package weight: 430 g

Certificates

Compliance certificates: CE, RoHS
