TP-Link RE200 network extender

TP-Link RE200. Type: Network repeater, Data transfer rate: 433 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Antenna type: Internal, Transmitting power (CE): 20 dBm. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Product colour: White, Quantity per pack: 1 pc(s). AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (max): 6.5 W

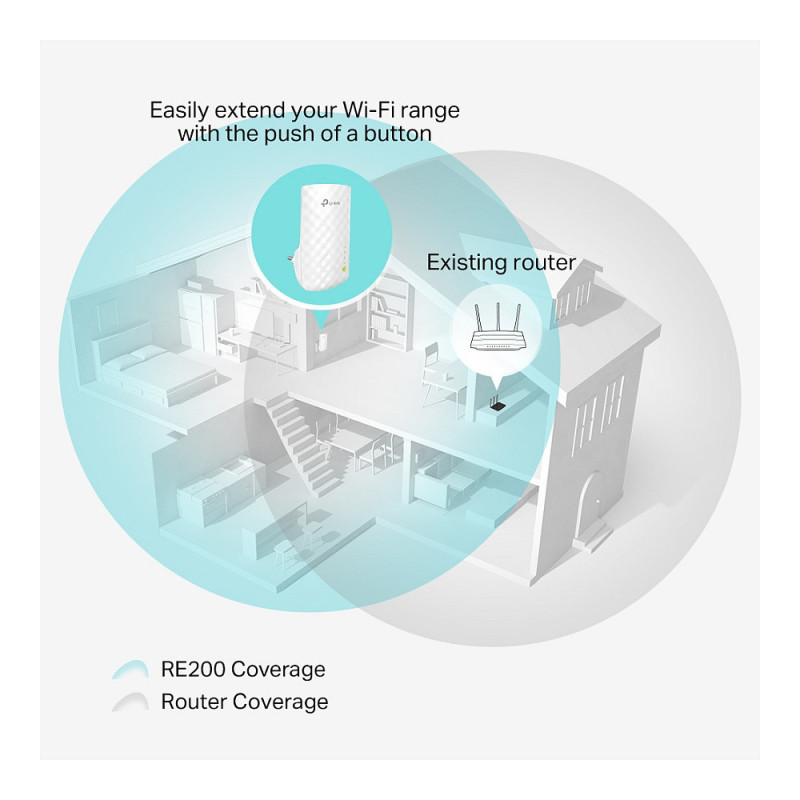

Boost Your Router Coverage to Expanded Dual Band WiFi
RE200 expands your existing WiFi coverage with next generation 11AC WiFi technology. It works with any standard WiFi router and creates stronger dual band connections in hard-to-reach areas, allowing you to enjoy seamless wireless coverage throughout your home or office.
Next Generation 11AC WiFi

Create faster access for 802.11 b/g/n and 802.11ac WiFi devices. RE200 delivers fast speeds of dual band WiFi up to 750Mbps and provides reliable connections for laptops, smartphones, tablets and other wireless-enabled devices.

Enjoy Super Speeds in High Speed Mode
With High-Speed technology, RE200 makes the best use of both WiFi bands to establish super speedy connections — ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.

Easy Setup and Flexible Placement
Press the WPS button on your router and the Range Extender button on your RE200 within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply unplug and plug the RE200 back in anywhere within the wireless range of the existing router, without needing to configure the extender again.

Entertainment Adapter
The RE200's single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs and Internet TVs. At the same time, the device can share the wireless network as well.

Performance

Type: Network repeater
Data transfer rate: 433 Mbit/s
Ethernet LAN data rates: 10,100 Mbit/s
Feature: WPS push button
Feature: Mac compatibility
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Antenna

Antennas quantity: 3
Antenna type: Internal
Transmitting power (CE): 20 dBm

Network

Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max): 433 Mbit/s
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA-PSK, WPA2-PSK

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Design

Product colour: White
LED indicators: Yes
Quantity per pack: 1 pc(s)
Feature: Reset button

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 6.5 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 110 mm
Depth: 65.8 mm
Height: 75.2 mm
Weight: 100 g

Packaging content

Cables included: LAN (RJ-45)
Feature: Quick start guide

Packaging data

Package type: Box
Package width: 156.5 mm
Package depth: 101.5 mm
Package height: 89 mm
Package weight: 310 g

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 85176990
