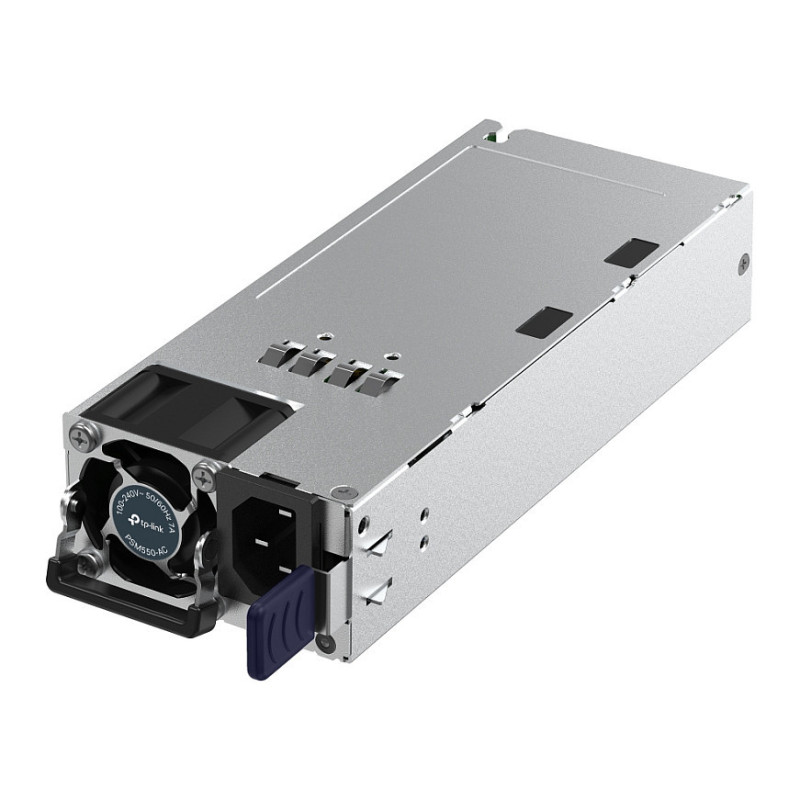

TP-Link PSM500-AC power adapter / inverter

TP-Link PSM500-AC. Purpose: Network switch, Power supply type: Indoor, Input voltage: 100 - 240 V. Product colour: Metallic, Housing material: Metal. Width: 185 mm, Depth: 73.5 mm, Height: 40 mm. Quantity per pack: 1 pc(s)

The TP-Link Power Supply Module PSM550-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with a maximum output power of 550 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple Omada and Omada Pro switch models, such as SX6632YF, S7500-26XF6Y.

Features

Purpose: Network switch
Power supply type: Indoor
Power current type: AC-to-DC
Input voltage: 100 - 240 V
Input frequency: 50/60 Hz
Input current: 7 A
Output power: 550 W
Output voltage: 12 V
Output current: 45 A
Power protection features: Over current, Over voltage, Overheating, Short circuit
Compatibility: TP-Link SX6632YF, S7500-26XF6Y

Design

Product colour: Metallic
Housing material: Metal
Suitable for indoor use: Yes

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 185 mm
Depth: 73.5 mm
Height: 40 mm

Packaging content

Quantity per pack: 1 pc(s)
