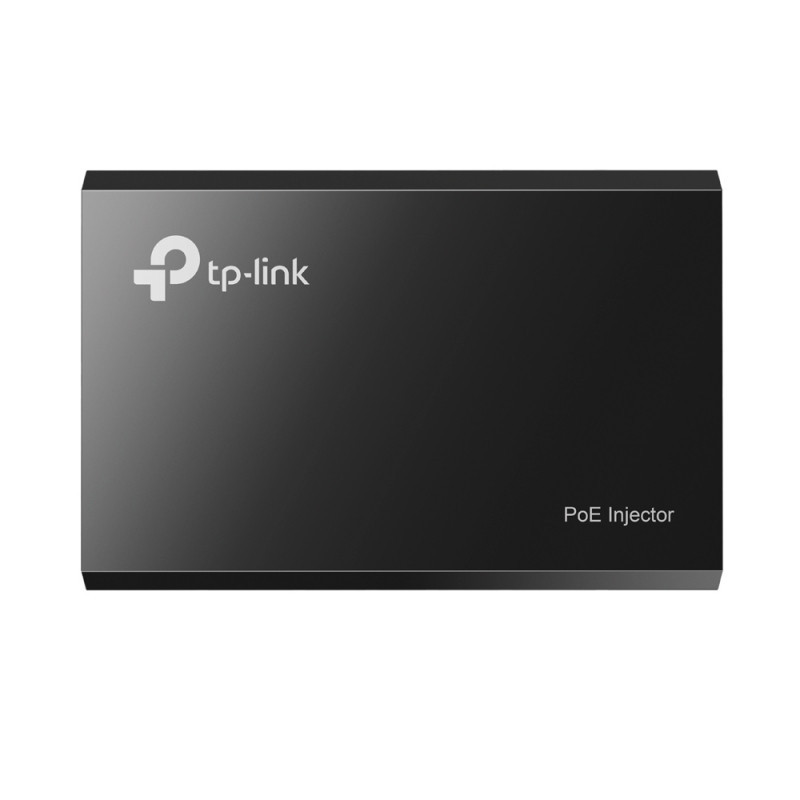

TP-LINK PoE Injector

• IEEE 802.3af compliant


• Delivers power up to 100 meters


• Auto-determine the necessary power requirements


• Gigabit speed support


• Plug-and-Play, requires no configuration


• External power adapter supply

HARDWARE FEATURES

Interface: 2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 48VDC POWER INPUT PORT

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Power Supply: 15.4W (Max. 48VDC)

LED Indicator: PWR

Dimensions ( W x D x H ): 3.2*2.1*0.9 in. (80.8*54*24 mm)

SOFTWARE FEATURES

Basic Functions: Compatible With IEEE 802.3af Compliant PDs Delivers Power Up To 100 Meters Auto-Determine The Necessary Power Requirements

OTHERS

Certification: FCC, CE, RoHS

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment: Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
