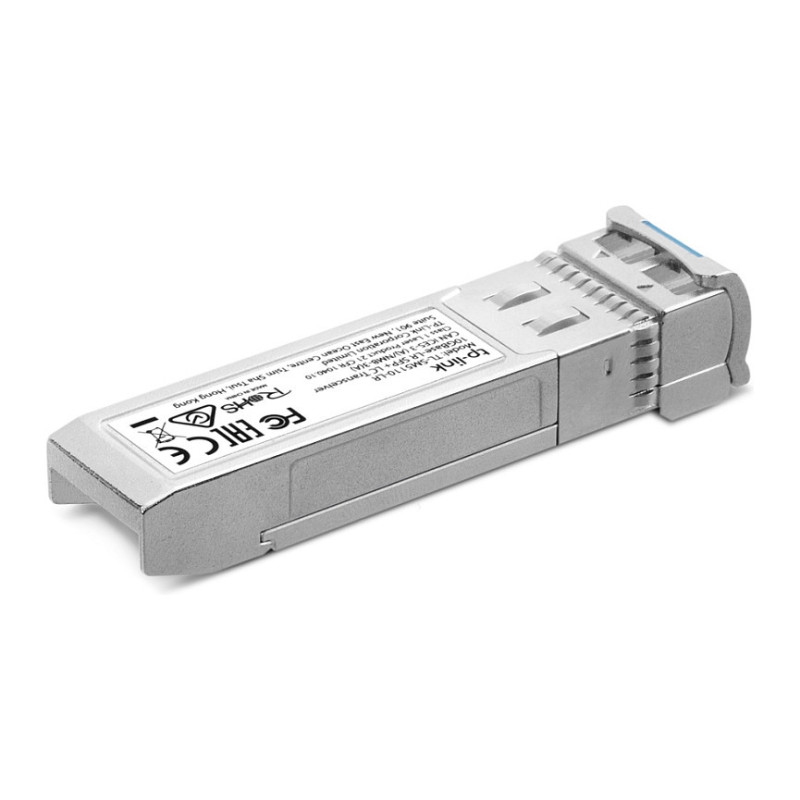

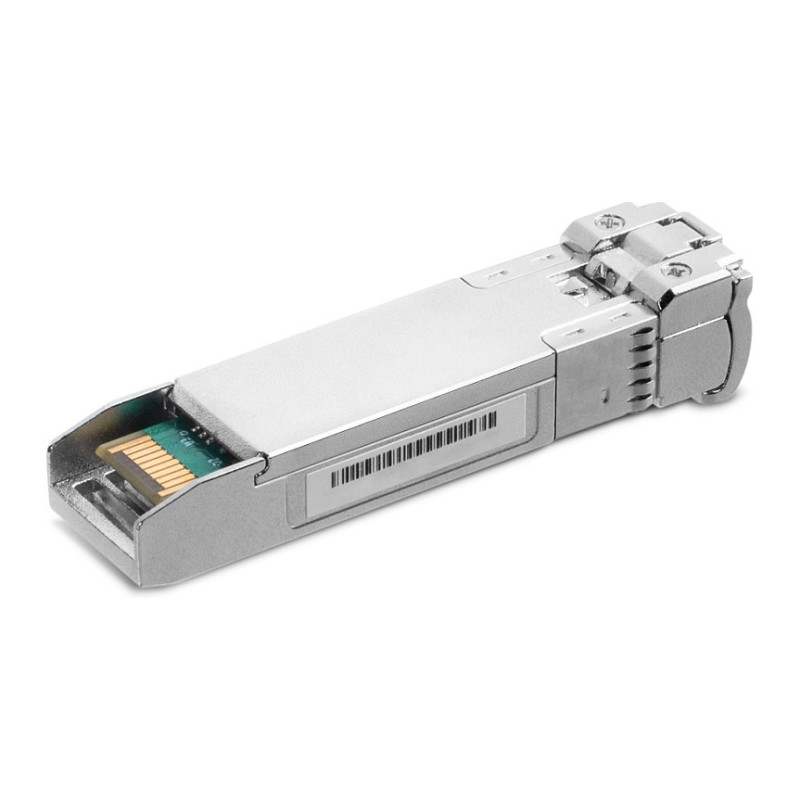

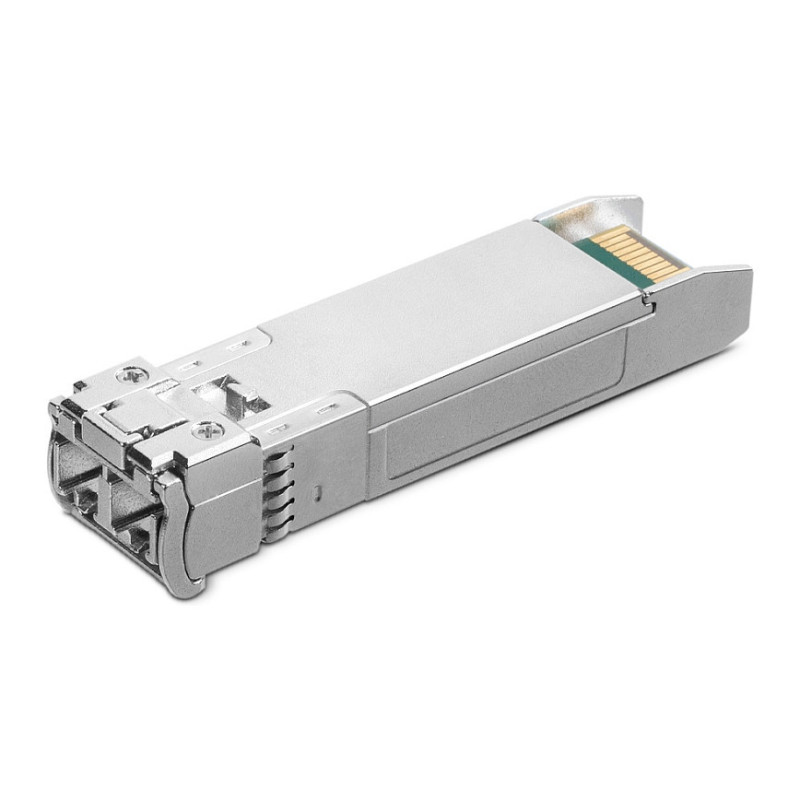

TP-Link Omada TL-SM5110-LR network transceiver module

TP-Link Omada 10Gbase-LR SFP+ LC Transceiver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Brand compatibility: TP-Link, Compatible products: Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.. Input voltage: 3.3 V. Certification: FCC, CE. Width: 56.7 mm, Depth: 13.9 mm, Height: 10.3 mm

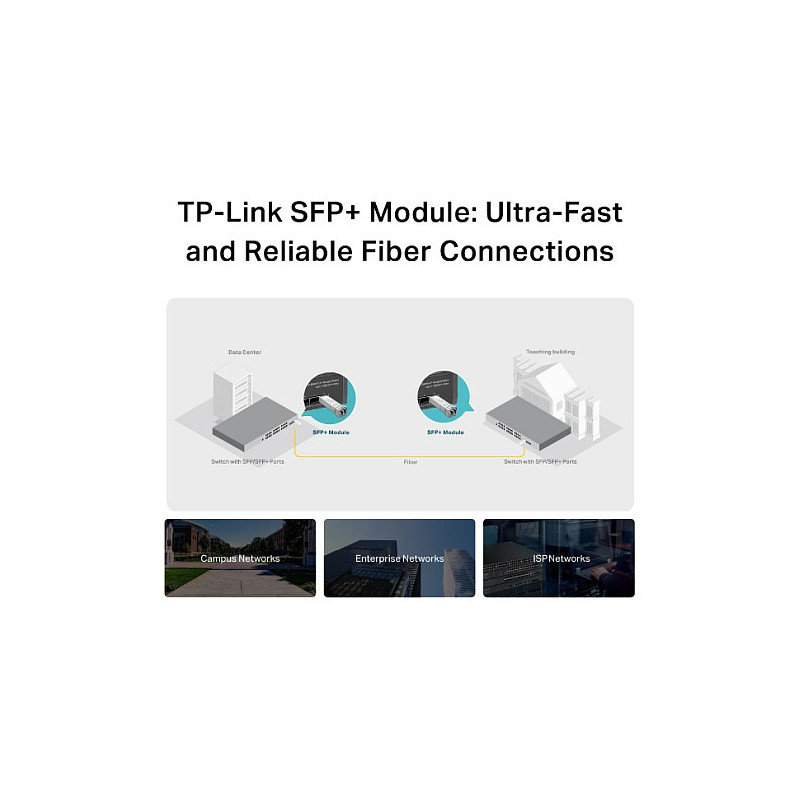

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Single-mode fiber (SMF) supported

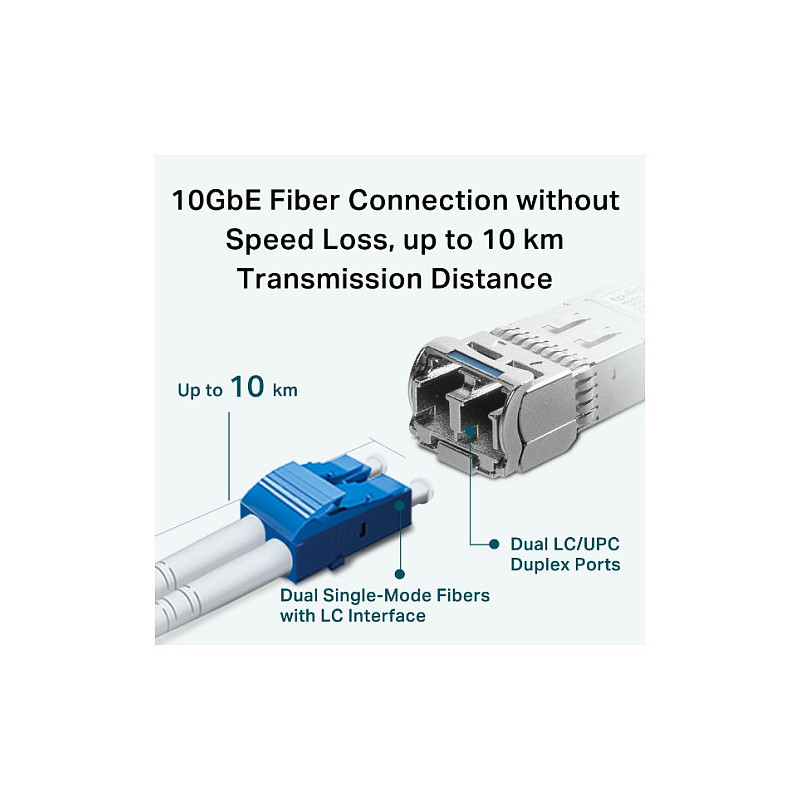

Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: LR
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Networking standards: IEEE 802.3ae
Duplex system: Full
Feature: Digital Diagnostics Monitoring (DDM)

Features

Feature: Hot-Plug support
Feature: Hot-swap
Brand compatibility: TP-Link

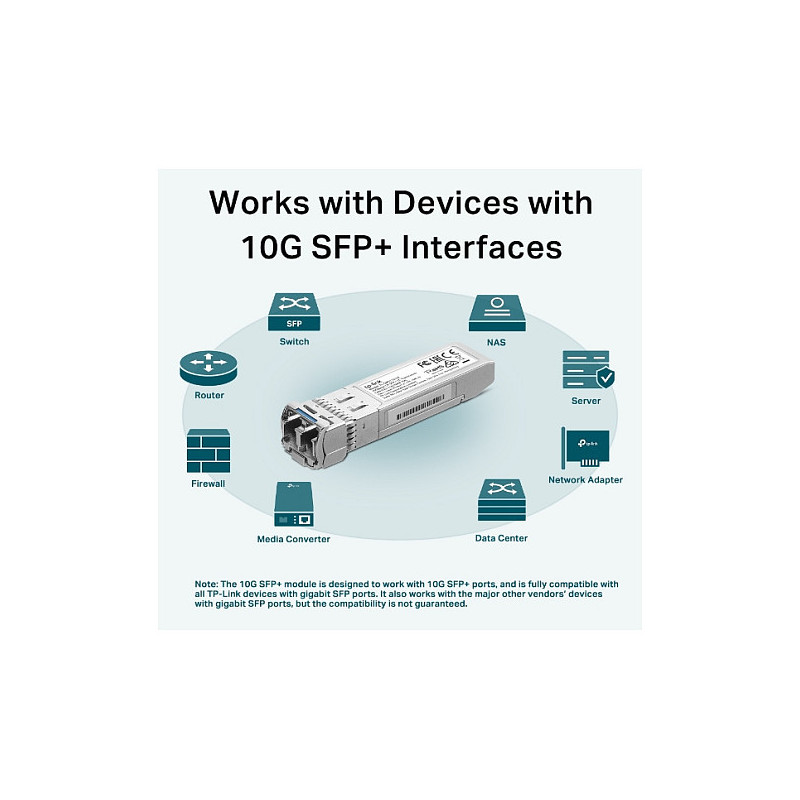

Compatible products: Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

Power

Input voltage: 3.3 V

Certificates

Certification: FCC, CE

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

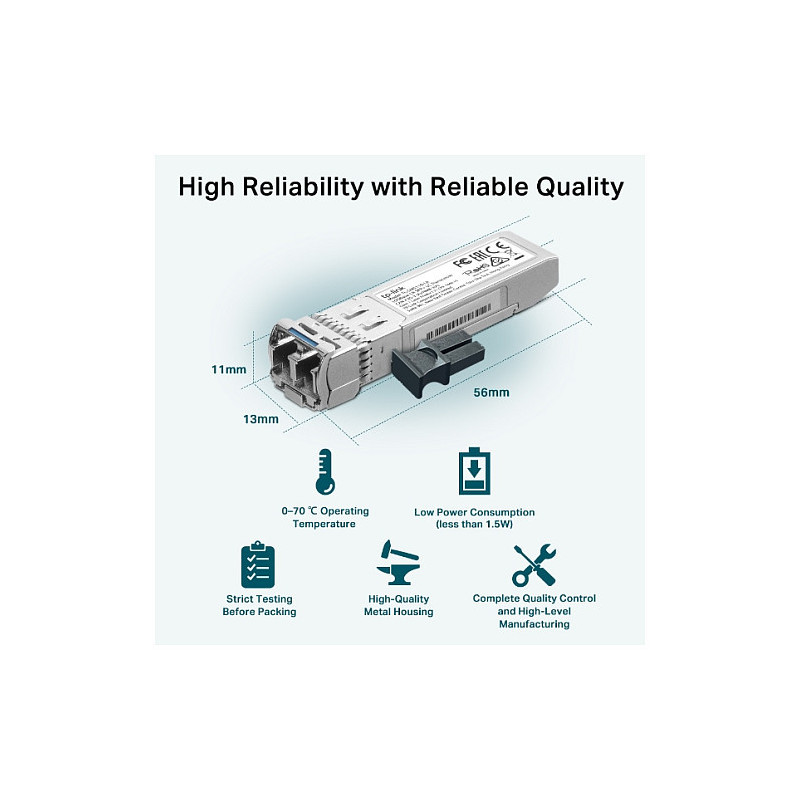

Weight & dimensions

Width: 56.7 mm
Depth: 13.9 mm
Height: 10.3 mm

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 81.5 mm
Package depth: 122.5 mm
Package height: 38.5 mm
Package weight: 60 g

Logistics data

Harmonized System (HS) code: 85369010
