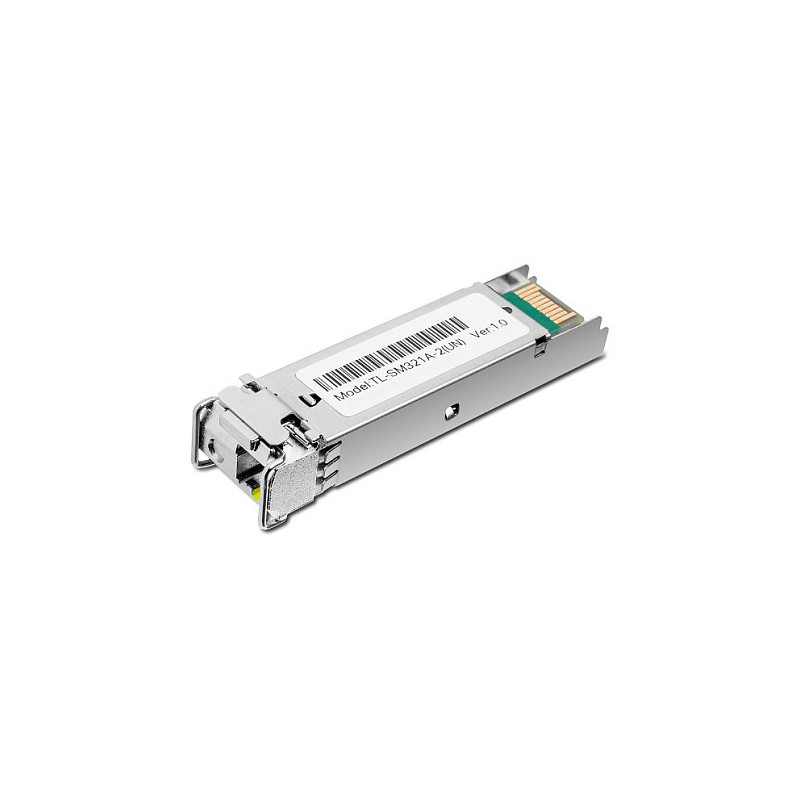

TP-Link Omada TL-SM321A network transceiver module

TP-Link Omada Gigabit Single-Mode WDM Bi-Directional SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Metallic. Input voltage: 3.3 V. Compliance certificates: RoHS, Certification: CE, FCC. Quantity per pack: 1 pc(s)

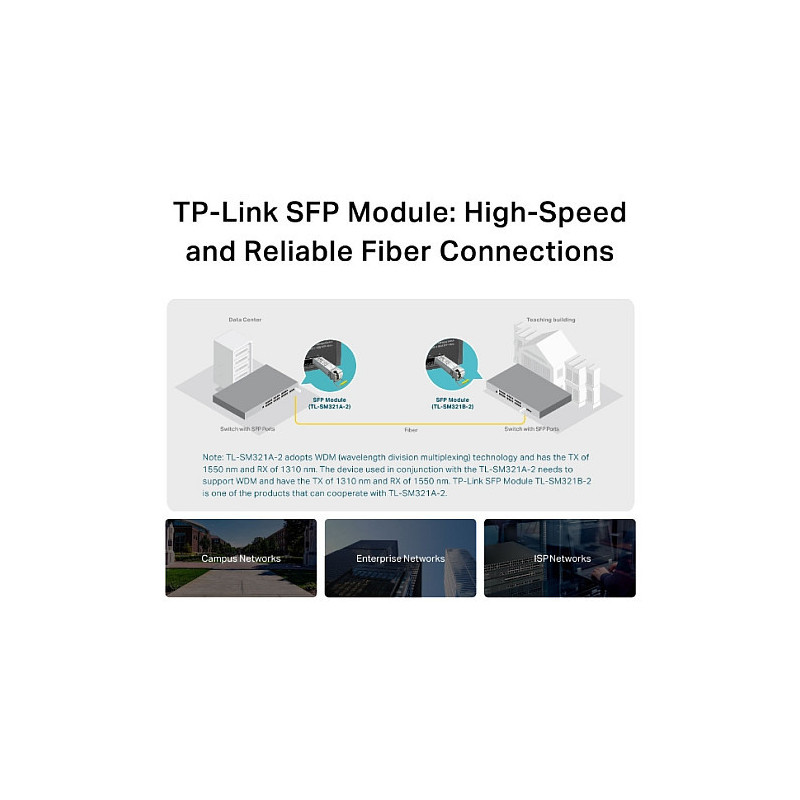

TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km (6.2 miles) paired with TP-LINK TL-SM321A, MC112CS, or compatible third-party WDM module.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported

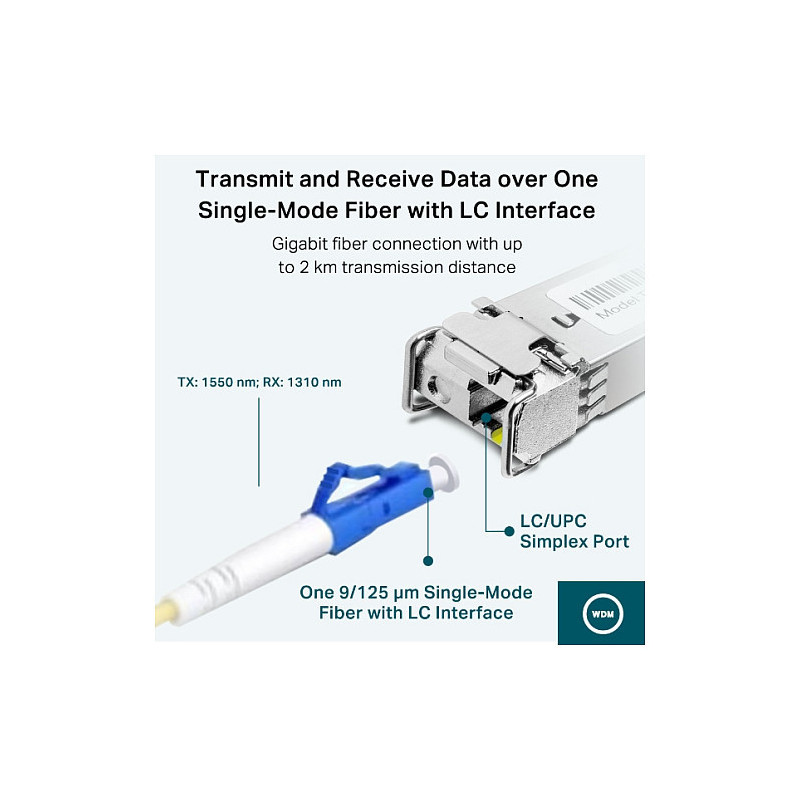

Fiber optic connector: LC (UPC)
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: BX
Maximum transfer distance: 1000 m
Tx wavelength (max): 1550 nm
Rx wavelength (max): 1310 nm
Networking standards: IEEE 802.3z
Fiber ethernet cabling technology: 1000BASE
Feature: Wavelength-division multiplexing (WDM)

Features

Product colour: Metallic
Feature: Hot-swap

Power

Input voltage: 3.3 V

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 81.5 mm
Package depth: 122.5 mm
Package height: 38.5 mm
Package weight: 60 g

Logistics data

Harmonized System (HS) code: 85369010
