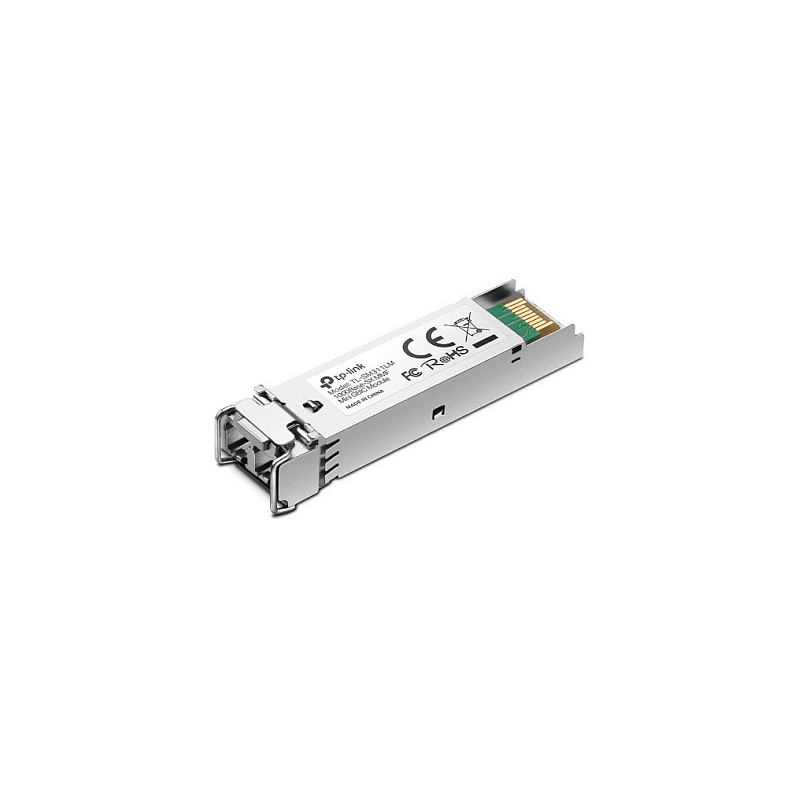

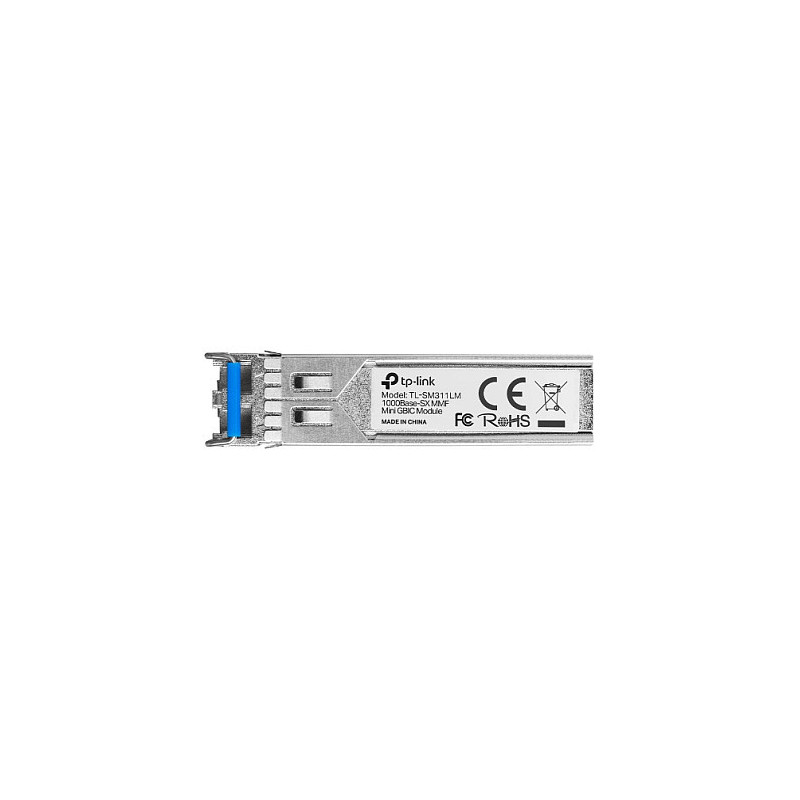

TP-Link Omada TL-SM311LM network transceiver module

TP-Link Omada SFP 1000BASE-SX LC MiniGBIC Mm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: mini-GBIC/SFP. Product colour: Metallic. Input voltage: 3.3 V. Compliance certificates: RoHS, Certification: FCC, CE. Width: 55.4 mm, Depth: 13.7 mm, Height: 12.9 mm
What This Product Does

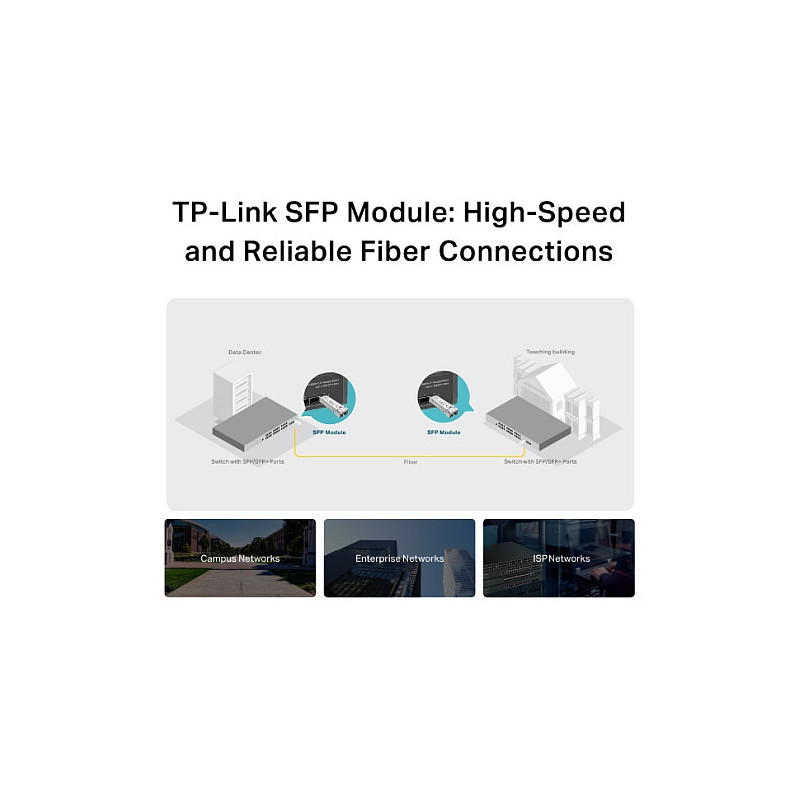

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: mini-GBIC/SFP
Single-mode fiber (SMF) supported: No
Multi-mode fiber (MMF) supported: Yes

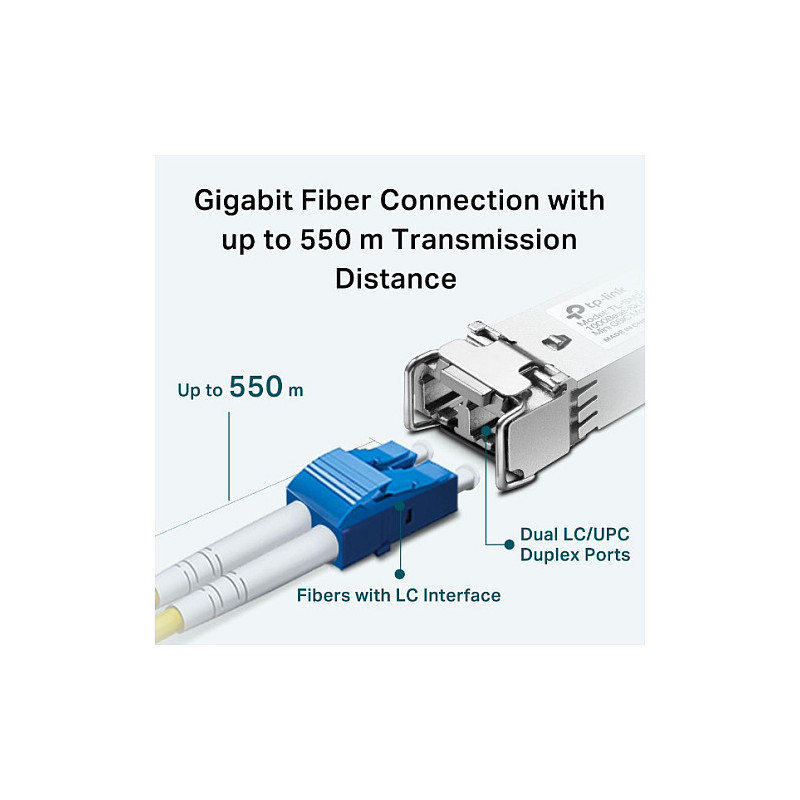

Fiber optic connector: LC (UPC)
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Maximum transfer distance: 550 m
Wavelength: 850 nm
Networking standards: IEEE 802.3z

Features

Product colour: Metallic

Power

Input voltage: 3.3 V

Certificates

Compliance certificates: RoHS
Certification: FCC, CE

Operational conditions

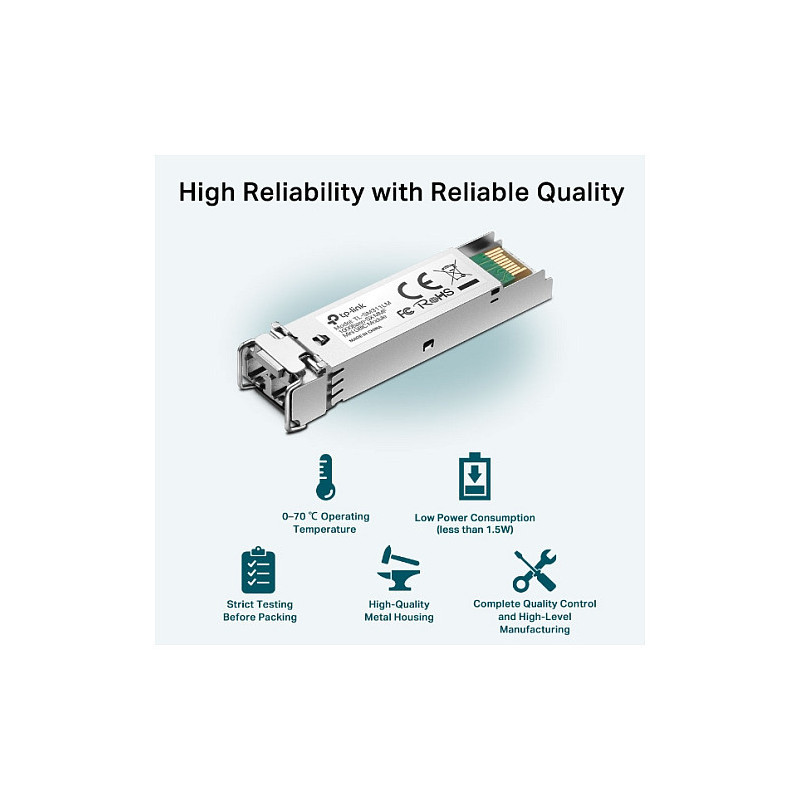

Minimum operating temperature: 0 °C
Maximum operating temperature: 70 °C
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Width: 55.4 mm
Depth: 13.7 mm
Height: 12.9 mm

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

User guide: Yes
Package width: 38 mm
Package depth: 207 mm
Package height: 38 mm
Package weight: 110 g

Logistics data

Harmonized System (HS) code: 85369010
