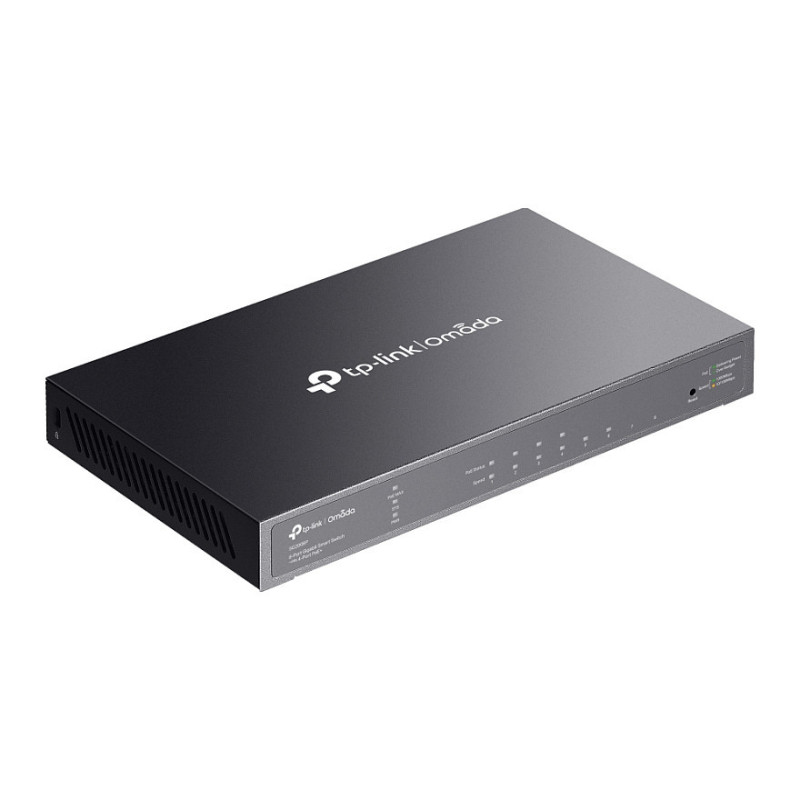

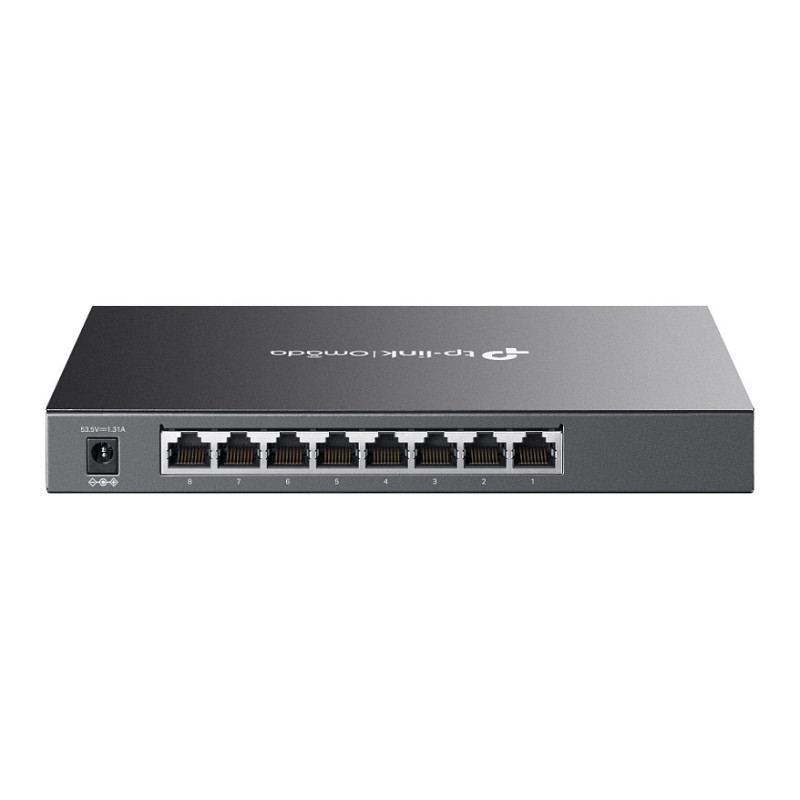

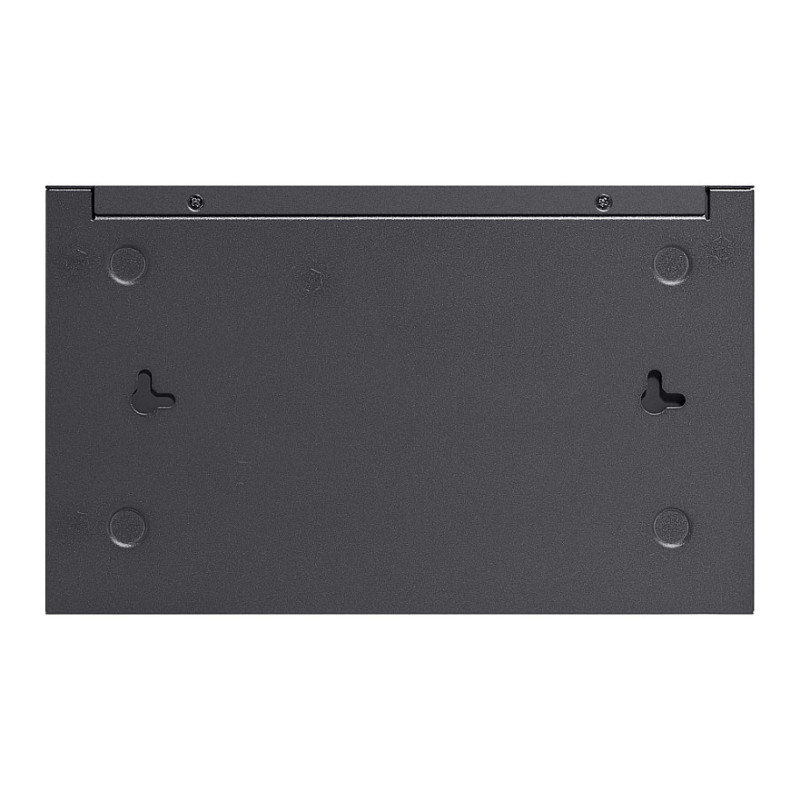

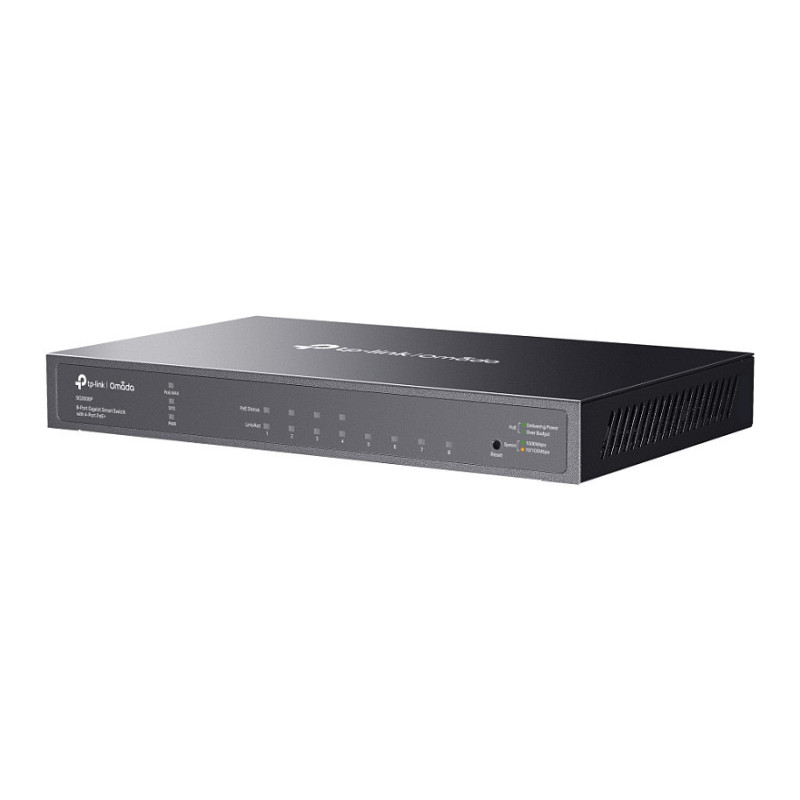

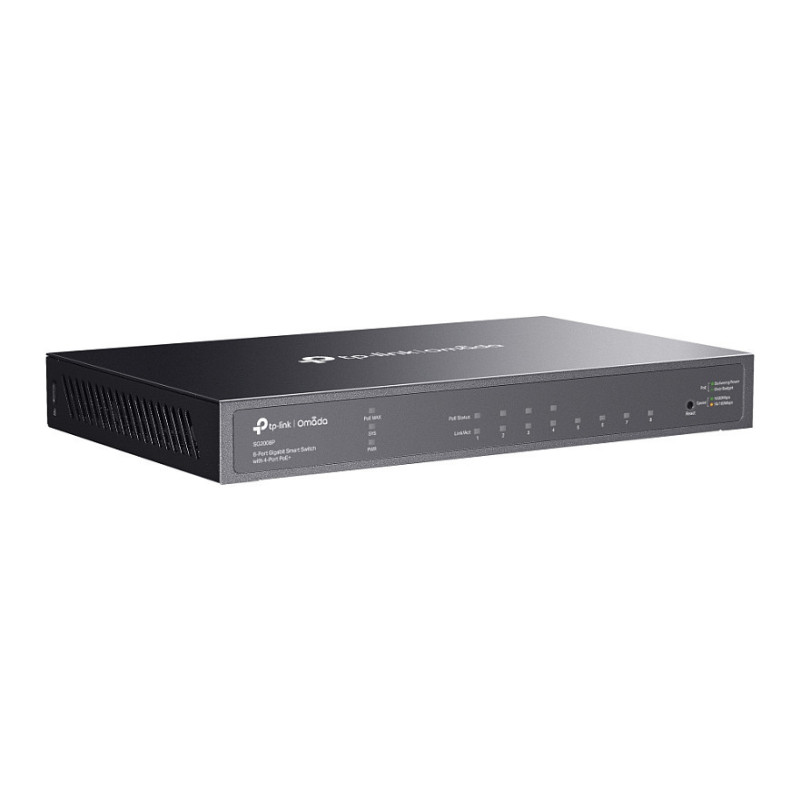

TP-Link Omada TL-SG2008P

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting

TP-Link's brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Management features

Switch type: Managed
Switch layer: L2/L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: ARP inspection
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-negotiation
Feature: VLAN support
Number of VLANs: 4094

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 8000 entries
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping
Feature: IGMP snooping
Security algorithms: 802.1x RADIUS
Feature: MAC address filtering
Authentication: MAC-based authentication, Web-based authentication
Authentication type: RADIUS

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNMPv1/v2c/v3
IPv4 & IPv6 features: IPv6 Telnet, IPv6 ping, IPv6 tracert

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Yes

Performance

Feature: Fanless

Power

Feature: Power supply included
Power consumption (max): 77.3 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 263.6 BTU/h

Weight & dimensions

Width: 209 mm
Depth: 126 mm
Height: 26 mm

Packaging content

Feature: Manual

Packaging data

Package type: Box

Certificates

Certification: CE, FCC, RoHS
