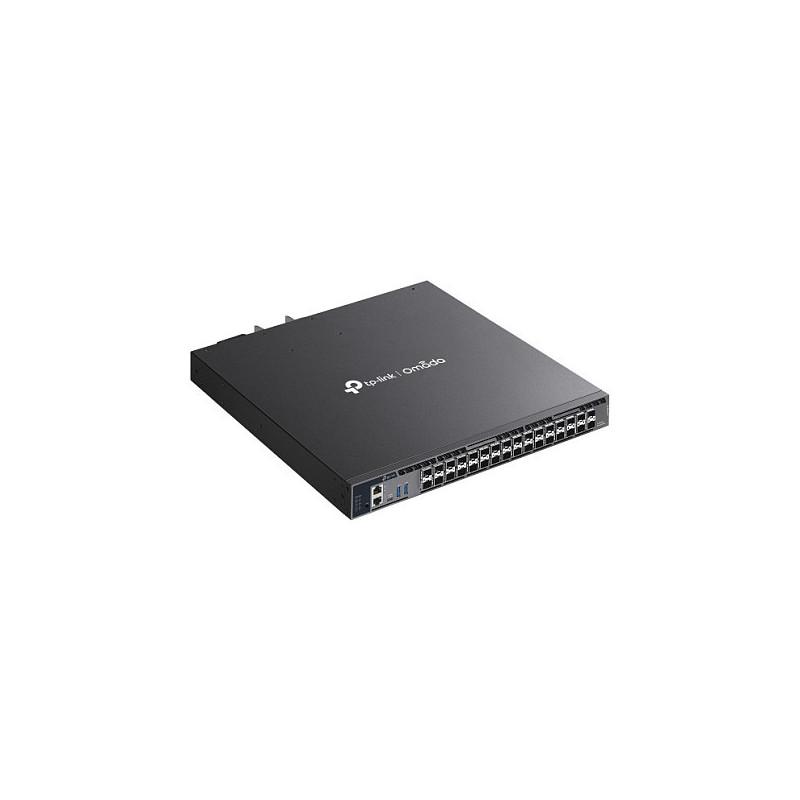

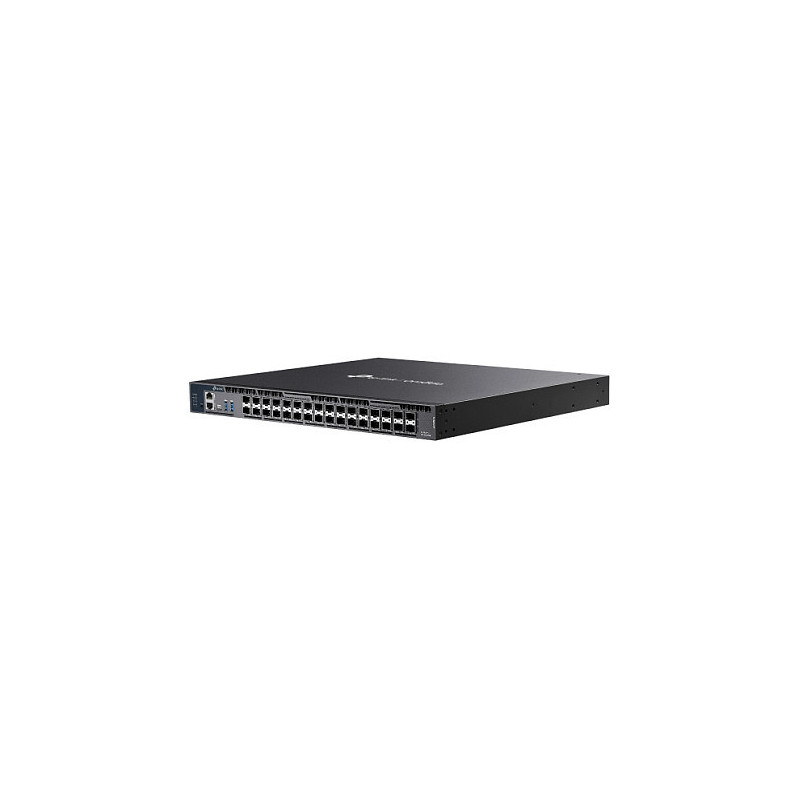

TP-Link Omada SX6632YF network switch

TP-Link Omada SX6632YF. Switch type: Managed, Switch layer: L2+/L3. Console port: RJ-45. MAC address table: 128000 entries, Switching capacity: 820 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah. Rack mounting

What This Product Does
The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.

High-speed Connectivity and Powerful Stacking
6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.

Highly Available
Internal fixed redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.

Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SX6632YF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Management features

Switch type: Managed
Switch layer: L2+/L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
SFP module slots quantity: 6
SFP+ module slots quantity: 26
USB Type-A ports quantity: 2
USB Type-C ports quantity: 1
Number of management ports: 1 pc(s)
Console port: RJ-45

Network

Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah
Feature: 10G support
Feature: Port mirroring
Feature: IP routing
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Data transmission

Switching capacity: 820 Gbit/s
Forwarding rate: 610.1 Mpps
MAC address table: 128000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 8 MB

Security

DHCP features: DHCP Option 82
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: MAC address filtering
Feature: Static port security
Feature: SSH/SSL support

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNMPv1/v2c/v3

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Black

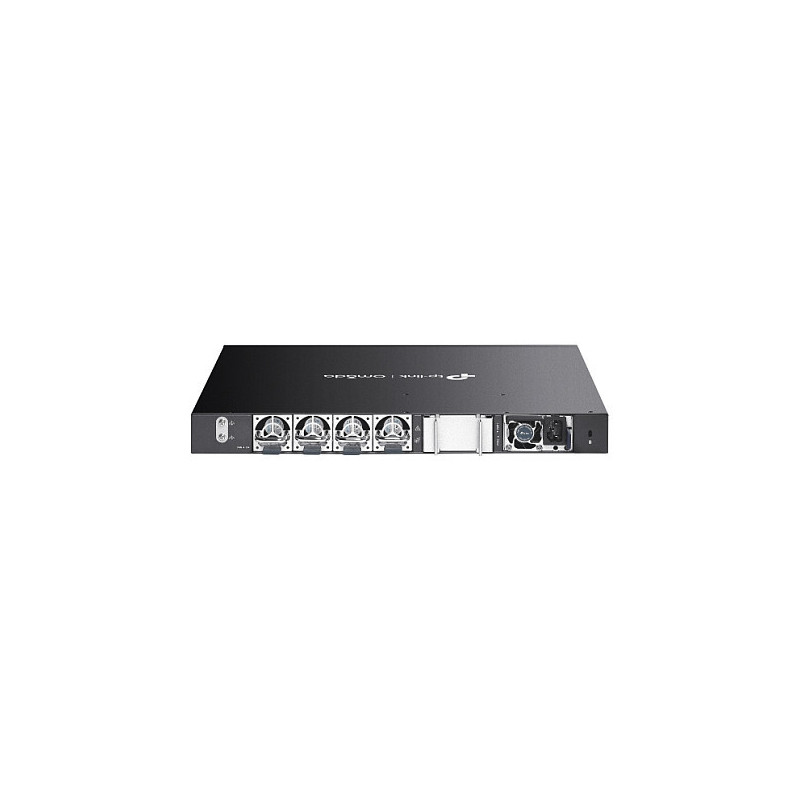

Number of fans: 4 fan(s)

Performance

Minimum system requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.

Power

Power source: AC
Feature: Redundant power supply (RPS) support
Number of power supply units: 2
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 440 mm
Depth: 380 mm
Height: 44 mm

Packaging content

Cables included: Power
Feature: Quick start guide
Feature: Rack mount kit
