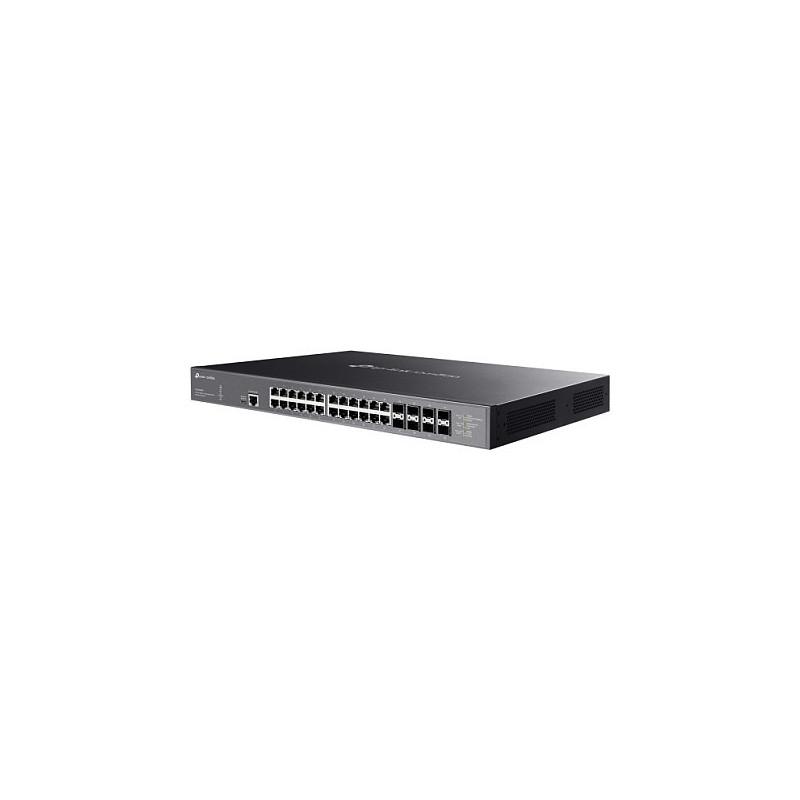

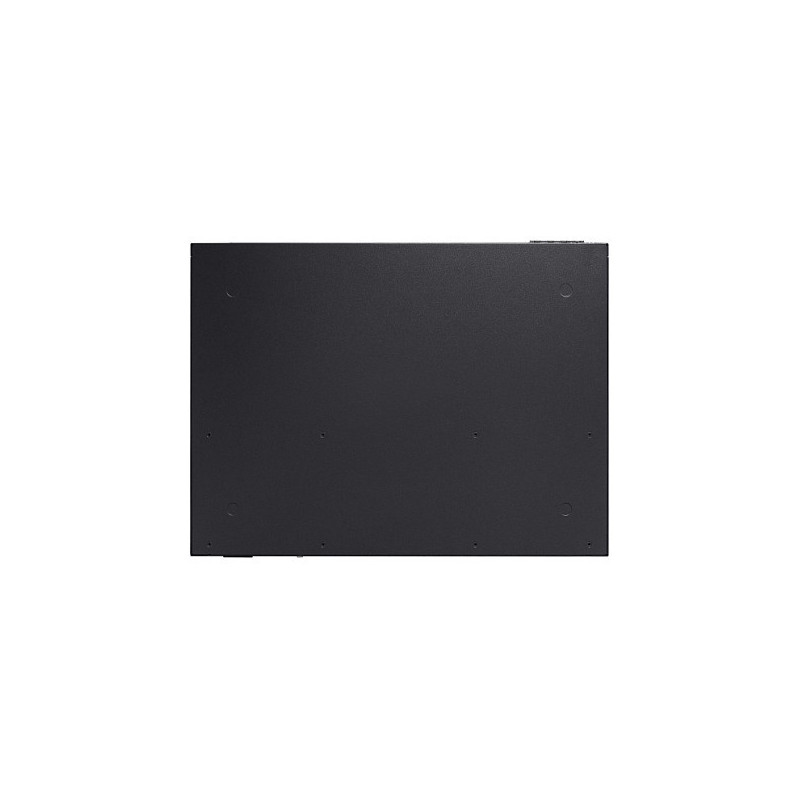

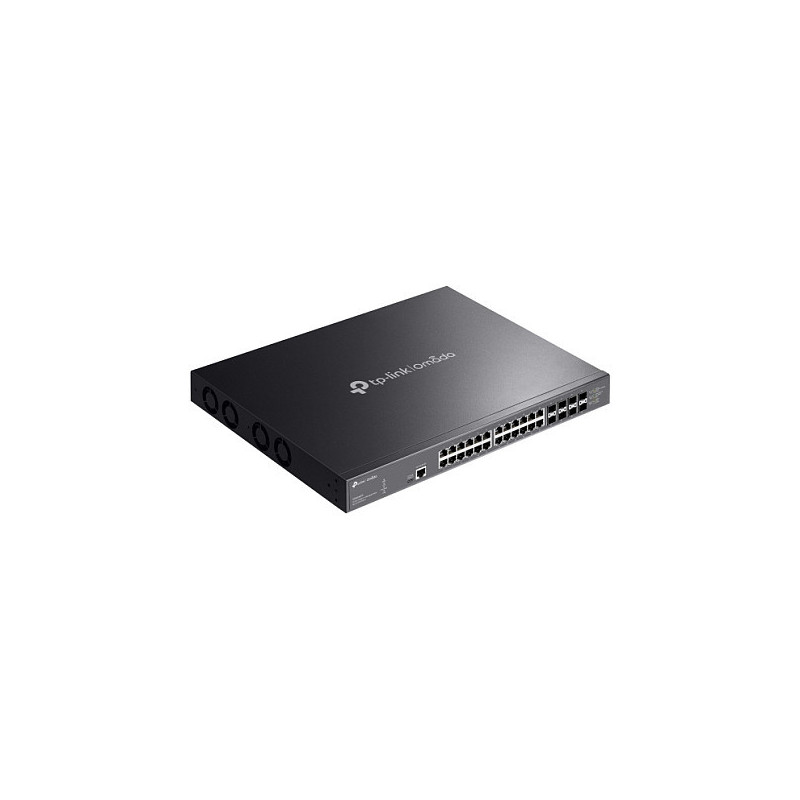

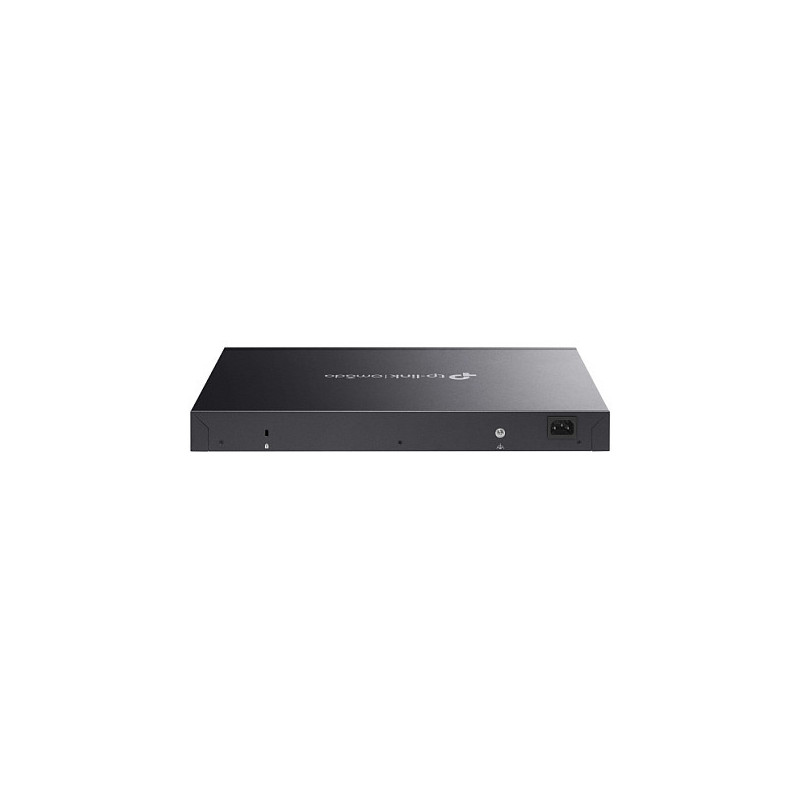

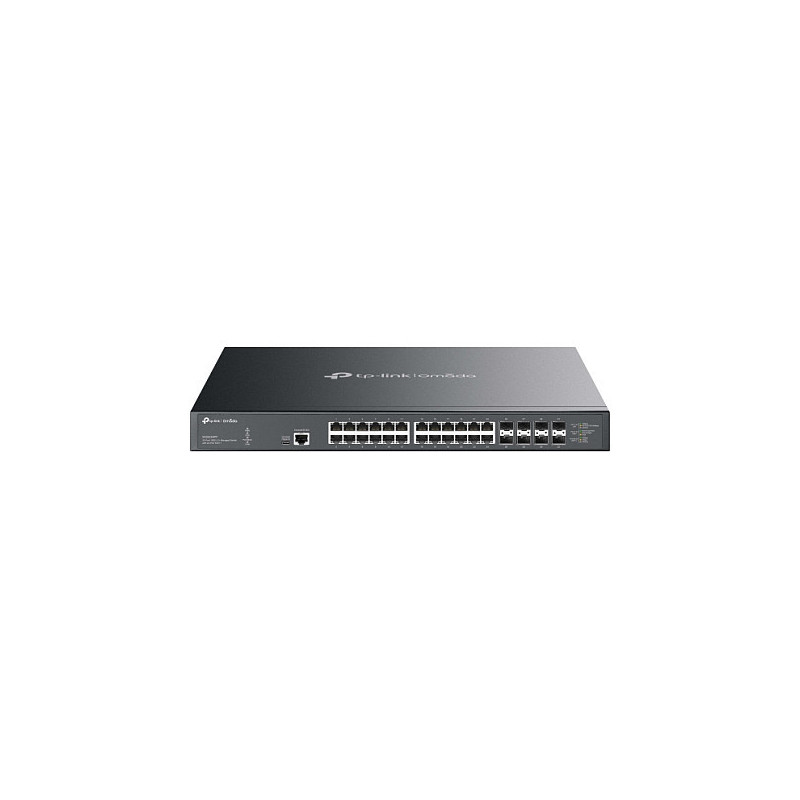

TP-Link Omada SX3832MPP network switch

TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 8, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at,.... Power over Ethernet (PoE). Rack mounting, Form factor: DIN rail

- Empowering the Real Wi-Fi 6 and Wi-Fi 7 with 10G PoE++ Ports
- Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Feature: Unified static configuration
Feature: Configuring Location Settings (CLI)
Feature: System event log
MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
Fast Ethernet (copper) ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 24
2.5G Ethernet (copper) ports quantity: 24
10G Ethernet (copper) ports quantity: 24
Installed SFP+ modules quantity: 8
Console port: RJ-45/USB Type-C

Network

Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
Feature: 10G support
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-negotiation
Feature: Ethernet Ring Protection Switching (ERPS)
Address Resolution Protocol (ARP) entries (max): 510
IPv4 routes: 48
IPv6 routes: 48
Feature: VLAN support
Virtual LAN features: MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 640 Gbit/s
Forwarding rate: 240 Mpps
MAC address table: 32000 entries
Number of queues: 8
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9
Packet buffer memory: 24 MB

Security

DHCP features: DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Feature: Static port security
Authentication: Guest VLAN
Feature: DoS attack prevention
Authentication type: AAA, RADIUS, TACACS+
Feature: CPU defense
Queue scheduling algorithms: Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support
Multicast Listener Discovery (MLD) snooping: Yes

Protocols

Feature: Device link detection protocol (DLDP)
IPv4 & IPv6 features: Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert

Design

Feature: Rack mounting
Feature: Stackable
Form factor: DIN rail
Product colour: Black
Housing material: Metal
LED indicators: Yes
Number of fans: 4 fan(s)

Performance

Feature: Firmware upgradeable
Minimum system requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Power

Power source: AC
AC input voltage: 110 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 953.7 W
Power consumption (max): 1010.2 W
Feature: Power saving mode (EEE)

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet 4PPoE (PoE++) ports quantity: 24
Power over Ethernet (PoE) power per port: 90 W
Total Power over Ethernet (PoE) budget: 770 W

Other features

Packaging content: Console Cable

Operational conditions

Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 3444.7 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm

Packaging content

Cables included: Power
Feature: Quick start guide
Feature: Rack mount kit

Packaging data

Feature: Mounting brackets included
Feature: Rubber feet
Feature: Screws included

Sustainability

Sustainability organizations: Accountability

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
