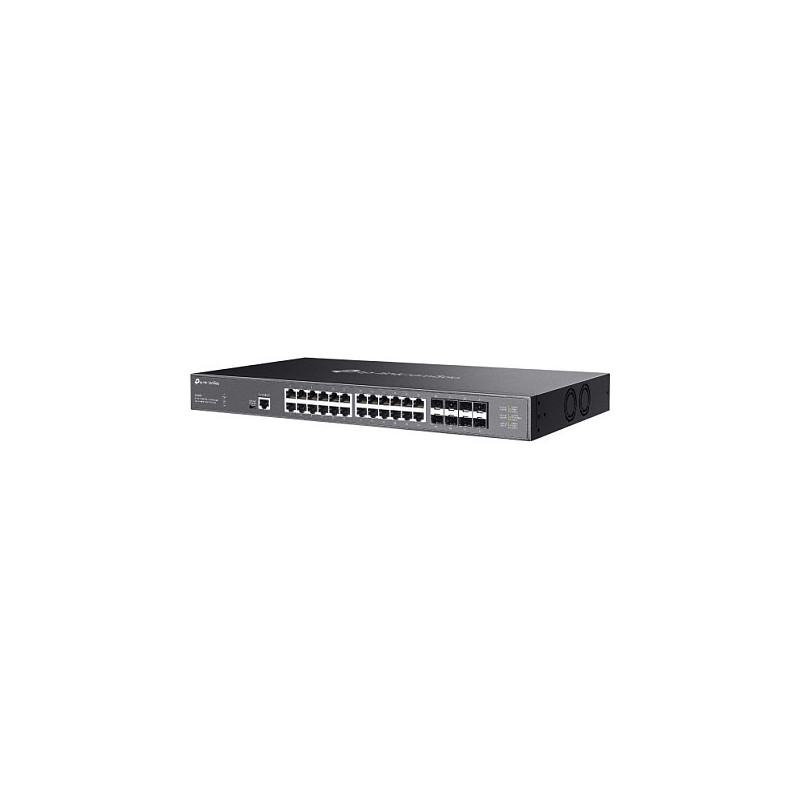

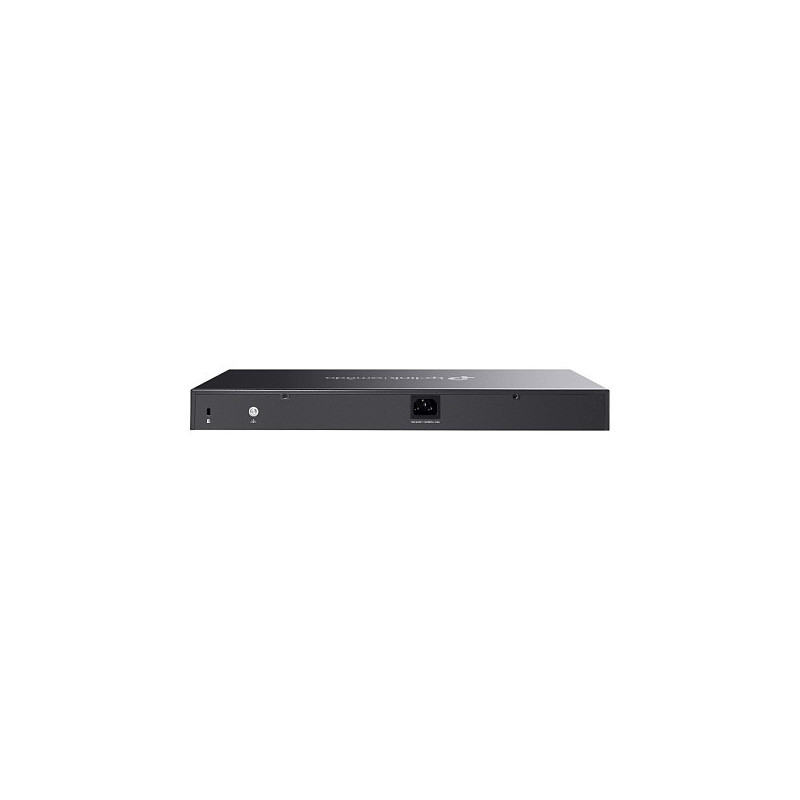

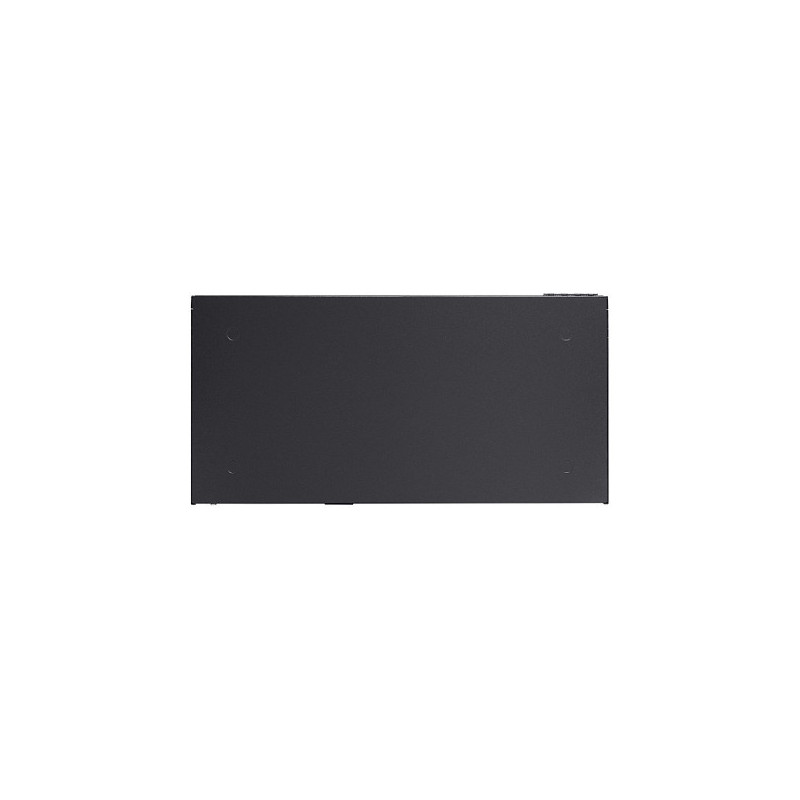

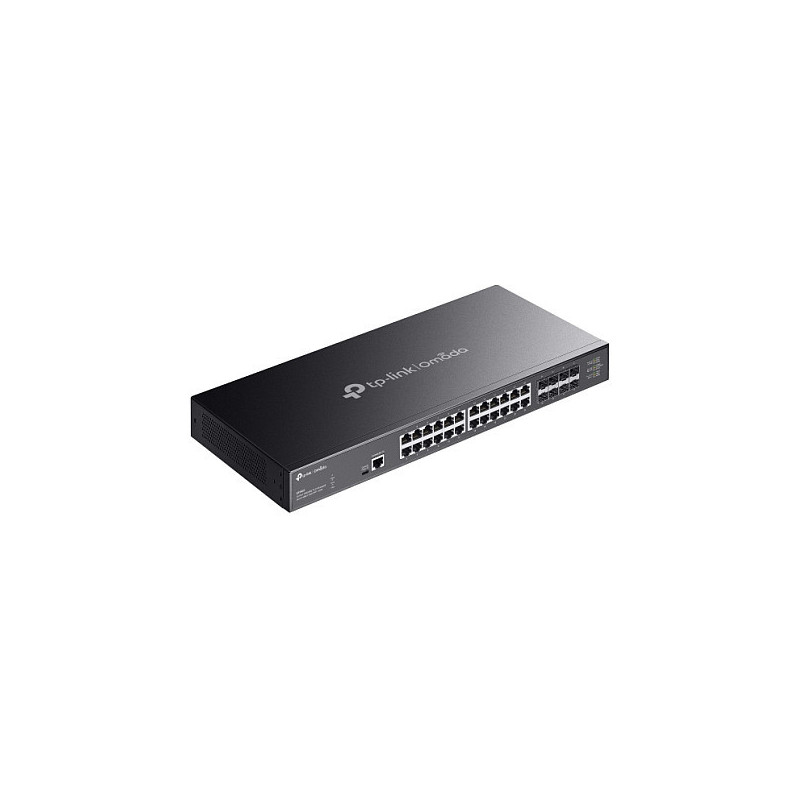

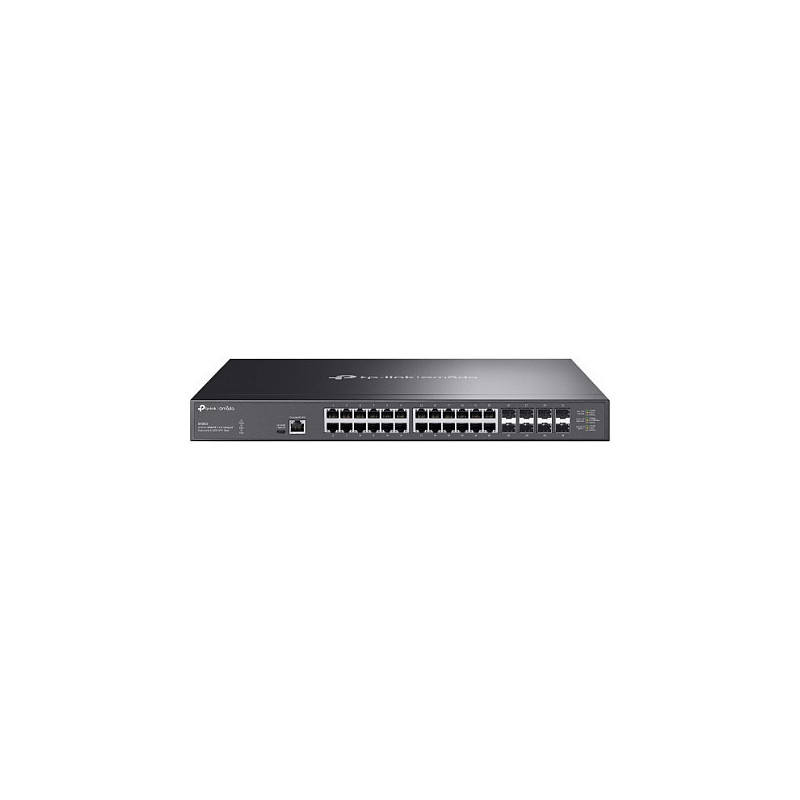

TP-Link Omada SX3832 network switch

TP-Link Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.3az. Rack mounting, Form factor: 1U

Omada 24-Port 10GBASE-T
L2+ Managed Switch with 8
10GE SFP+ Slots

- 24× 1/2.5/5/10 Gbps RJ45 Ports
- 8× 10 Gbps SFP+ Slots
- Centralized Management
- Omada App
- Zero-Touch Provisioning
- Ethernet Ring Protection Switching
- Static Routing
- Traffic Separation

Management features

Switch type: Managed
Switch layer: L2/L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 8
USB Type-C ports quantity: 1
Console port: RJ-45/USB Type-C

Network

Networking standards: IEEE 802.3az
Feature: 10G support
Feature: Port mirroring
Feature: IP routing
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Ethernet LAN data rates: 10,100 Mbit/s
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN

Data transmission

Switching capacity: 640 Gbit/s
Forwarding rate: 240 Mpps
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 24 MB

Security

DHCP features: DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: SSH/SSL support
Feature: Loop protection
Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
Authentication type: AAA, RADIUS, TACACS+

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 106.5 W

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 363.23 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 220 mm
Height: 44 mm

Packaging content

Cables included: AC, LAN (RJ-45)
Feature: Quick start guide
Feature: Rack mount kit
