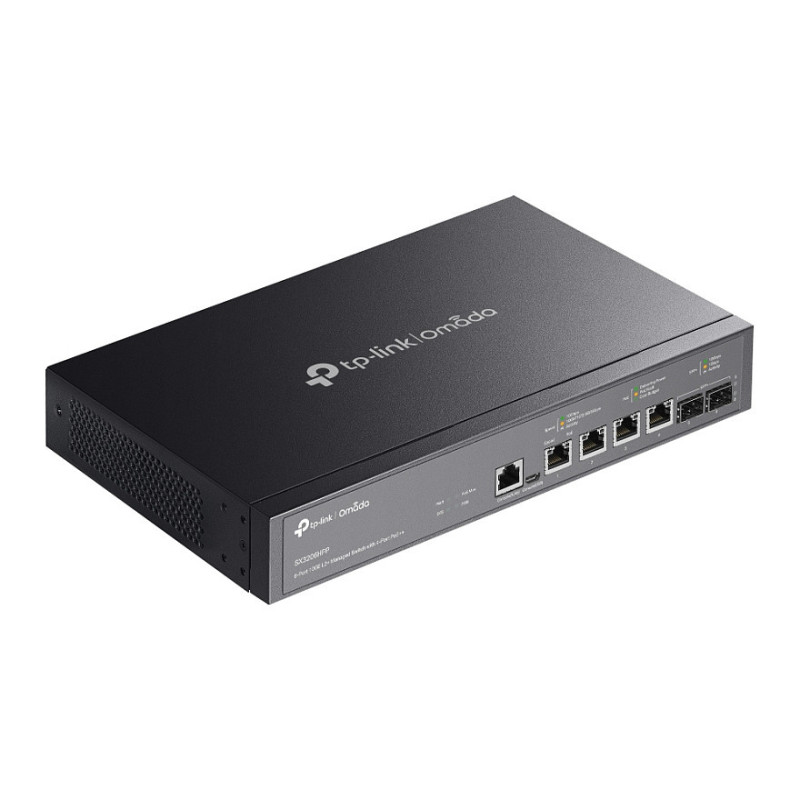

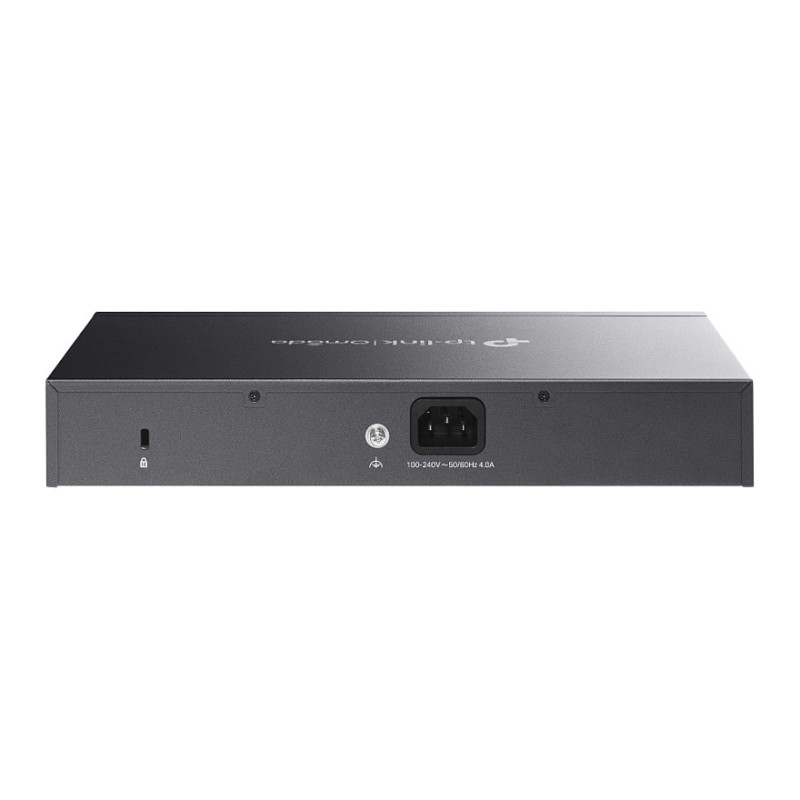

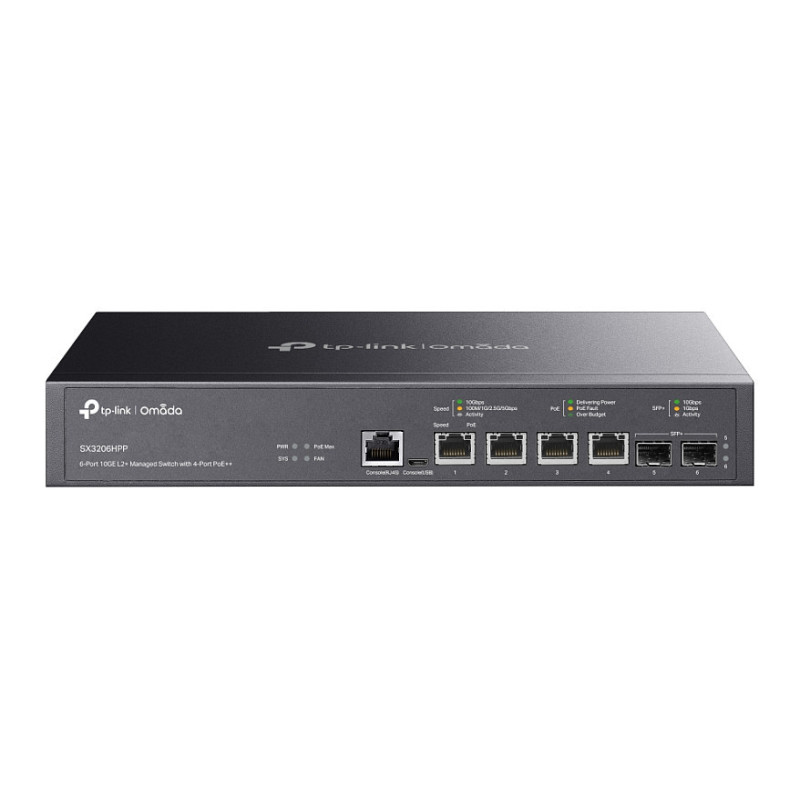

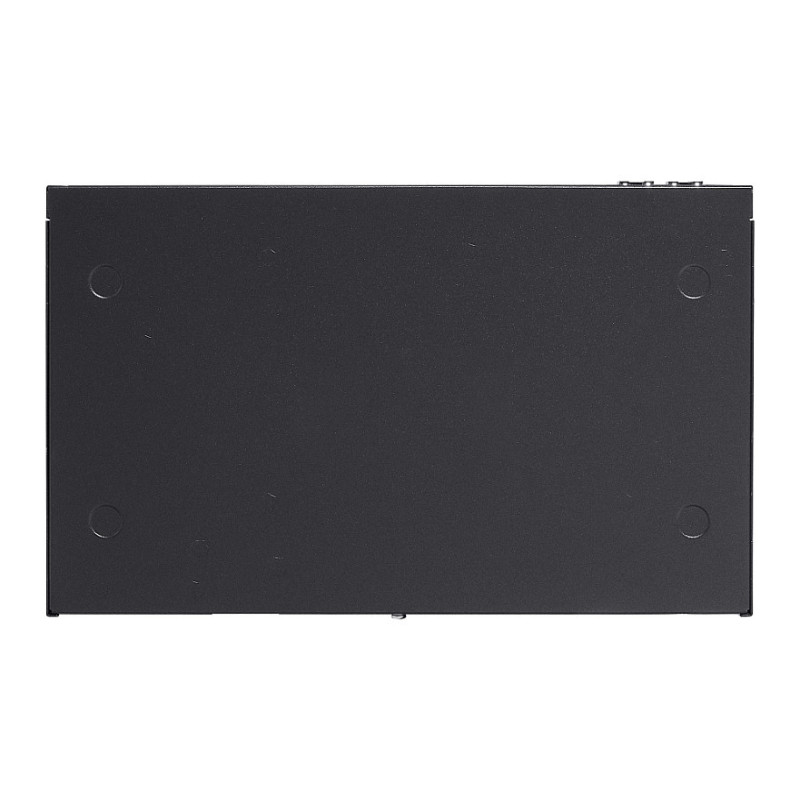

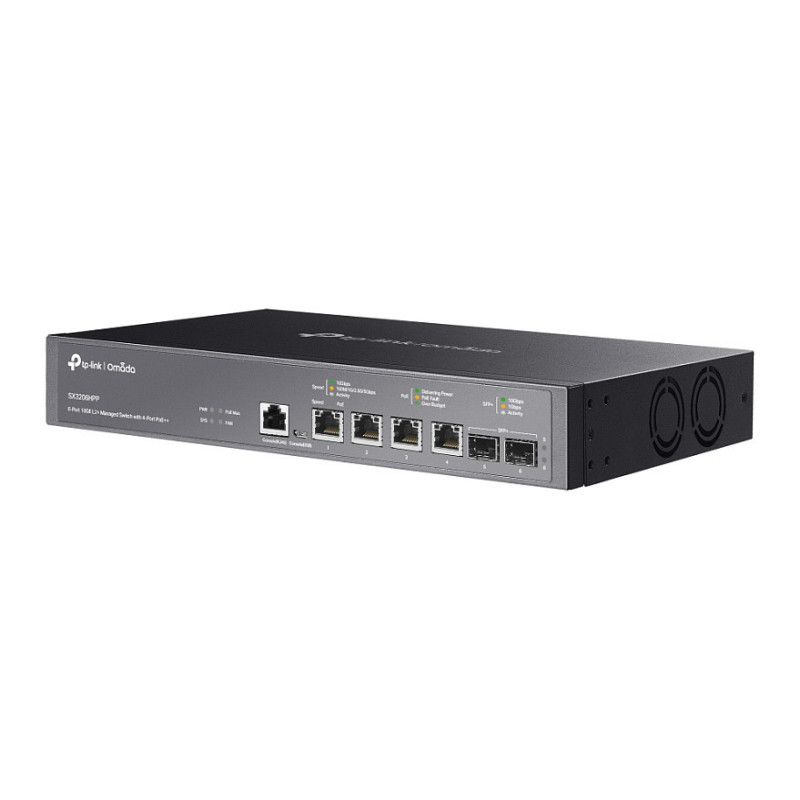

TP-Link Omada SX3206HPP network switch

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 120 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
MIB support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 2
Console port: RJ-45/Micro-USB
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Feature: 10G support
Feature: Port mirroring
Feature: IP routing
Routing entries: 512
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Feature: VLAN support
Virtual LAN features: Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 120 Gbit/s
Forwarding rate: 89.28 Mpps
MAC address table: 32000 entries
Feature: Static route
Number of static routes: 48
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 16 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS, SSL/TLS
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Authentication: Guest VLAN
Authentication type: AAA, RADIUS, TACACS+

Multicast features

Feature: Multicast support
Multicast Listener Discovery (MLD) snooping: MLD v1/v2

Protocols

Management protocols: SNMP v1/v2c/v3

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)

Performance

Minimum system requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 244.9 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 60 W
Total Power over Ethernet (PoE) budget: 200 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 835.67 BTU/h

Weight & dimensions

Width: 294 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Certificates

Certification: CE, FCC, RoHS
