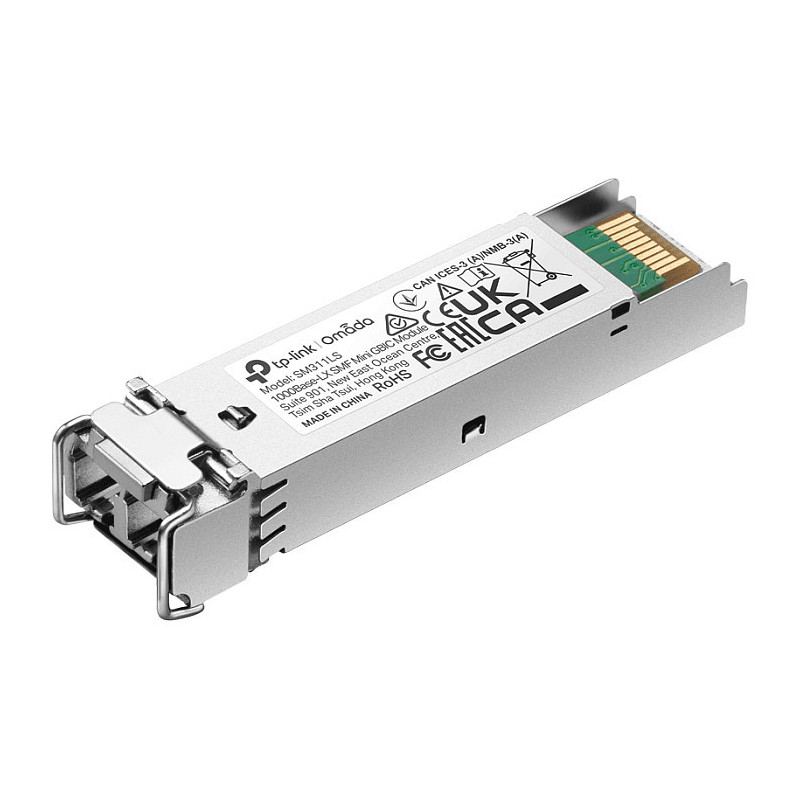

TP-Link Omada SM311LS network transceiver module

TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: mini-GBIC. Product colour: Silver, Brand compatibility: MSA Compliant. Input voltage: 3.3 V. Compliance certificates: CE, Federal Communications Commission (FCC). Width: 55.4 mm, Depth: 14.6 mm, Height: 12.9 mm

The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: mini-GBIC
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: LX
Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Networking standards: IEEE 802.3z
Fiber ethernet cabling technology: 1000BASE
Duplex system: Full
Feature: Digital Diagnostics Monitoring (DDM)

Features

Product colour: Silver
Feature: Hot-Plug support
Feature: Hot-swap
Brand compatibility: MSA Compliant

Power

Input voltage: 3.3 V

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 55.4 mm
Depth: 14.6 mm
Height: 12.9 mm

Packaging content

Quantity per pack: 1 pc(s)
Feature: Manual

Packaging data

Package width: 38 mm
Package depth: 207 mm
Package height: 38 mm
Package weight: 110 g
