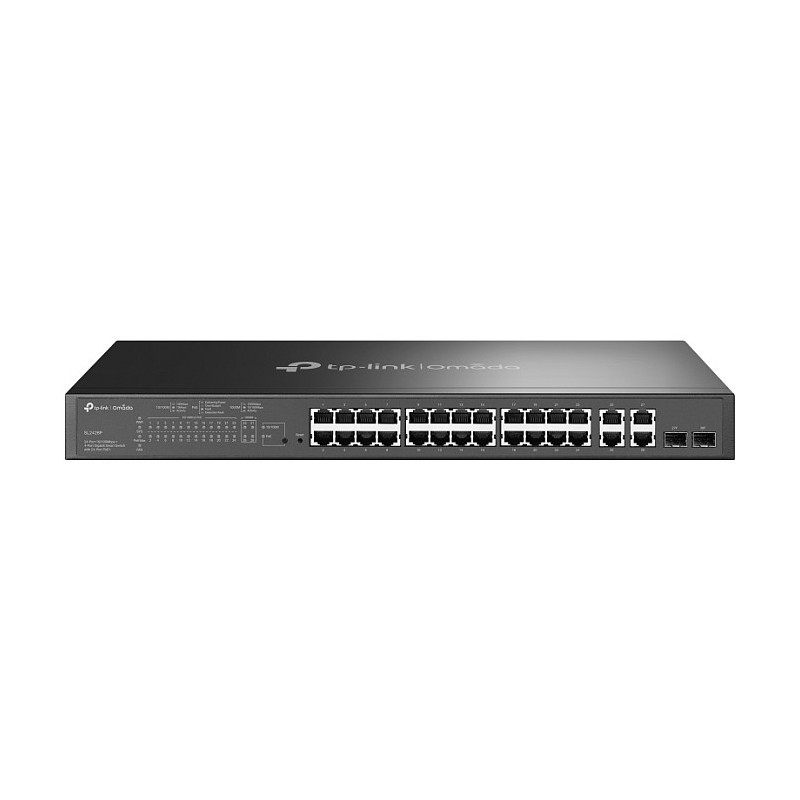

TP-Link Omada SL2428P network switch

TP-Link Omada SL2428P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
TP-Link's brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Management features

Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 4
Combo SFP ports quantity: 2

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat5, Cat5e
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Number of VLANs: 512

Data transmission

Switching capacity: 12.8 Gbit/s
Throughput: 9.5 Mpps
MAC address table: 8000 entries
Number of queues: 4
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
SSH/SSL support: Yes

Multicast features

Multicast support: Yes

Protocols

Management protocols: SNMP v1/v2c/v3, RMON, SNTP, TFTP

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Black
Number of fans: 2 fan(s)

Performance

Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Firmware upgradeable: Yes

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 291.6 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 24
Total Power over Ethernet (PoE) budget: 250 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 995.09 BTU/h

Weight dimensions

Width: 440 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Cables included: AC
Quick start guide: Yes
Rack mount kit: Yes

Certificates

Certification: CE, FCC, RoHS
