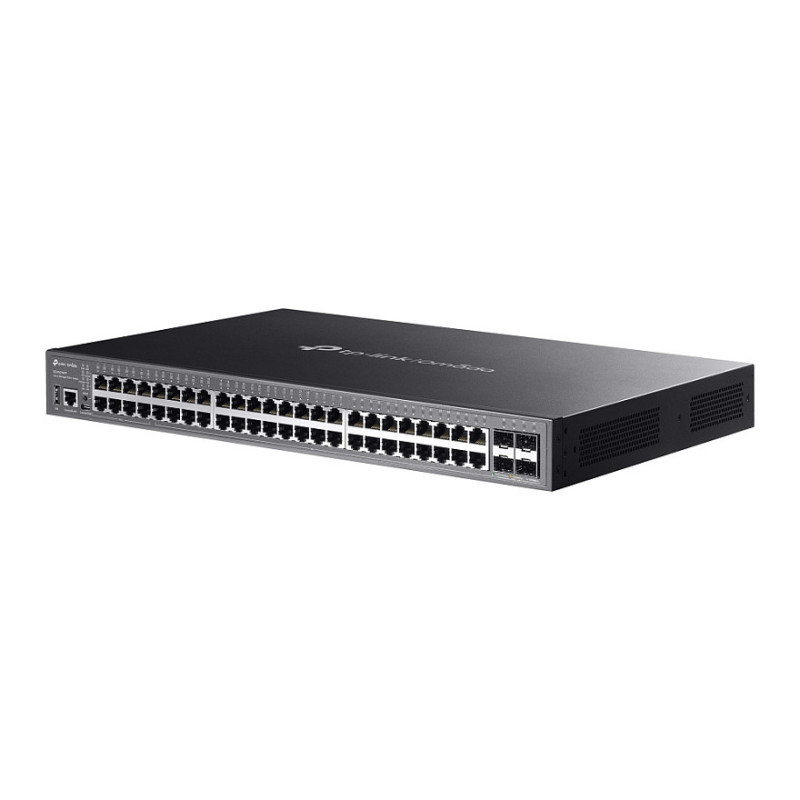

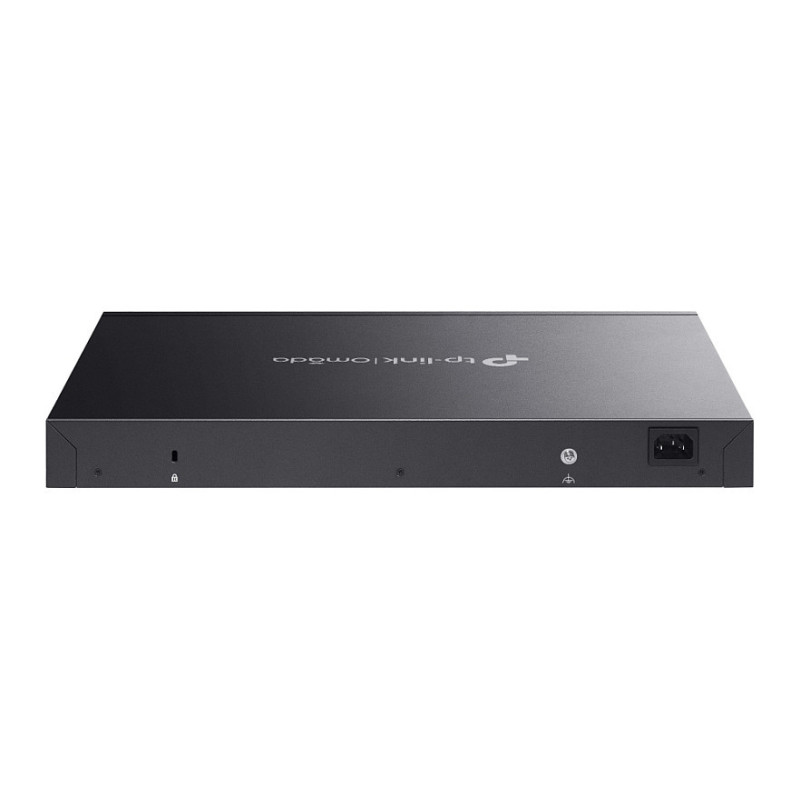

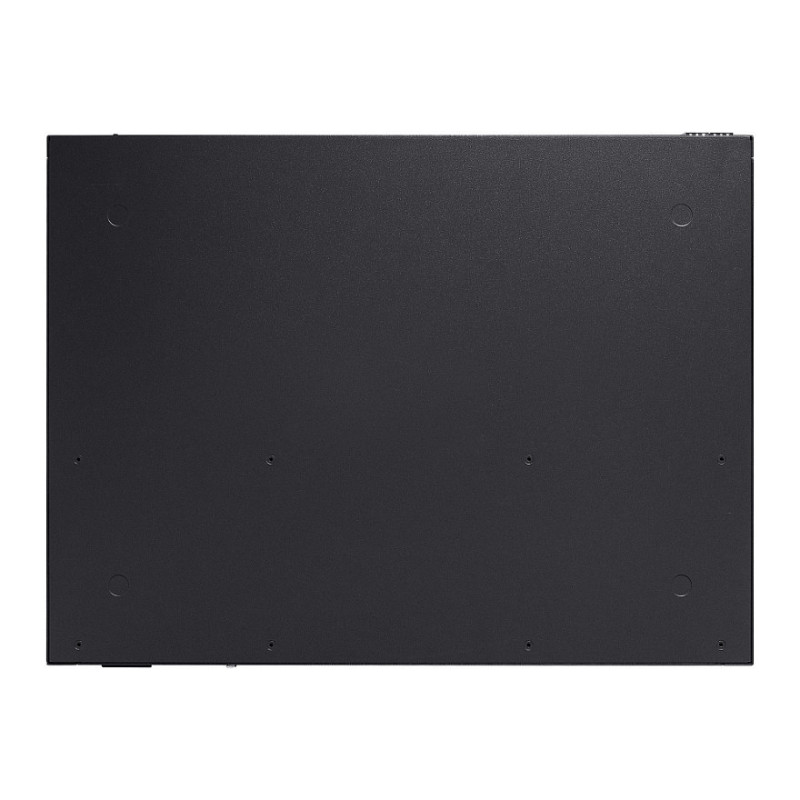

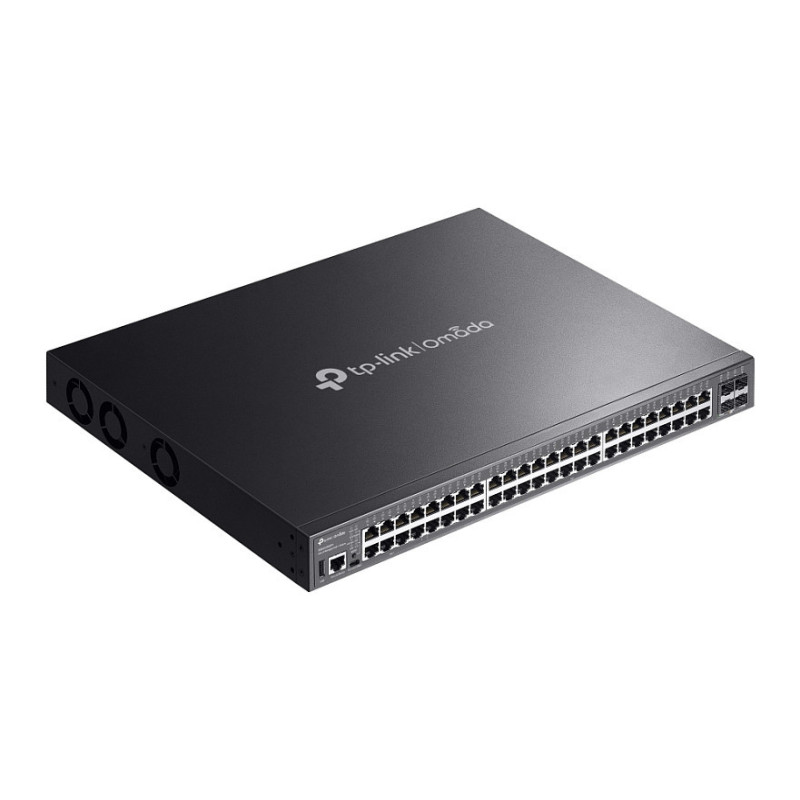

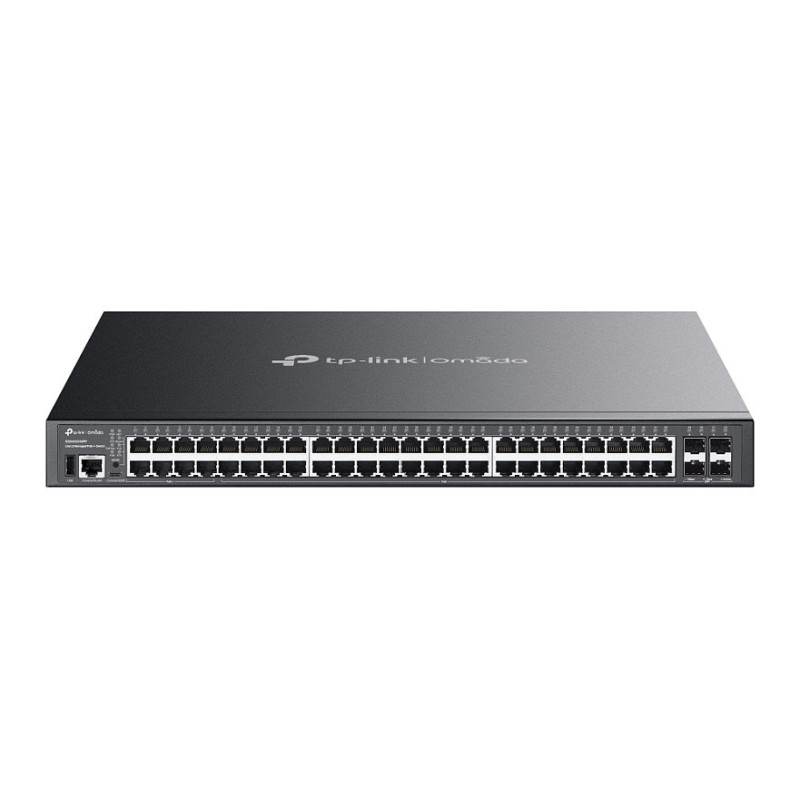

TP-Link Omada SG5452XMPP network switch

TP-Link Omada SG5452XMPP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting

What This Product Does

Omada SG5452XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 770W PoE budget,* 48× gigabit RJ45 ports (8× PoE++, 40× PoE+), 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452XMPP offers a reliable networking solution for SMEs, and ISPs.

IEEE 802.3af/at/bt-compliant Power over Ethernet

8× IEEE 802.3af/at/bt-compliant and 40× IEEE 802.3af/at-compliant PoE ports supply up to 770W total power to 802.3af, 802.3at, and 802.3bt devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.

High-speed Connectivity and Powerful Stacking

48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.

Highly Available

ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.

Enhanced Security Functions

Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG5452XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48
SFP+ module slots quantity: 4
USB Type-C ports quantity: 1
Console port: RJ-45
USB 2.0 ports quantity: 1

Network

Networking standards: IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Feature: 10G support
Feature: Port mirroring
Feature: Link aggregation
Feature: Broadcast storm control
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 176 Gbit/s
Forwarding rate: 130.94 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 12 MB

Security

DHCP features: DHCP relay, DHCP server
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SNMP, SNMPv2, SNMPv3
Feature: MAC address filtering
Feature: Static port security
Feature: SSH/SSL support
Feature: IP-MAC-Port binding
Feature: Password protection

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Black
LED indicators: Yes
Number of fans: 3 fan(s)

Performance

Physical stacking (units): 4
Feature: Built-in processor
Processor manufacturer: ARM
Processor frequency: 1200 MHz
Memory type: DRAM
Internal memory: 2000 MB
Flash memory: 512 MB
Noise level: 58.5 dB
Feature: Firmware upgradeable
Feature: Telnet
Feature: Fanless
Mean time between failures (MTBF): 275.277 h

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 893.6 W
Feature: Surge protection
Surge protection voltage: 6 kV

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
Power over Ethernet plus (PoE+) ports quantity: 40
Power over Ethernet 4PPoE (PoE++) ports quantity: 8
Total Power over Ethernet (PoE) budget: 770 W

Other features

Management level: 4
Bandwidth: 88 Gbit/s

Operational conditions

Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 3047.18 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
