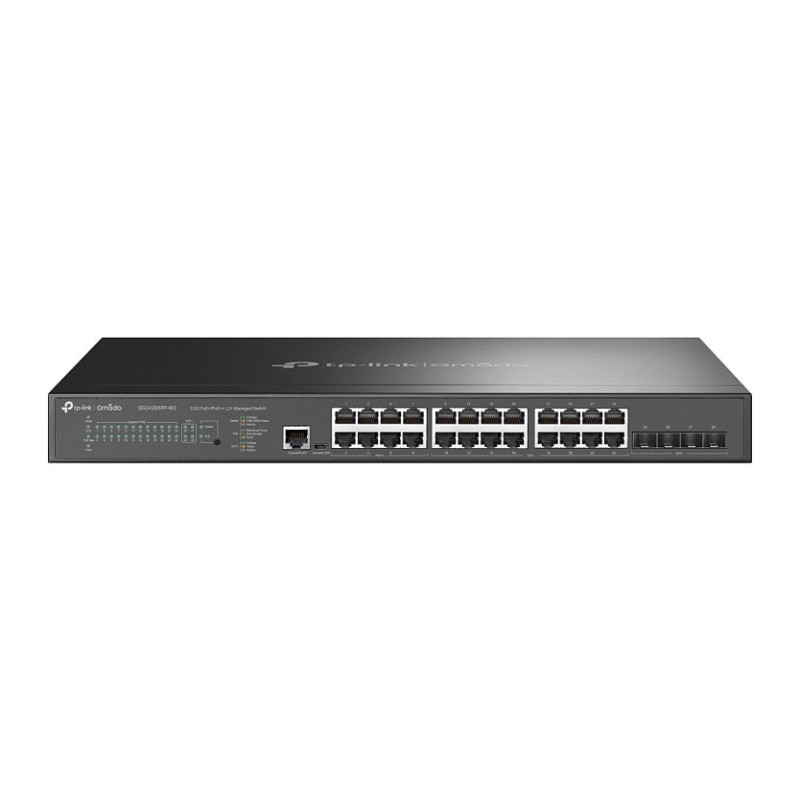

TP-Link Omada SG3428XPP-M2 network switch

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. Full duplex. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 24
SFP+ module slots quantity: 4
Console port: RJ-45/Micro-USB

Network

Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s
IPv4 routes: 48
IPv6 routes: 48
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN

Data transmission

Switching capacity: 200 Gbit/s
Forwarding rate: 148.8 Mpps
MAC address table: 32000 entries
Feature: Store-and-forward
Number of queues: 8
Feature: Static route
Number of static routes: 48
Number of IP interfaces: 32
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 16 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS, SSH, SSH-2, SSL/TLS
Feature: Static port security
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Feature: IP-MAC-Port binding
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
Feature: Password protection
Authentication type: AAA, IEEE 802.1x, RADIUS, TACACS+
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support
Multicast Listener Discovery (MLD) snooping: MLD v1/v2

Protocols

Management protocols: SNMP v1/v2c/v3
Feature: GARP VLAN Registration Protocol (GVRP)
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
LED indicators: Yes
Feature: Redundant fans support
Number of fans: 3 fan(s)

Performance

Memory type: DRAM
Internal memory: 256 MB
Flash memory: 32 MB

Power

Power source: AC/PoE
Feature: Power supply included
Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 629.1 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet 4PPoE (PoE++) ports quantity: 8
Total Power over Ethernet (PoE) budget: 500 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 2153.45 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Rack mount kit

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
