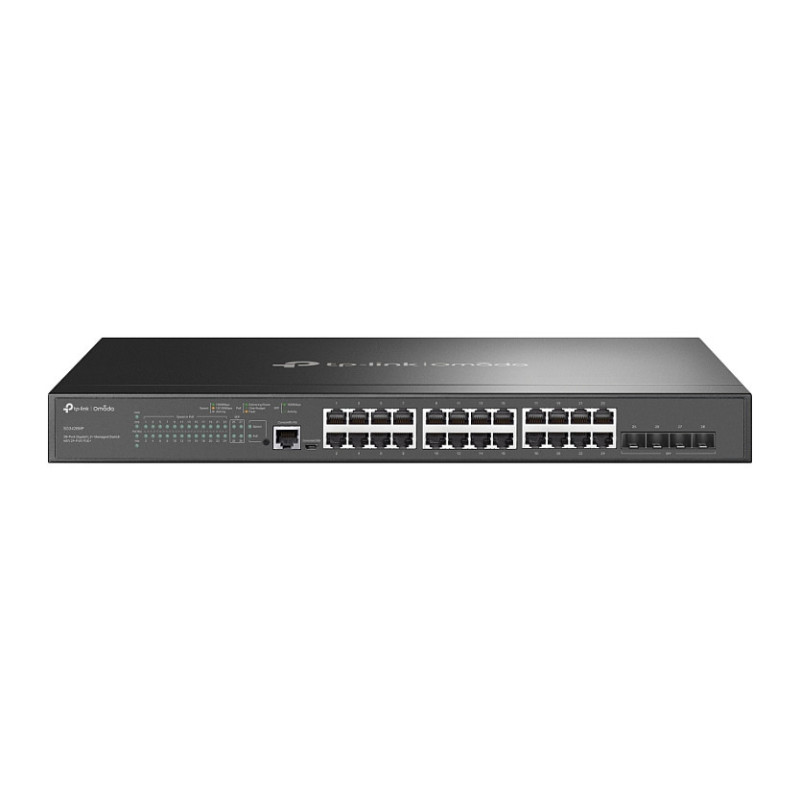

TP-Link Omada SG3428MP network switch

TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 24
SFP module slots quantity: 4
Console port: RJ-45/Micro-USB
Power connector: AC-in jack

Network

Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 1000BASE-T
Feature: Port mirroring
Feature: IP routing
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Active link detection
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 56 Gbit/s
Forwarding rate: 41.66 Mpps
MAC address table: 16000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 12 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SSH, SSL/TLS
Feature: MAC address filtering
Feature: Static port security
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Feature: IP-MAC-Port binding
Authentication: MAC-based authentication, Port-based authentication

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNMPv1/v2c/v3, LLDP/LLDP-MED
Feature: GARP VLAN Registration Protocol (GVRP)

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)

Performance

Export Control Classification Number (ECCN): EAR99

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 480.1 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 384 W

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1637.14 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm

Packaging content

Feature: Quick start guide
Feature: User guide

Certificates

Certification: CE, FCC, RoHS
