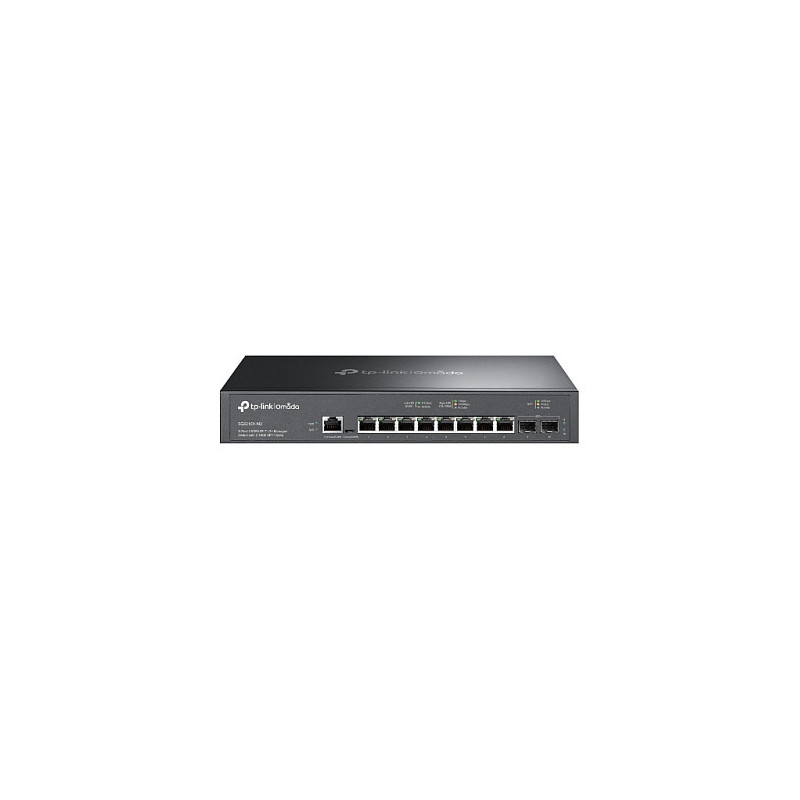

TP-Link Omada SG3210X-M2 network switch

TP-Link Omada 8-Port 2.5G L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w. Power connector: AC-in jack. Rack mounting, Form factor: 1U

Ultrafast 2.5G Managed Switch with 10G Uplink for Futuristic Network
SG3210X-M2

10G Lightning-Fast
Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

2.5G Ports
for WiFi 7/6E/6
8× 2.5 Gbps Ports Uplock the Full Potential of WiFi 7/6E/6 APs

Centralized Cloud
Management
SDN Solutions Integration for a Highly Efficient Network

Advanced L2+
Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More

Enterprise Switch
with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.

Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices. Auto-negotiation speed connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including desktop, 4K video, 2.5G Wi-Fi 7/6E/6 APs, 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, and more.

Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Management features

Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: Traffic classification
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
SFP+ module slots quantity: 2
Console port: RJ-45/micro-USB
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Feature: 10G support
Feature: Port mirroring
Feature: IP routing
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: Head-of-line (HOL) blocking
Ethernet LAN data rates: 100,1000,2500 Mbit/s
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 80 Gbit/s
Forwarding rate: 59.52 Mpps
MAC address table: 16000 entries
Feature: Static route
Number of static routes: 48
Number of IP interfaces: 16
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 12 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: HTTPS, SSH, SSH-2, SSL/TLS
Feature: MAC address filtering
Feature: Static port security
Feature: SSH/SSL support
Feature: Loop protection
Feature: BPDU filtering/protection
Feature: IP-MAC-Port binding
Authentication: MAC-based authentication, Port-based authentication
Feature: Password protection
Authentication type: AAA, TACACS+
Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support
Multicast Listener Discovery (MLD) snooping: Y

Protocols

Management protocols: SNMPv1/v2c/v3, SNTP
Feature: GARP VLAN Registration Protocol (GVRP)

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)

Performance

Feature: Fanless

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 15 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 51.18 BTU/h

Weight & dimensions

Width: 294 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Cables included: AC
Feature: Quick start guide

Packaging data

Package type: Box
Package width: 528 mm
Package depth: 250 mm
Package height: 80 mm
Package weight: 2.84 kg

Certificates

Certification: CE, FCC, RoHS

Logistics data

Harmonized System (HS) code: 85176990
