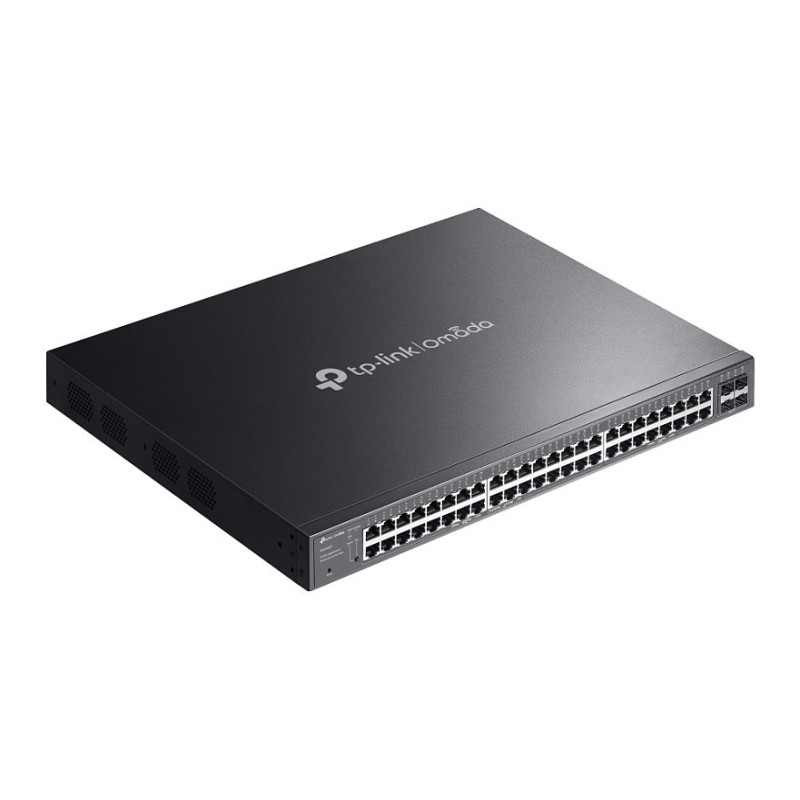

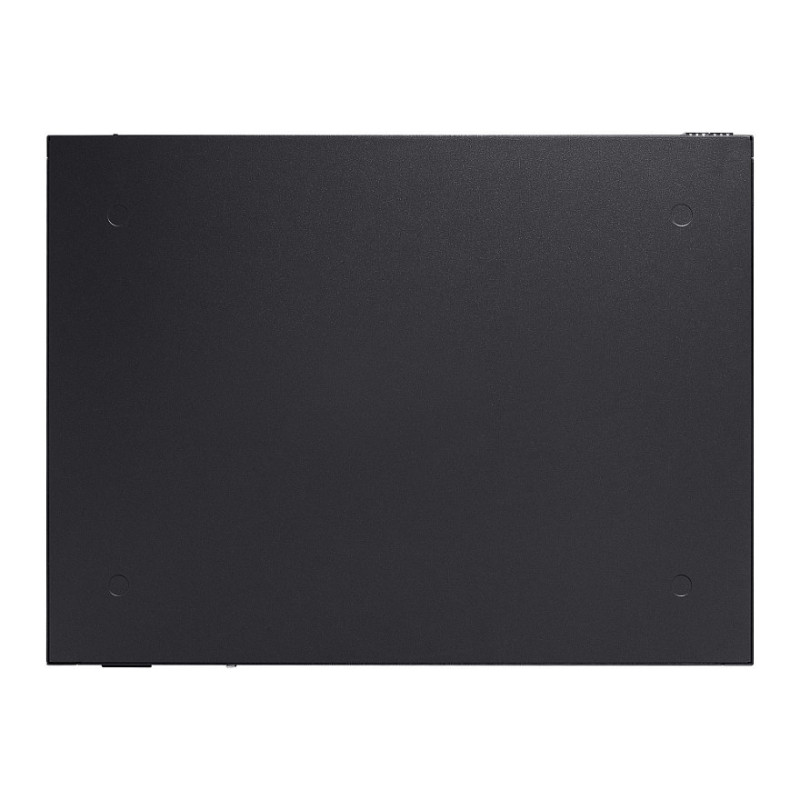

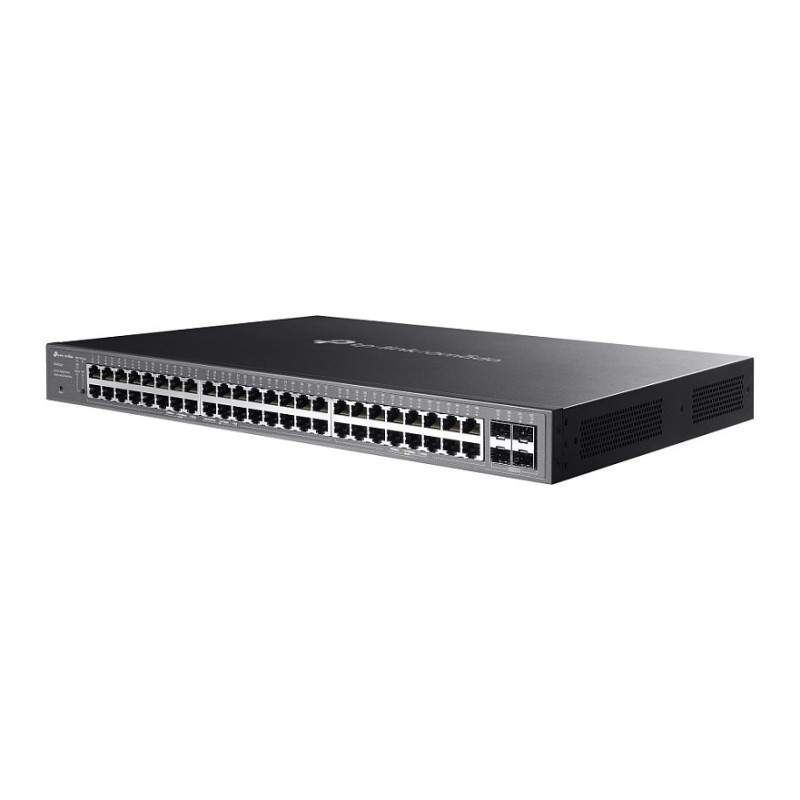

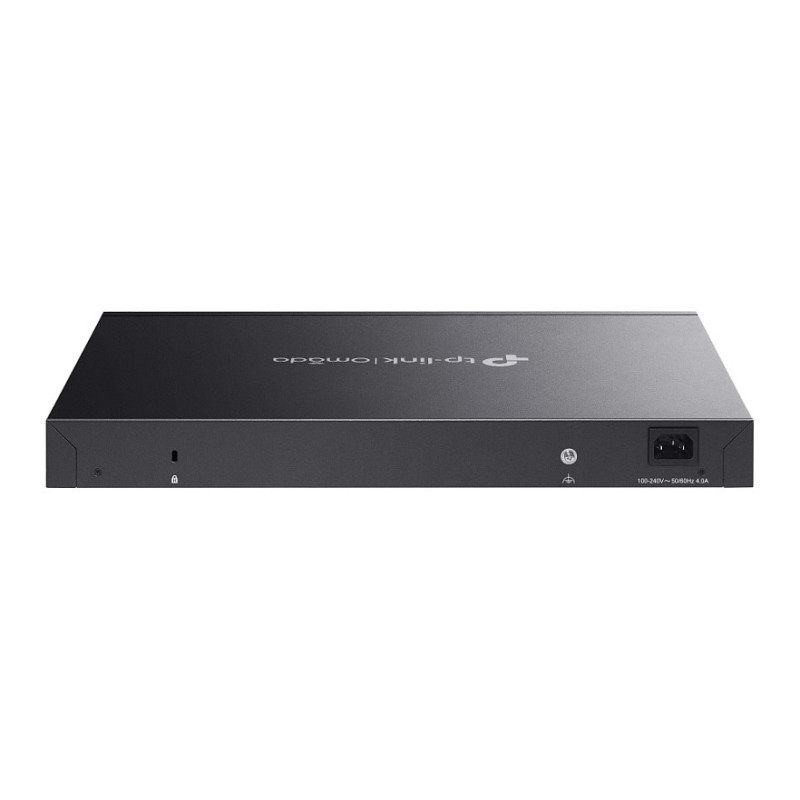

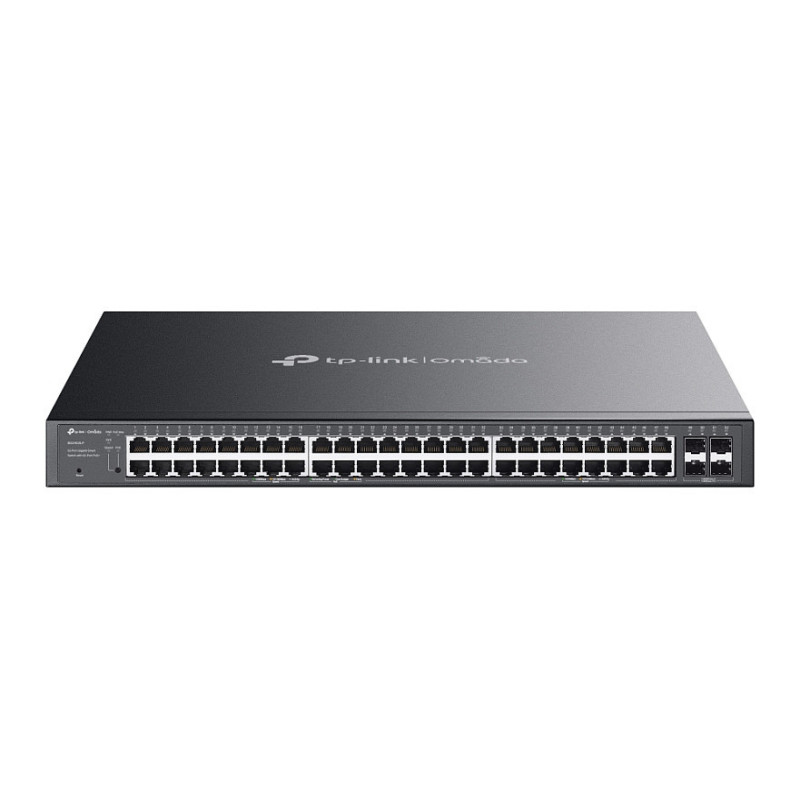

TP-Link Omada SG2452LP network switch

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Power over Ethernet, Flexible Network Deployment

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Management features

Switch type: Managed
Switch layer: L2/L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log
MIB support: Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3x
Feature: Port mirroring
Feature: IP routing
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Active link detection
Feature: VLAN support

Data transmission

Switching capacity: 104 Gbit/s
Forwarding rate: 77.37 Mpps
MAC address table: 16000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 9000

Security

DHCP features: DHCP relay, DHCP server
Feature: IGMP snooping
Security algorithms: SNMP, SNMPv2, SNMPv3
Feature: MAC address filtering
Feature: SSH/SSL support
Feature: Loop protection
Authentication type: RADIUS

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
LED indicators: Yes

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 304.5 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 32
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 230 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1035.4 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm
