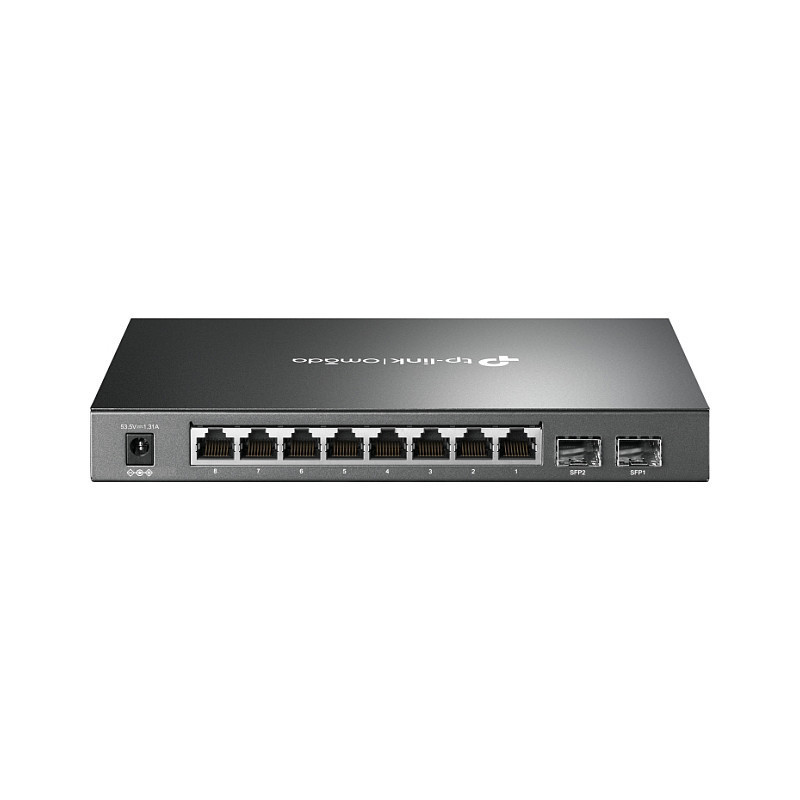

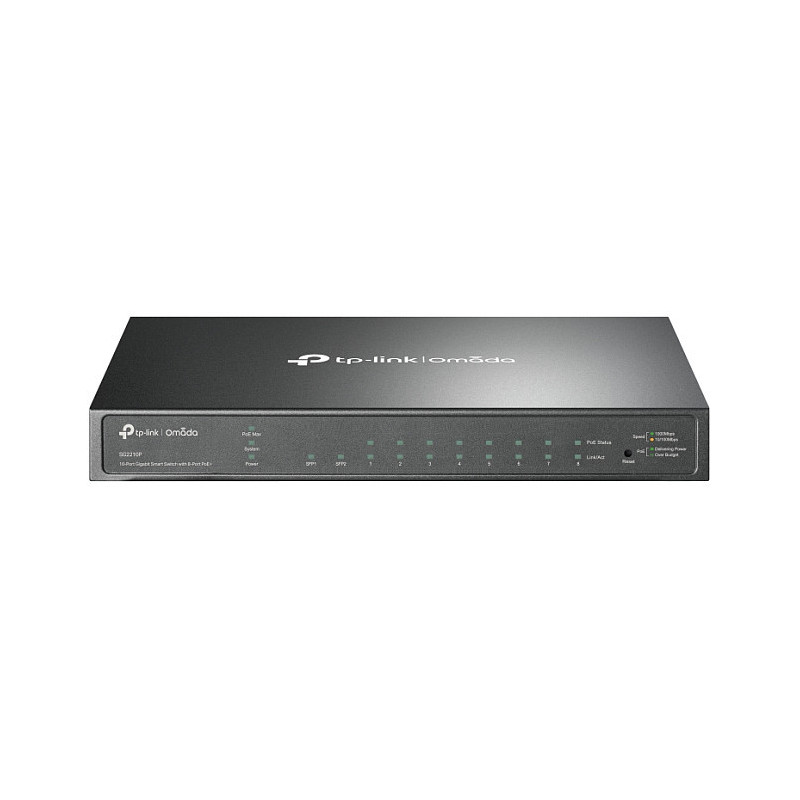

TP-Link Omada SG2210P network switch

TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE)

TP-Link's brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Management features

Switch type: Managed
Switch layer: L2/L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Power connector: DC-in jack

Network

Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-negotiation
Feature: VLAN support

Data transmission

Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

Feature: Access Control List (ACL)
Feature: IGMP snooping
Feature: Static port security
Feature: SSH/SSL support
Feature: BPDU filtering/protection
Feature: IP-MAC-Port binding
Authentication: MAC-based authentication, Port-based authentication

Multicast features

Feature: Multicast support
Multicast Listener Discovery (MLD) snooping: Y

Protocols

IPv4 & IPv6 features: Dual stack IPv4/IPv6

Design

Product colour: Black
LED indicators: Yes

Performance

Feature: Firmware upgradeable

Power

Power source: DC/PoE
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 77.8 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 209 mm
Depth: 126 mm
Height: 26 mm

Packaging content

Cables included: AC
Feature: Manual

Certificates

Certification: CE, FCC, RoHS
