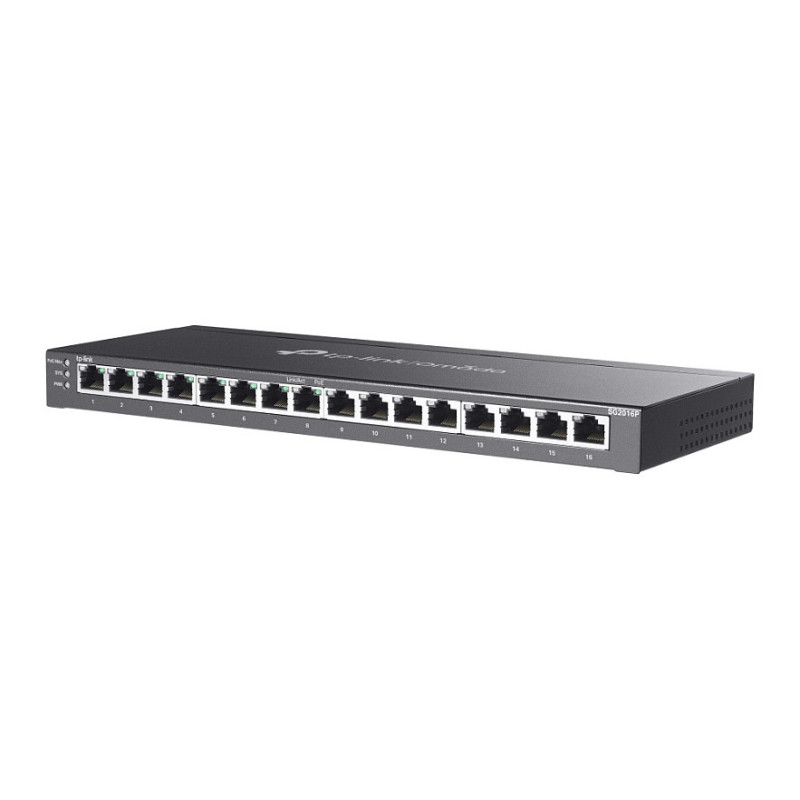

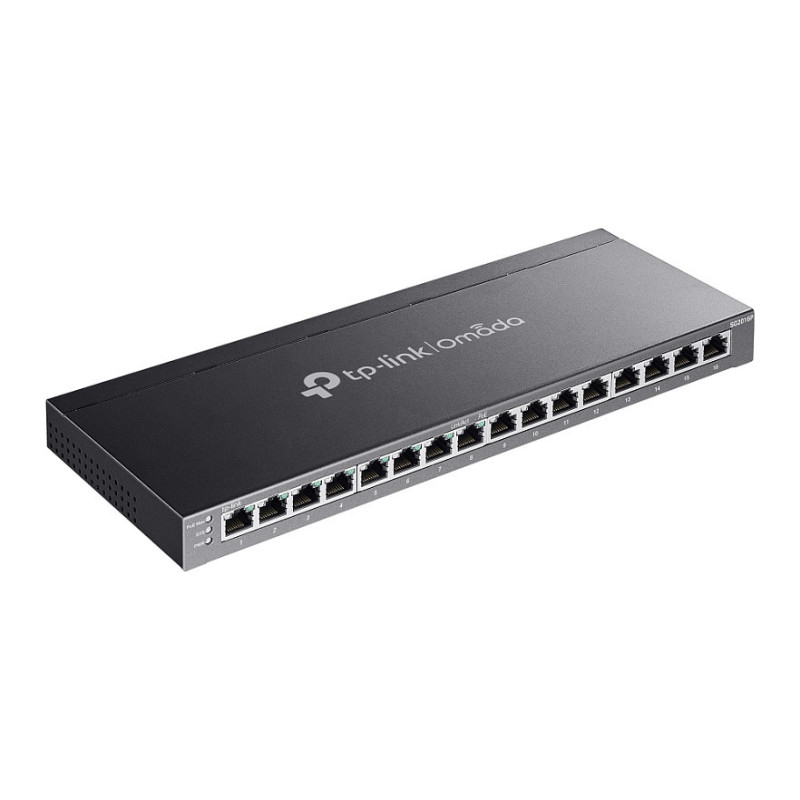

TP-Link Omada SG2016P network switch

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE.... DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting
TP-Link's brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Management features

Switch type: Managed
Switch layer: L2/L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB support: RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

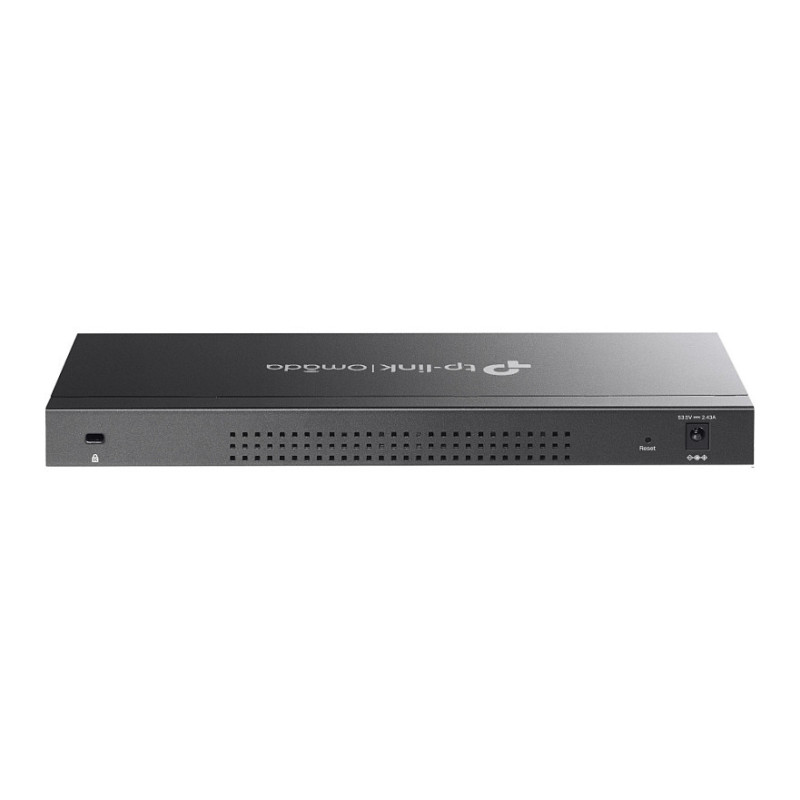

Power connector: DC-in jack

Network

Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Auto-negotiation: Yes
VLAN support: Yes
Virtual LAN features: Multicast VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 32 Gbit/s
Forwarding rate: 23.81 Mpps
MAC address table: 8000 entries
Number of queues: 8
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
Security algorithms: EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
MAC address filtering: Yes
SSH/SSL support: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
MAC address entries: Dynamic MAC address entries, Static MAC address entries

Multicast features

Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: MLD v1, MLD v2

Protocols

Supported network protocols: ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 IPv6 features: Dual stack IPv4/IPv6

Design

Rack mounting: Yes
Product colour: Black

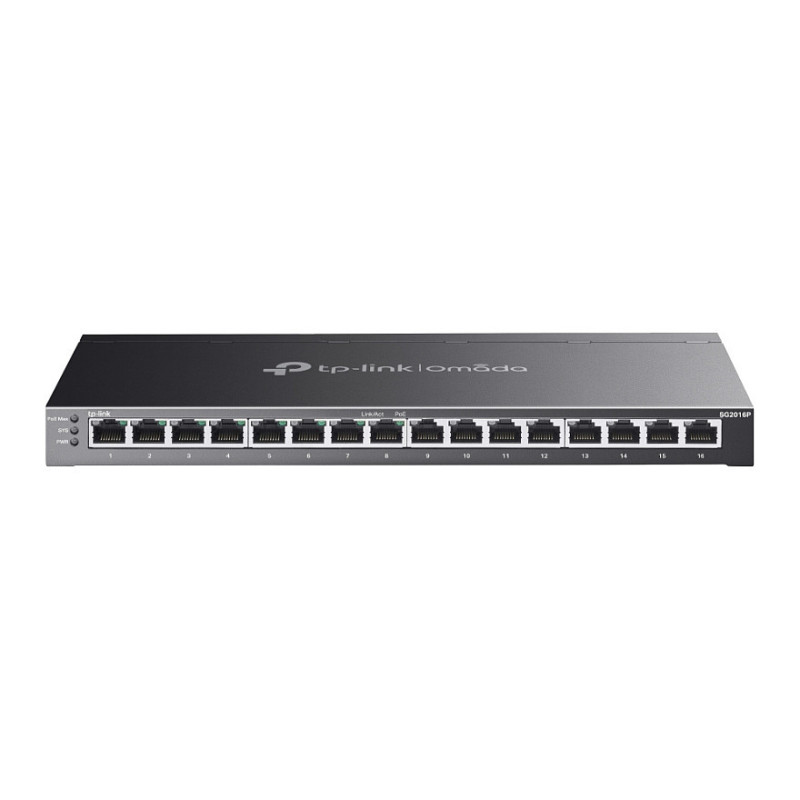

LED indicators: PoE, Power, System

Performance

Firmware upgradeable: Yes
Fanless: Yes

Power

Power source: DC/PoE
DC input voltage: 53.5 V
Power consumption (max): 146.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 120 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 499.98 BTU/h

Weight dimensions

Width: 286 mm
Depth: 111.7 mm
Height: 25.4 mm

Packaging content

Cables included: AC
Manual: Yes

Certificates

Certification: CE, FCC, RoHS
