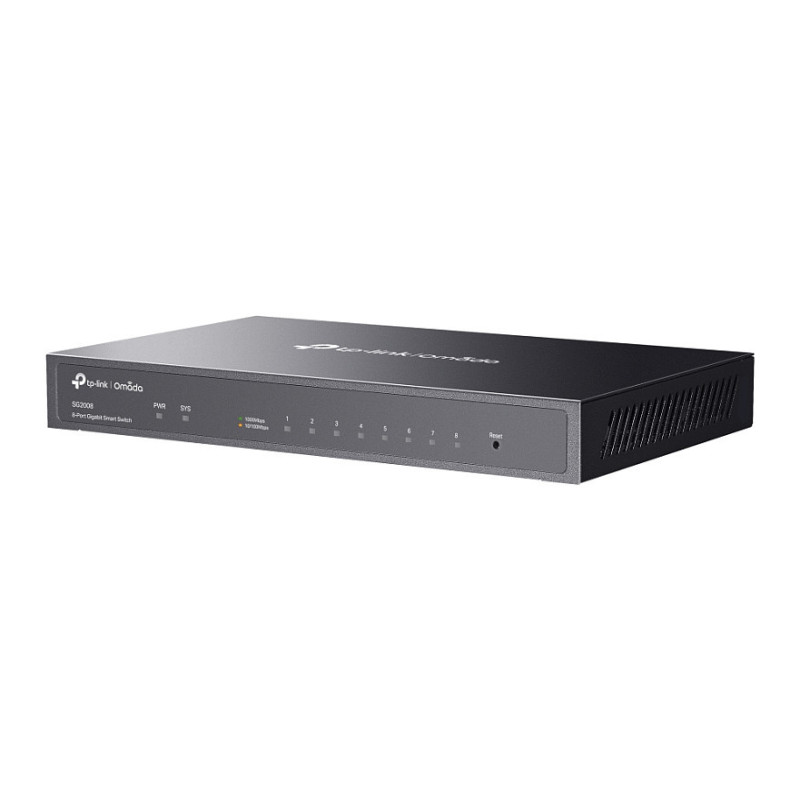

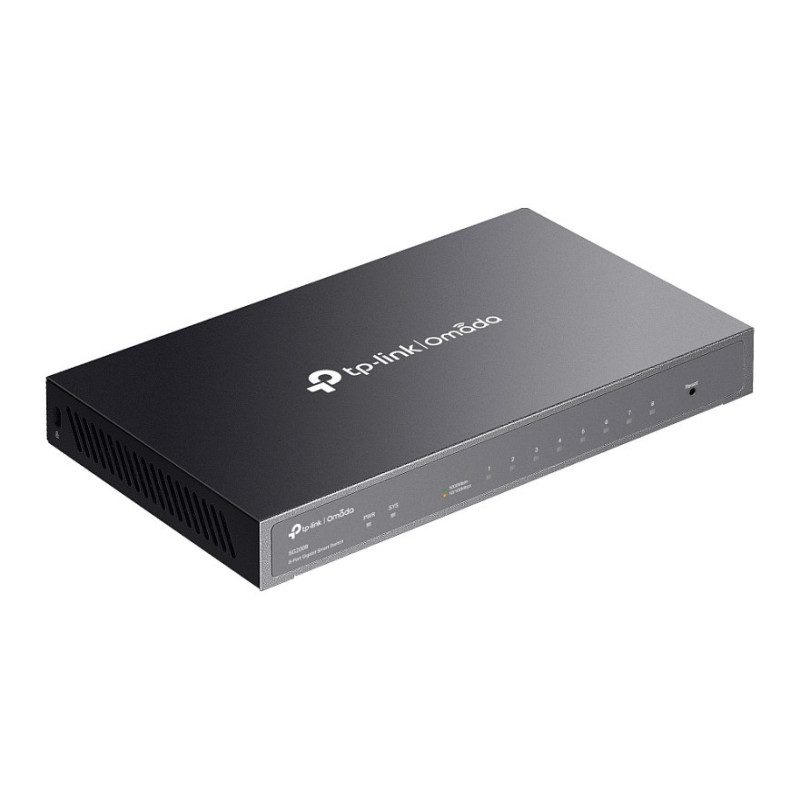

TP-Link Omada SG2008 network switch

TP-Link Omada 8-Port Gigabit Smart Switch. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE.... Power connector: DC-in jack. Wall mountable

TP-Link's brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

Management features

Switch type: Managed
Switch layer: L2/L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

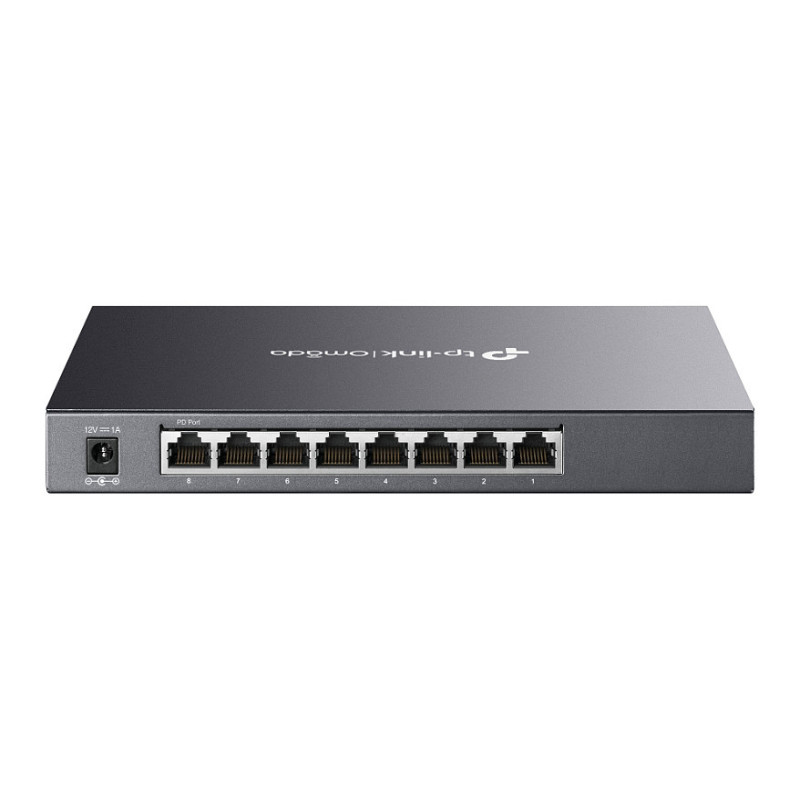

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 16 Gbit/s
Forwarding rate: 11.9 Mpps
MAC address table: 8000 entries
Feature: Static route
Number of static routes: 32
Number of IP interfaces: 16
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SSH, SSH-2, SSL/TLS
Feature: SSH/SSL support
Feature: BPDU filtering/protection
Feature: IP-MAC-Port binding

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNMPv1/v2c/v3, SNTP
Feature: GARP VLAN Registration Protocol (GVRP)

Design

Product colour: Black
LED indicators: Yes

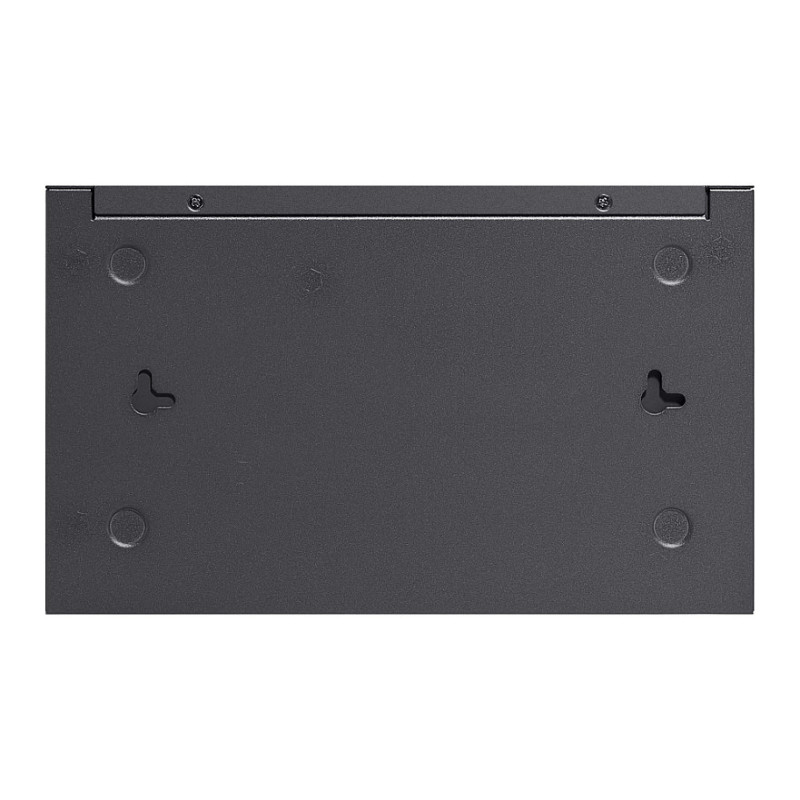

Feature: Wall mountable

Performance

Feature: Fanless

Power

Power source: DC
Feature: Power supply included
Input current: 1 A
Input voltage: 12 V
Power consumption (max): 6.4 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 21.84 BTU/h

Weight & dimensions

Width: 209 mm
Depth: 126 mm
Height: 26 mm

Packaging content

Cables included: AC
Feature: User guide

Certificates

Certification: CE, FCC, RoHS
