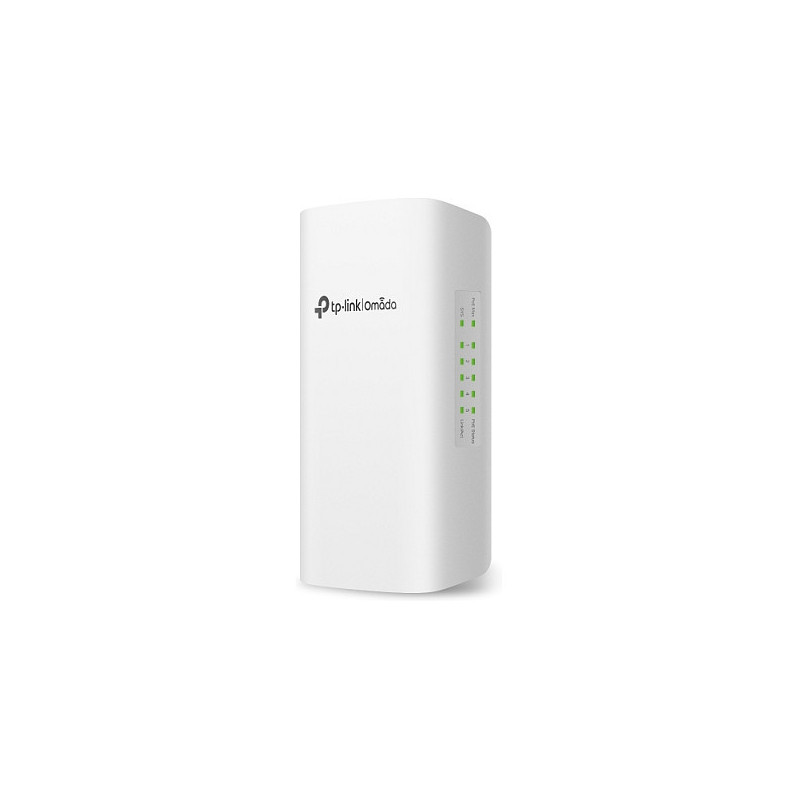

TP-Link Omada SG2005P-PD network switch

TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Form factor: Desktop

PoE-Powered PoE Switch for
Simplified Outdoor Network Deployment
Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds
Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.

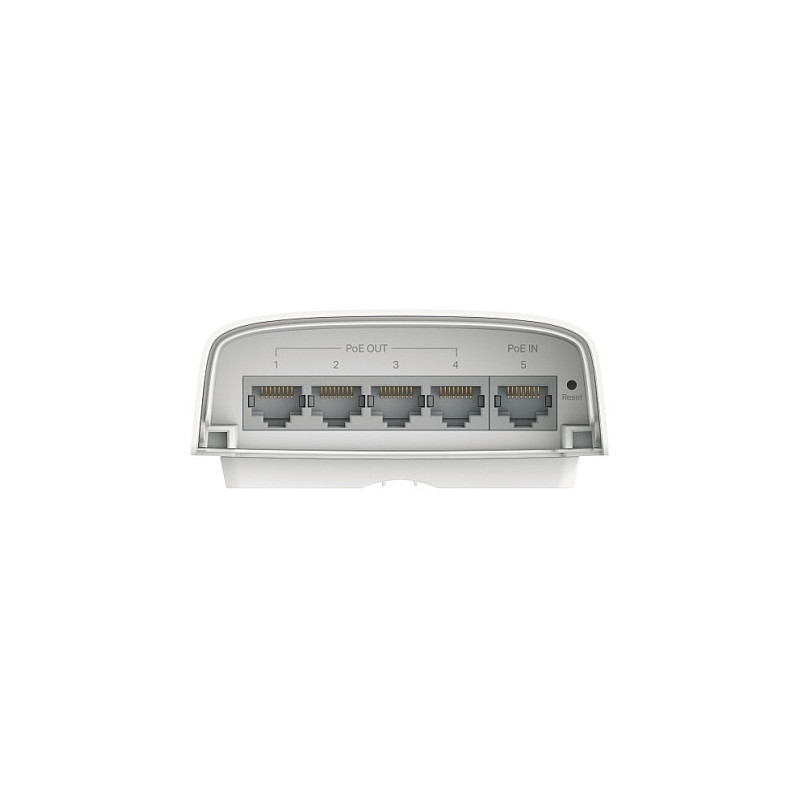

One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports
Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.

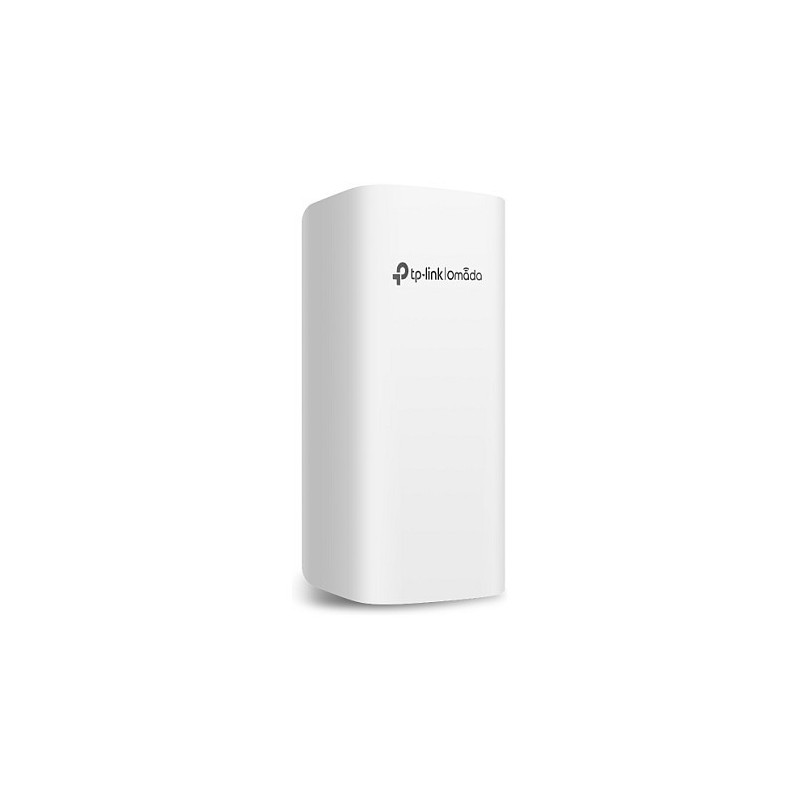

Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.

Easy Installation to Flexibly Fit Your Needs

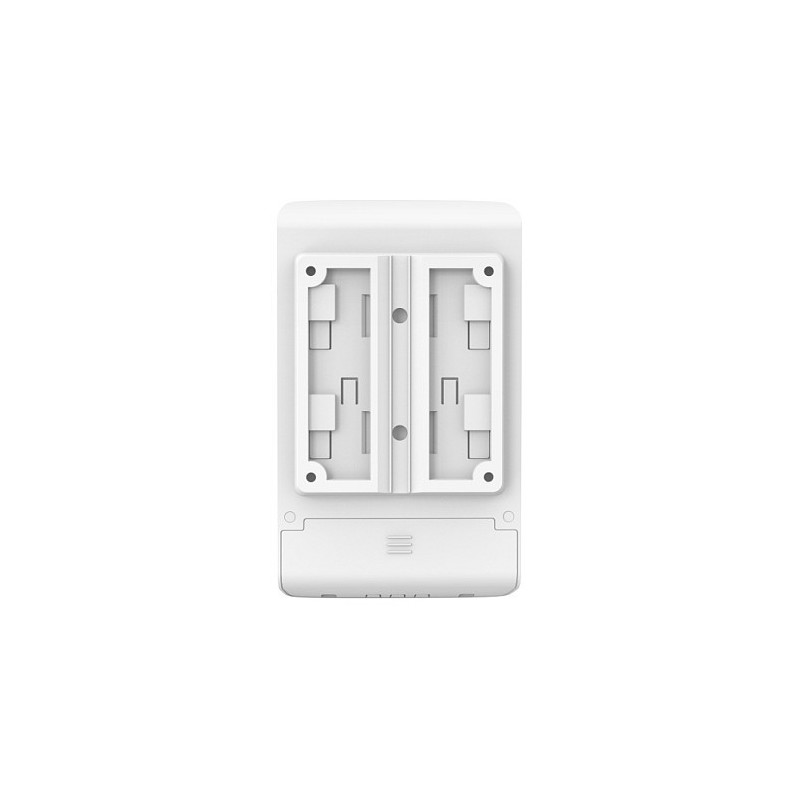

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.

Value-Added Features Foster Touchpoint Experiences

Static Routing
Helps route internal traffic for more efficient use of network resources.

Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

QoS for Lag-Free Experiences
Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.

VLAN for Security and Flexible Management
VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.

Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.

Management features

Switch type: Managed
Switch layer: L2/L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: ARP inspection
MIB support: Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity: 4

Network

Feature: 10G support
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T
Cable types supported: Cat5, Cat5e
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Spanning tree protocol
IPv4 routes: 32
IPv6 routes: 32
Feature: VLAN support
Virtual LAN features: Voice VLAN
Number of VLANs: 4000

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 8000 entries
Feature: Jumbo frames support
Jumbo frames: 9
Packet forwarding rate (1 Gbps): 7440 pps
Packet buffer memory: 4.1 MB

Security

DHCP features: DHCP relay, DHCP server
Feature: Access Control List (ACL)
Access Control List (ACL) IPv4 entries: 32
Feature: IGMP snooping
Security algorithms: 802.1x RADIUS
Feature: MAC address filtering
Feature: IP-MAC-Port binding
Authentication: MAC-based authentication, Port-based authentication
Feature: Password protection

Multicast features

Feature: Multicast support
Multicast MAC address table: 8000 entries
IPv4 multicast entries: 511
IPv6 multicast entries: 511

Protocols

IPv4 & IPv6 features: Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert

Design

Form factor: Desktop
Product colour: White
LED indicators: Yes

Power

Power source: DC/PoE
Feature: Power supply included
Power consumption (typical): 71.5 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port: 64 W

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 243.99 BTU/h

Weight & dimensions

Width: 170 mm
Depth: 100 mm
Height: 38.5 mm

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, RoHS
