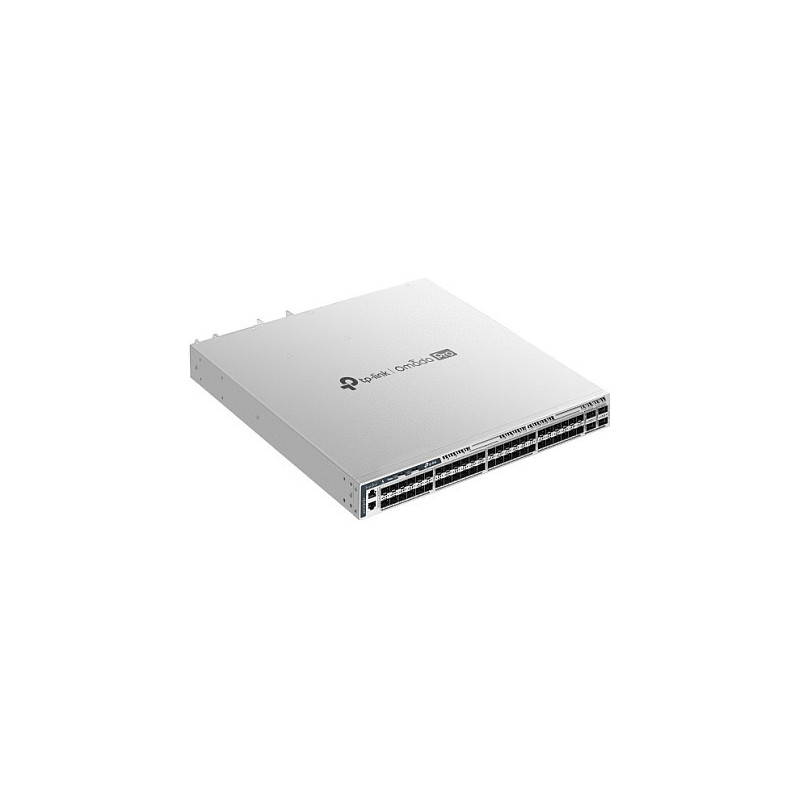

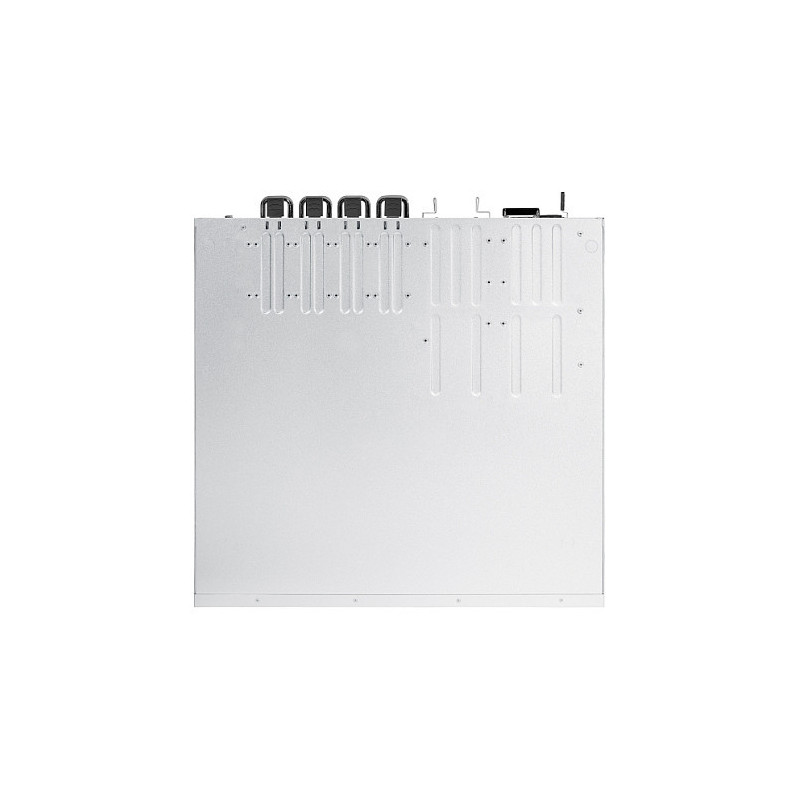

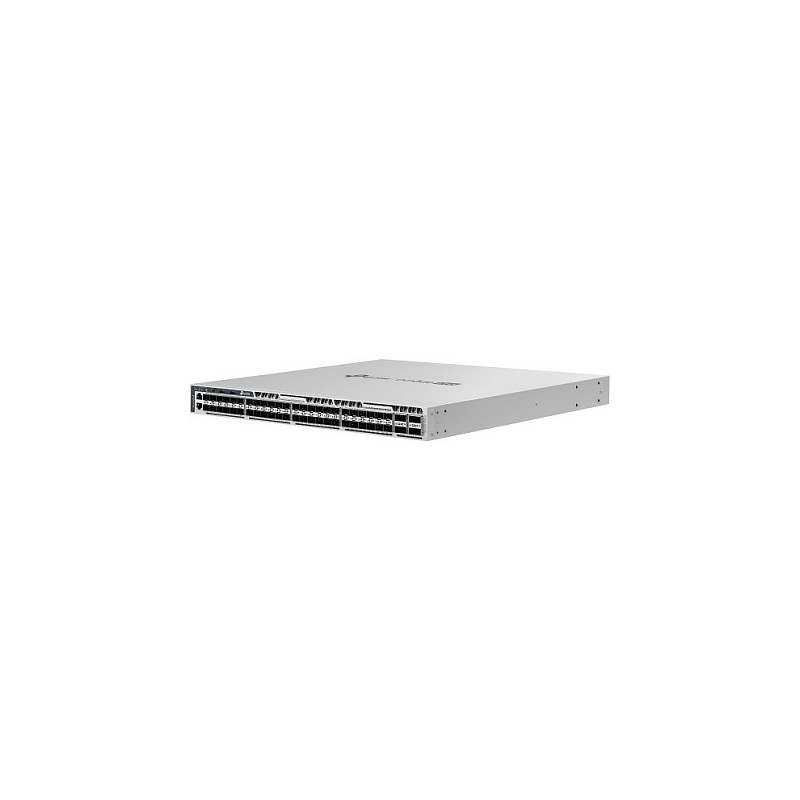

TP-Link Omada S7500-48XF4C network switch

TP-Link Omada S7500-48XF4C. Switch type: Managed. USB 2.0 ports quantity: 3, Console port: RJ-45. MAC address table: 128000 entries, Switching capacity: 1760 Gbit/s. Rack mounting

What This Product Does
Omada Pro S7500-48XF4C is a high-performance L3 managed switch tailored for the aggregation and core layer, featuring L3 routing, fast 100 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 48× 10 Gbps SFP+ slots, 4× 100 Gbps QSFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S7500-48XF4C offers a dependable networking solution for enterprises, campus, and ISPs.

High-speed Connectivity and Powerful Stacking

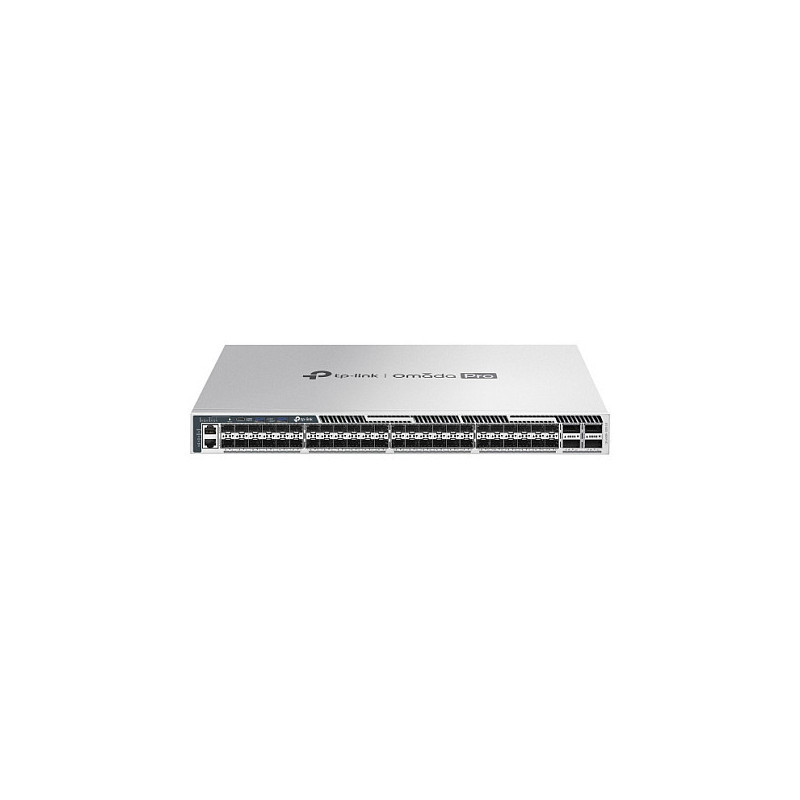

48× 10 Gbps SFP+ slots and 4× 100 Gbps QSFP28 slots provide up to 1760 Gbps switching capacity per unit. Physical stacking of up to 12 units△ enhances network performance and redundancy.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.

Comprehensive Security Functions
Defend against a range of network threats with Secure Boot, RADSEC, IMPB, Dynamic ARP Inspection, SFTP, 802.1X, and Secure Shell. Secure Boot protects the operating system from malicious attacks.

Highly Available

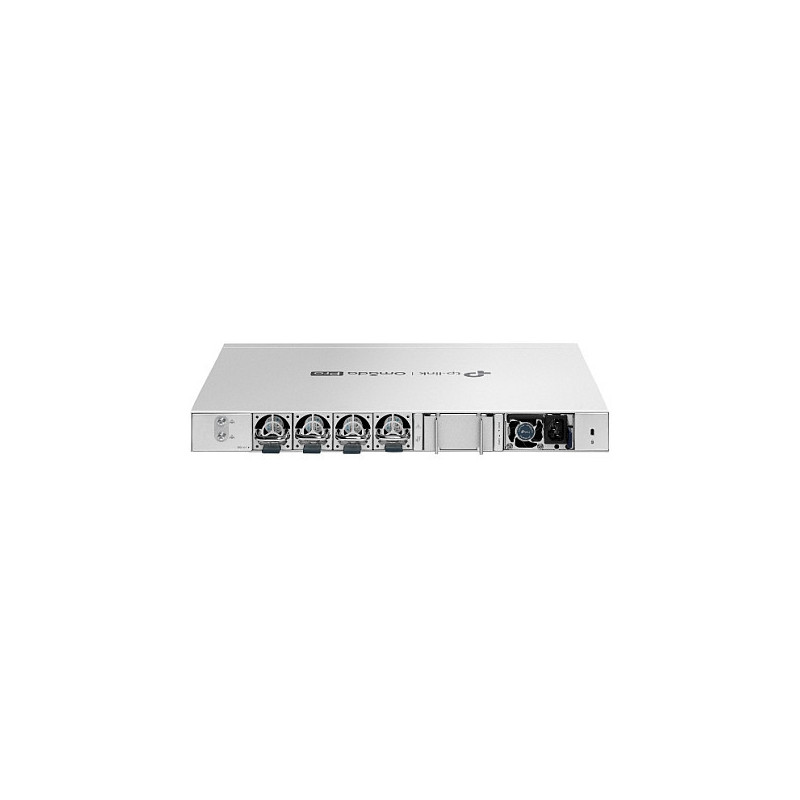

Two field-replaceable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing.

Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions.

Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.‡ Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface.

Apart from central management via the web or Omada app, S7500-48XF4C can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications.

Management features

Switch type: Managed
Feature: Web-based management
Feature: Cloud-managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
SFP+ module slots quantity: 48
Console port: RJ-45
QSFP28 ports quantity: 4
USB 2.0 ports quantity: 3

Network

Feature: 10G support
Feature: Flow control support
Feature: Link aggregation
Feature: Rate limiting
Feature: Spanning tree protocol
Ethernet LAN data rates: 1000,10000,40000,100000 Mbit/s
Feature: VLAN support

Data transmission

Switching capacity: 1760 Gbit/s
Forwarding rate: 610.1 Mpps
MAC address table: 128000 entries
Feature: Jumbo frames support
Jumbo frames: 9000
Packet buffer memory: 8 MB

Security

DHCP features: DHCP client

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNMPv1/v2c/v3

Design

Feature: Rack mounting
Feature: Stackable

Power

Power source: AC
Feature: Power supply included
AC input voltage: 110 V
AC input frequency: 60 Hz
Power consumption (max): 86.7 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 295.85 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 380 mm
Height: 44 mm

Packaging content

Cables included: AC, LAN (RJ-45)

Packaging data

Package type: Box
