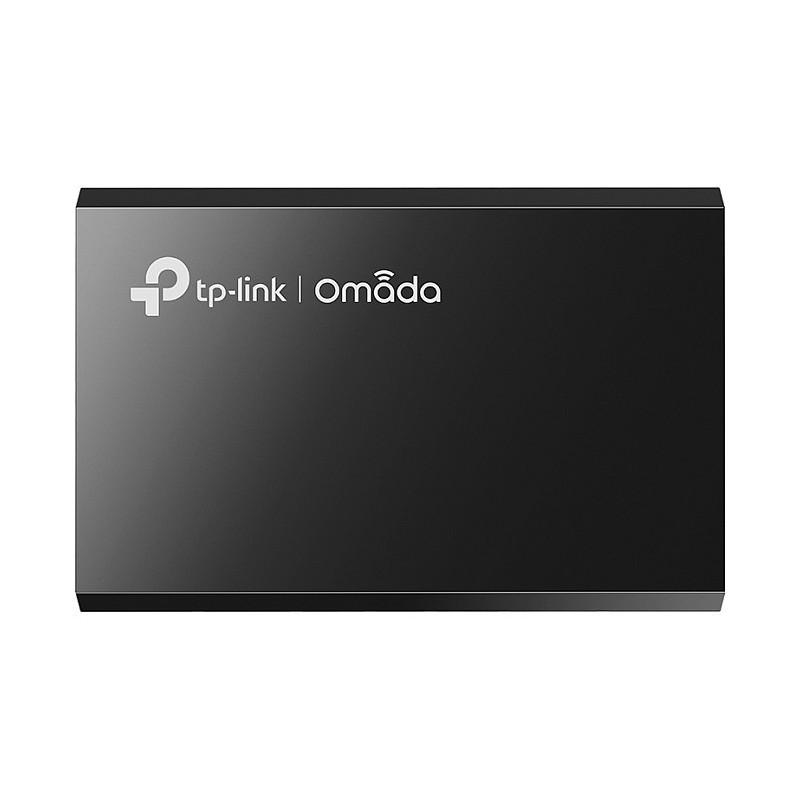

TP-Link Omada POE150S PoE adapter

TP-Link Omada IEEE 802.3af PoE Injector. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Maximum operating distance: 100 m. Input voltage: 48 V. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Width: 80.8 mm, Depth: 54 mm, Height: 24 mm

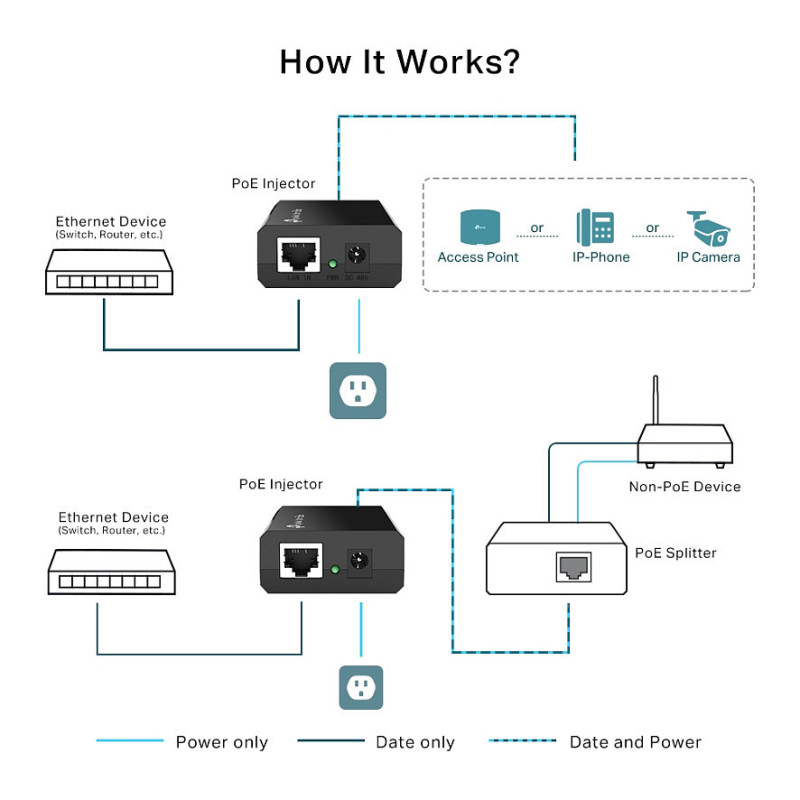

The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK's POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Network

Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6

Features

Product colour: Black
Feature: Plug and Play
Maximum operating distance: 100 m
LED indicators: Yes
Feature: Auto-sensing
Feature: Auto-negotiation

Ports & interfaces

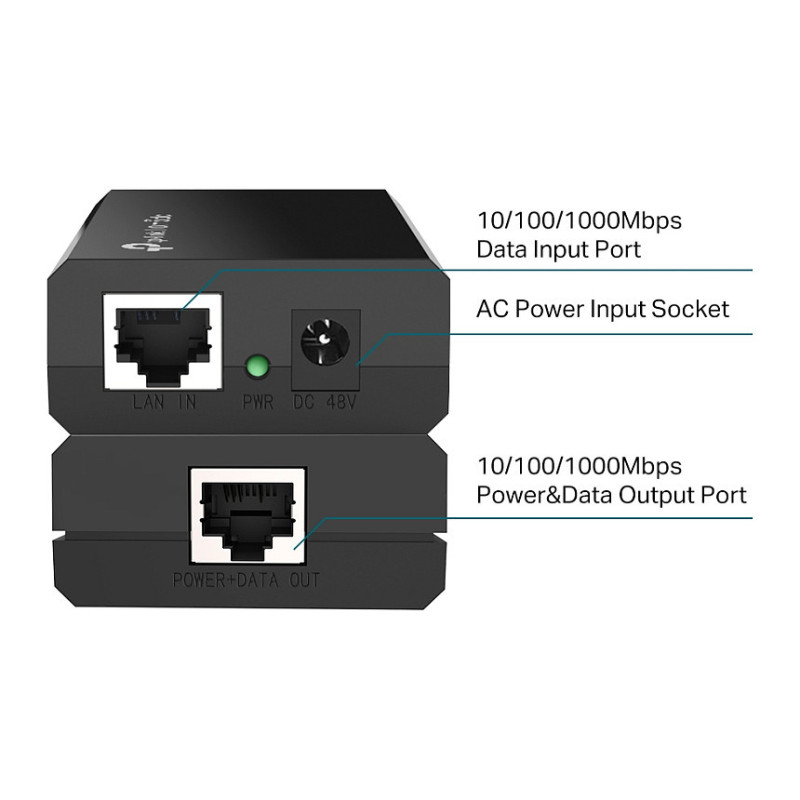

RJ-45 input ports: 1
RJ-45 output ports: 1
Feature: DC-in jack

Power

Input voltage: 48 V

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 80.8 mm
Depth: 54 mm
Height: 24 mm

Packaging content

Number of products included: 1 pc(s)
Feature: AC adapter included
Feature: Quick installation guide

Packaging data

Package width: 65 mm
Package depth: 198 mm
Package height: 65 mm
Package weight: 350 g
