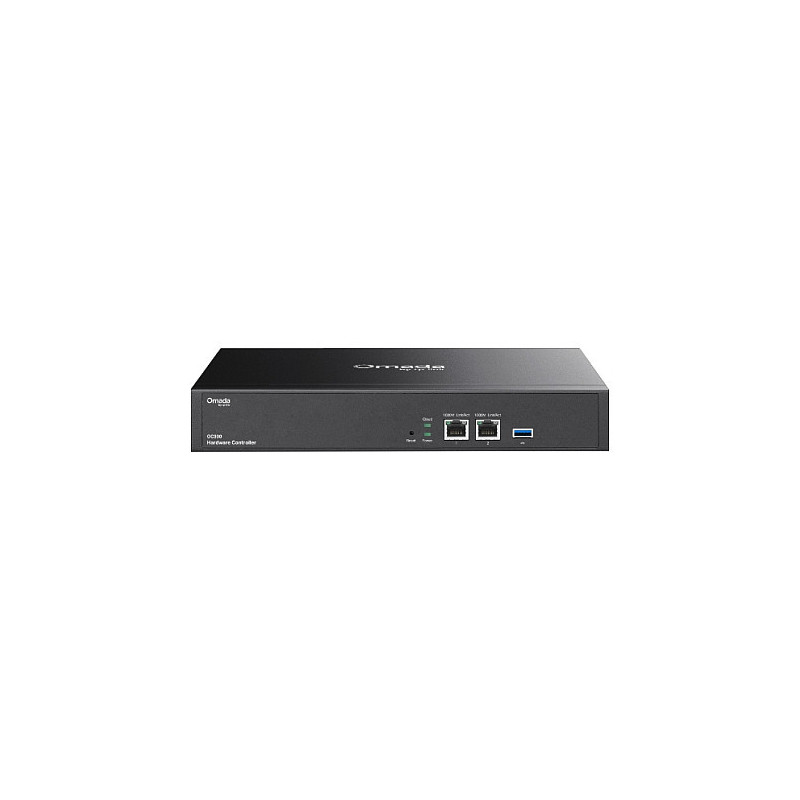

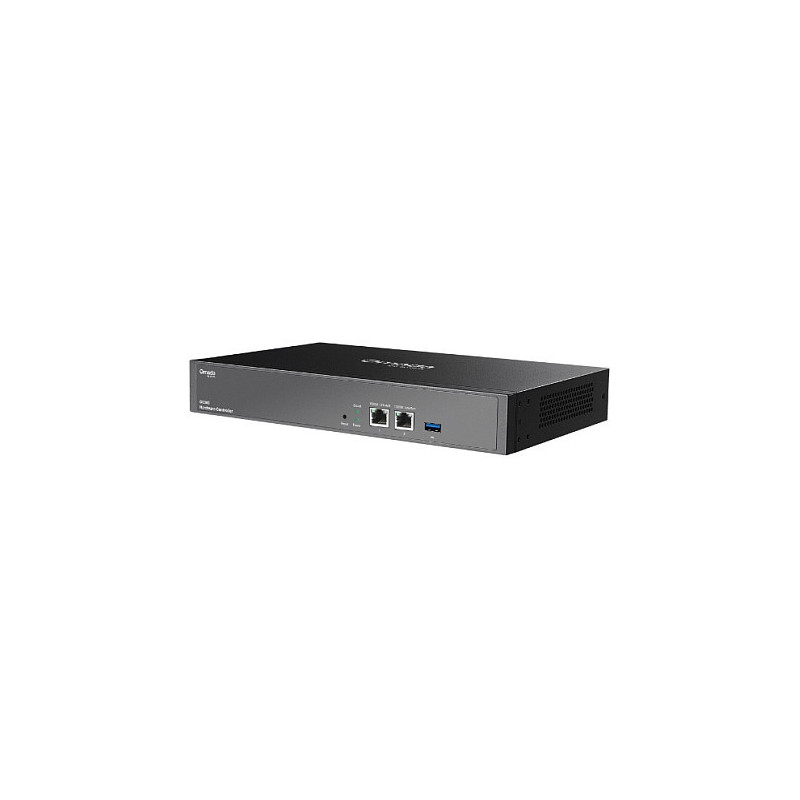

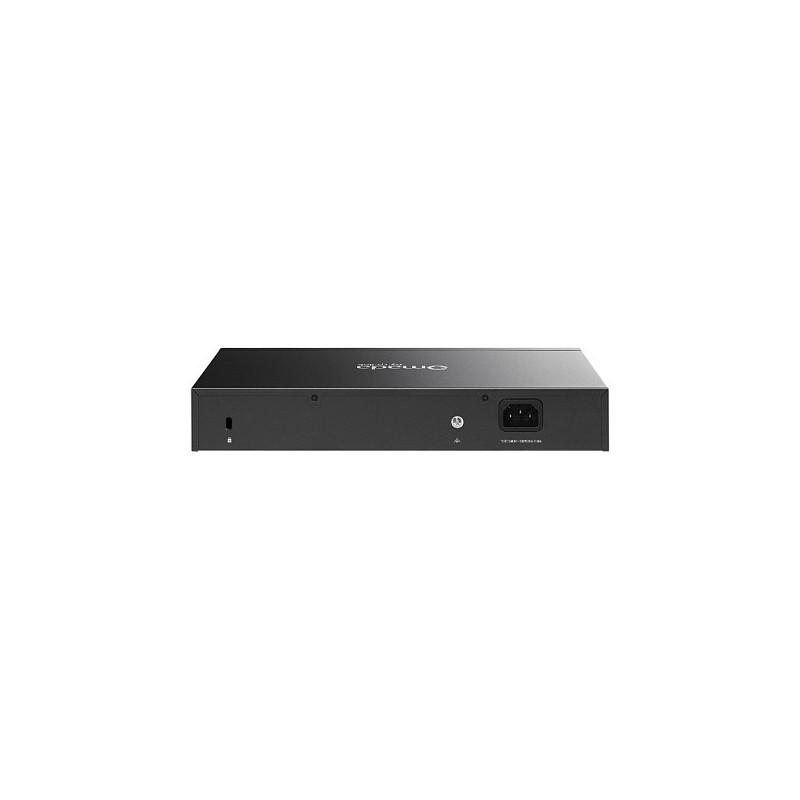

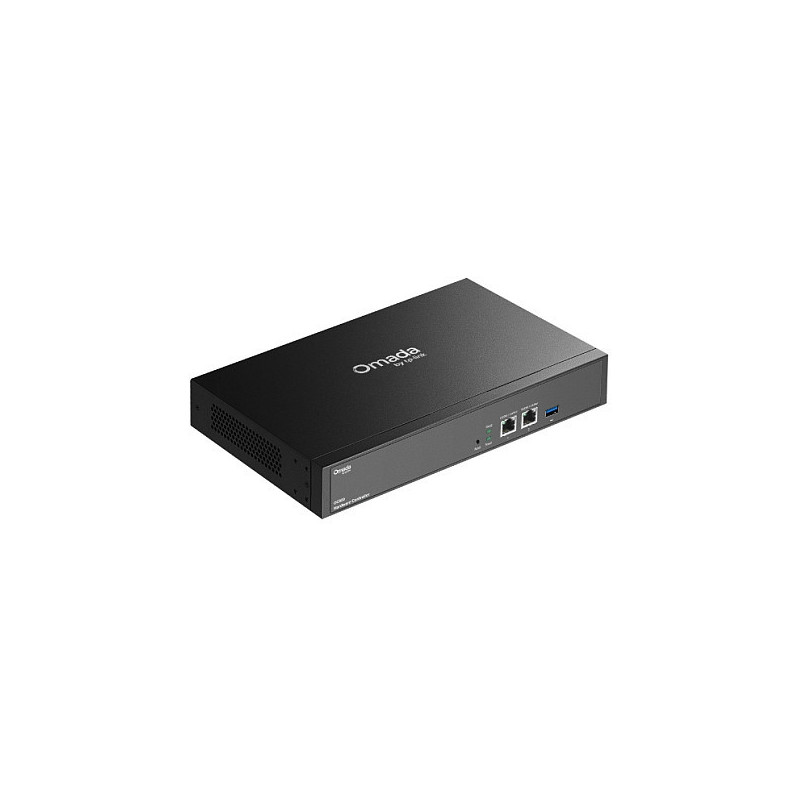

TP-Link Omada OC300 gateway / controller

TP-Link Omada Hardware Controller. Product colour: Black, Rack capacity: 1U. Processor manufacturer: ARM, Processor family: ARM Cortex, Internal memory: 2000 MB. Supported protocols: Routing/NAT/Session Limit/Bandwidth Control VPN (IPSec/L2TP/PPTP/OpenVPN) RADIUS.... Ethernet LAN data rates: 10,100,1000 Mbit/s, VPN support: VPN (IPSec/L2TP/PPTP/OpenVPN). Security algorithms: SNMP, SSH

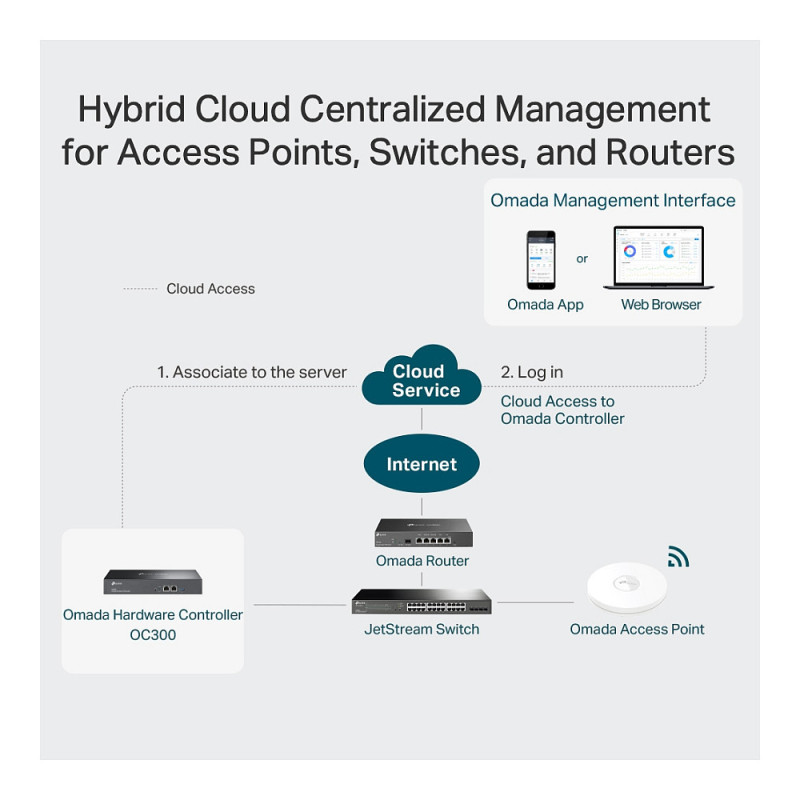

Hybrid Cloud Management for Maximum Convenience
Supports remotely or locally centralized management for up to 500 Omada access points, 100 Omada gateways, a maximum of 100 Omada switches, and a maximum of 5 certain DeltaStream GPON OLTs*.

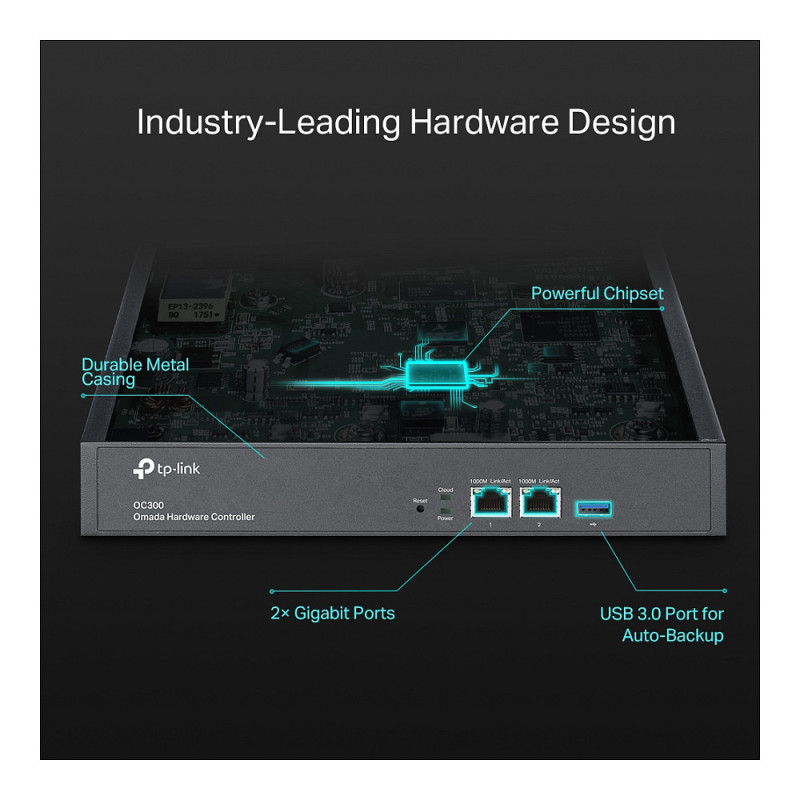

Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, the Omada OC300 delivers more than enough processing power to support massive network management—while its enterprise-grade reliability ensures uninterrupted, 24/7 operation under heavy loads. Rackmount/desktop design benefits easier and flexible installation.

Design

Product colour: Black
Rack capacity: 1U
LED indicators: Yes

Performance

Control display unit: No
Built-in processor: Yes
Processor manufacturer: ARM
Processor family: ARM Cortex
Number of processors installed: 1
Internal memory: 2000 MB
Internal memory type: DDR4
Flash memory: 2 MB

Protocols

Supported protocols: Routing/NAT/Session Limit/Bandwidth ControlVPN (IPSec/L2TP/PPTP/OpenVPN)RADIUS (Authentication/MAC Auth/Accounting)802.1x

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
VPN support: VPN (IPSec/L2TP/PPTP/OpenVPN)

Security

Access Control List (ACL): Yes
MAC address filtering: Yes
Security algorithms: SNMP, SSH
Network address translation (NAT): Yes

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 2

Management features

Web-based management: Yes
Syslog: Yes
Traffic statistics: Yes

Power

Power consumption (typical): 9 W
Power consumption (max): 14.8 W
Input voltage: 100 - 240 V
Input frequency: 50/60 Hz

Weight dimensions

Width: 294 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Cables included: LAN (RJ-45)
Quick installation guide: Yes

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Certificates

Certification: CE, FCC, RoHS
