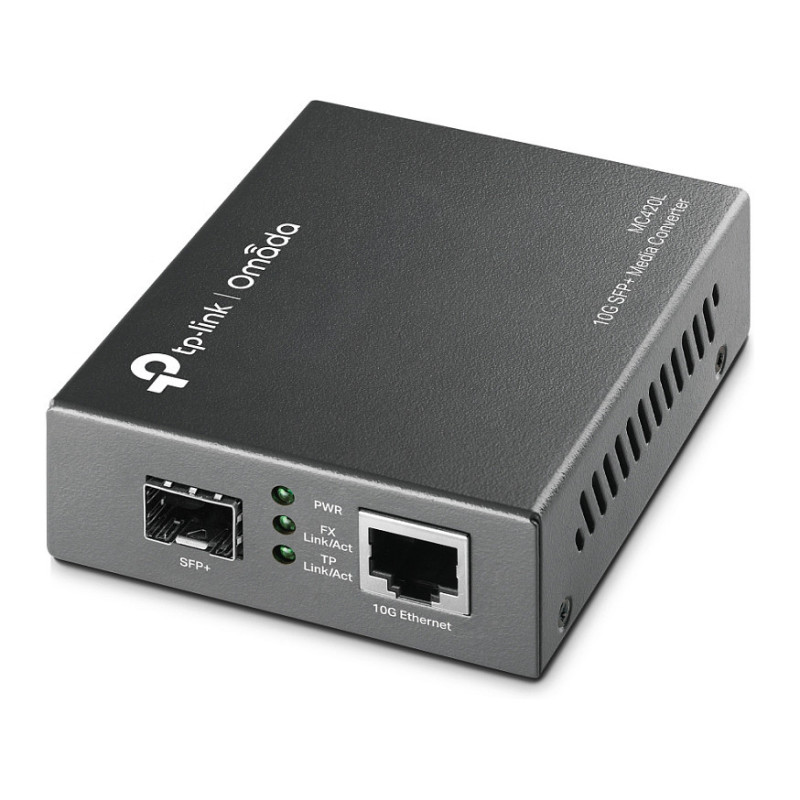

TP-Link Omada MC420L network media converter

TP-Link Omada 10G Multi-Gigabit SFP Media Converter. Maximum data transfer rate: 10000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3x, IEEE 802.3z, Copper ethernet cabling technology: 2.5GBASE-T, 10GBASE-T, 1000BASE-T. Maximum transfer distance: 100 m, Fiber mode structure: Multi-mode, Single-mode. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SFP+, Connectivity technology: Wired. Power consumption (max): 4.12 W

What This Product Does
The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.

Network

Maximum data transfer rate: 10000 Mbit/s
Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 2.5GBASE-T, 10GBASE-T, 1000BASE-T
Data transfer rate: 10000 Mbit/s
Feature: Auto-negotiation
Duplex system: Full, Half

Performance

Maximum transfer distance: 100 m
Fiber mode structure: Multi-mode, Single-mode

Features

LED indicators: Activity, Link, Power
Product colour: Black

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SFP+

Power

Power consumption (max): 4.12 W

Weight & dimensions

Width: 94.5 mm
Depth: 73 mm
Height: 27 mm

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Packaging content

Feature: AC adapter included
Feature: Manual

Certificates

Compliance certificates: RoHS, UL
