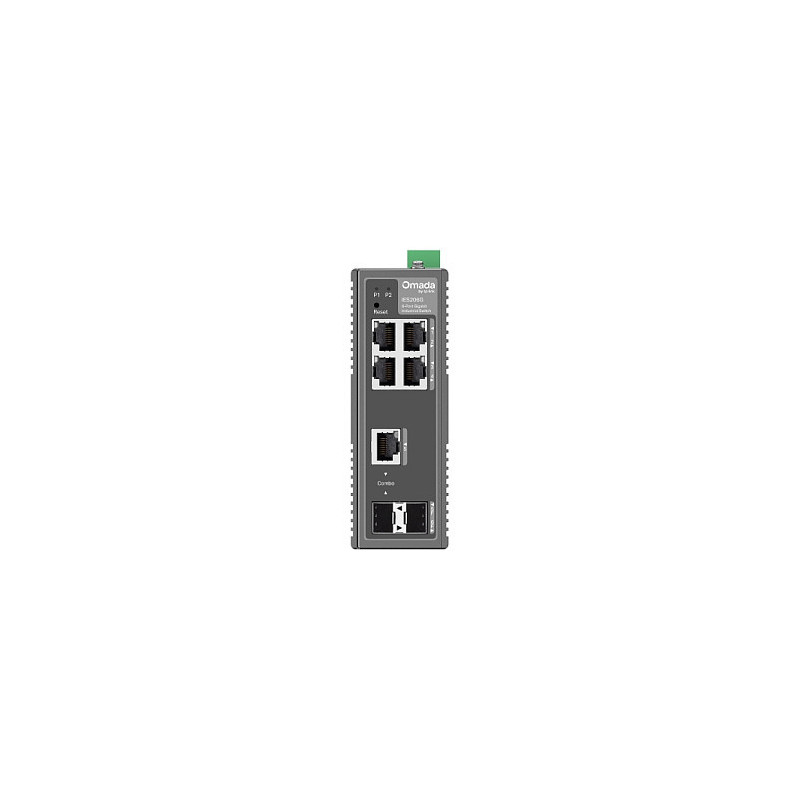

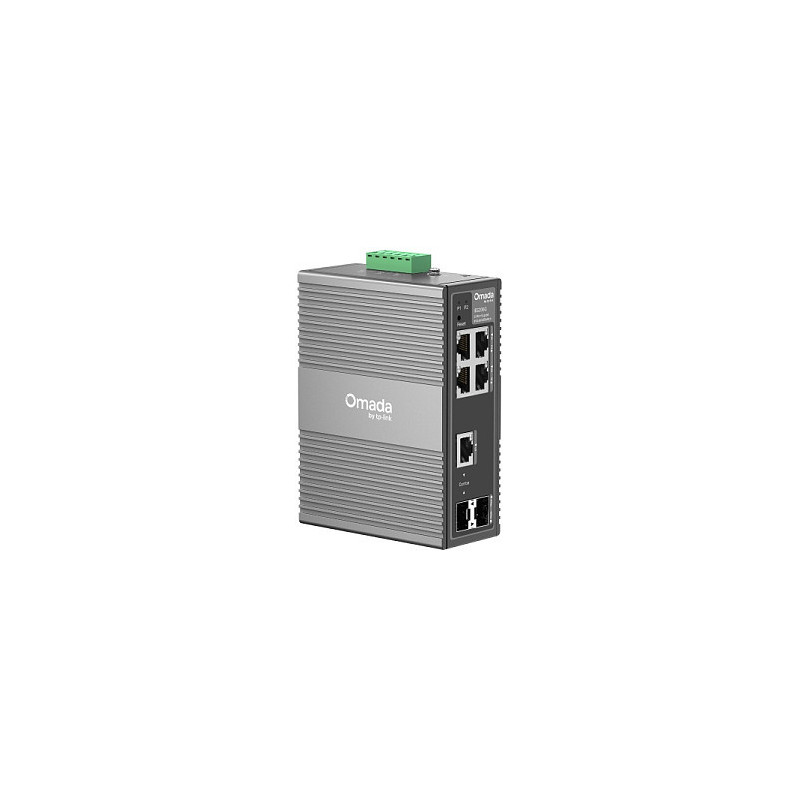

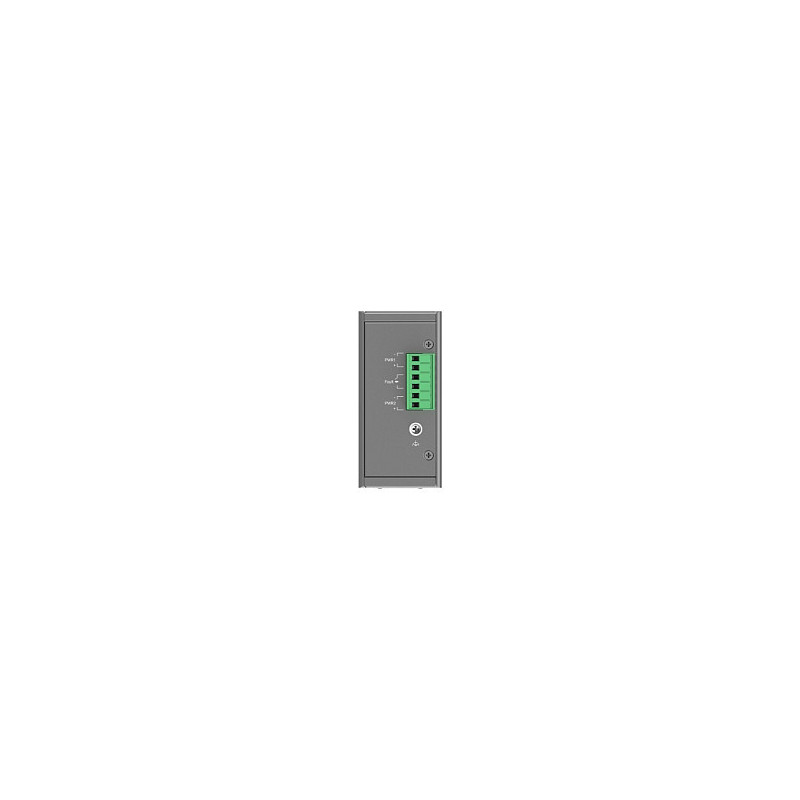

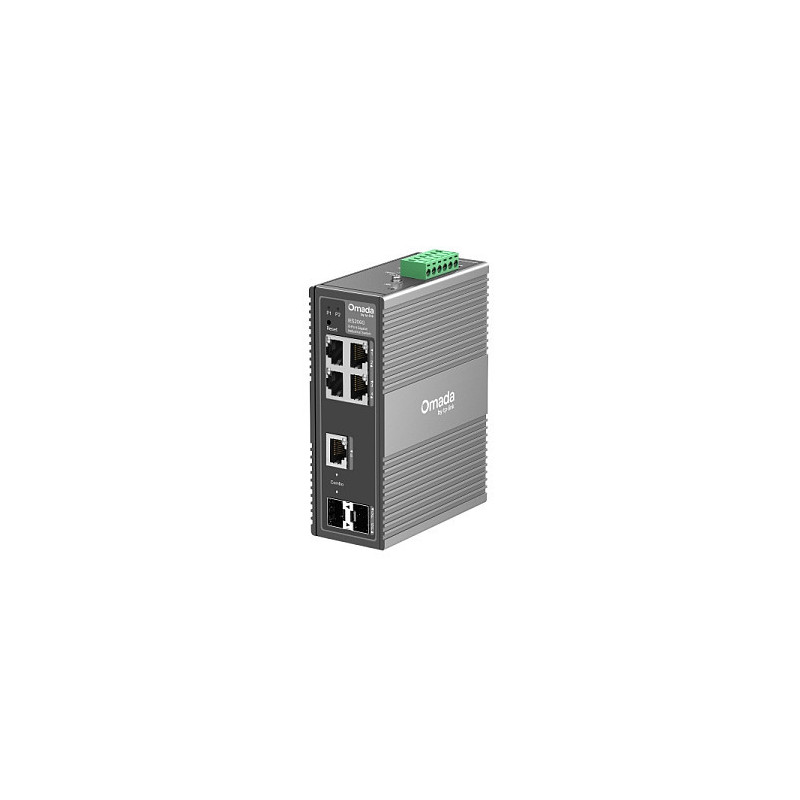

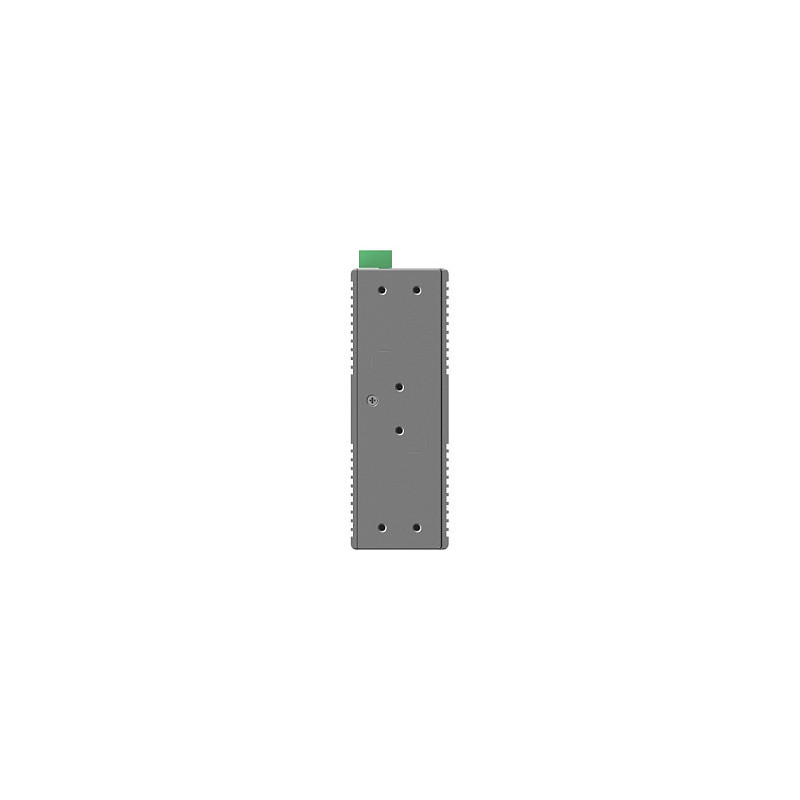

TP-Link Omada IES206G network switch

TP-Link Omada IES206G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 - 60 V. Wall mountable

Management features

Switch type: Managed
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 1
SFP module slots quantity: 1

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-negotiation

Data transmission

Switching capacity: 12 Gbit/s
Forwarding rate: 8.93 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000

Security

DHCP features: DHCP client
Feature: IGMP snooping

Multicast features

Feature: Multicast support

Design

Product colour: Black
Feature: Wall mountable
Feature: DIN rail mounting

Performance

Feature: Fanless

Power

Power source: DC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
DC input voltage: 9 - 60 V

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 129 mm
Depth: 95 mm
Height: 45 mm

Certificates

Certification: FCC, CE, RoHS
