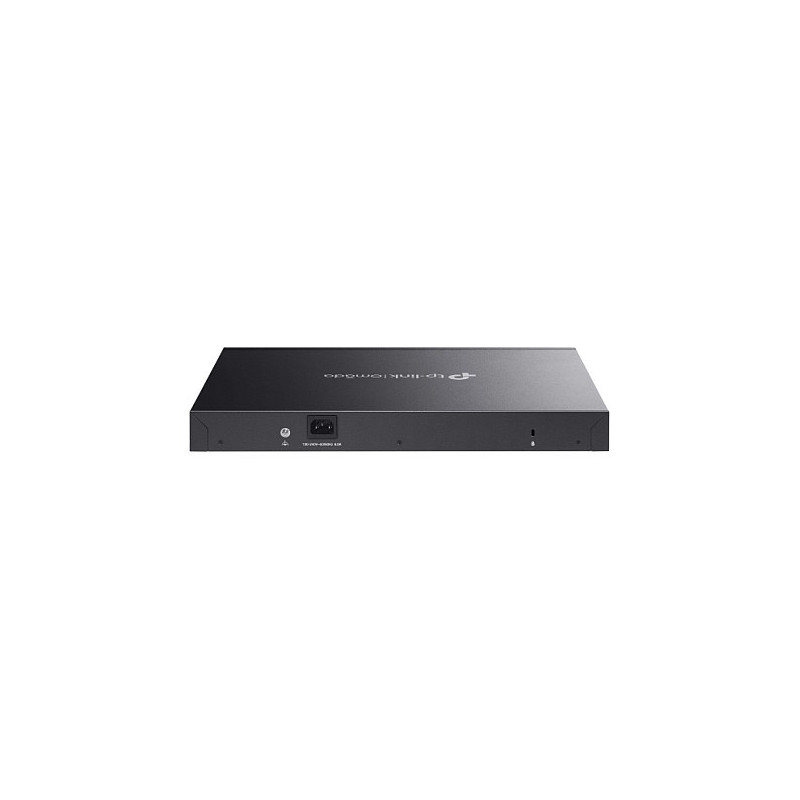

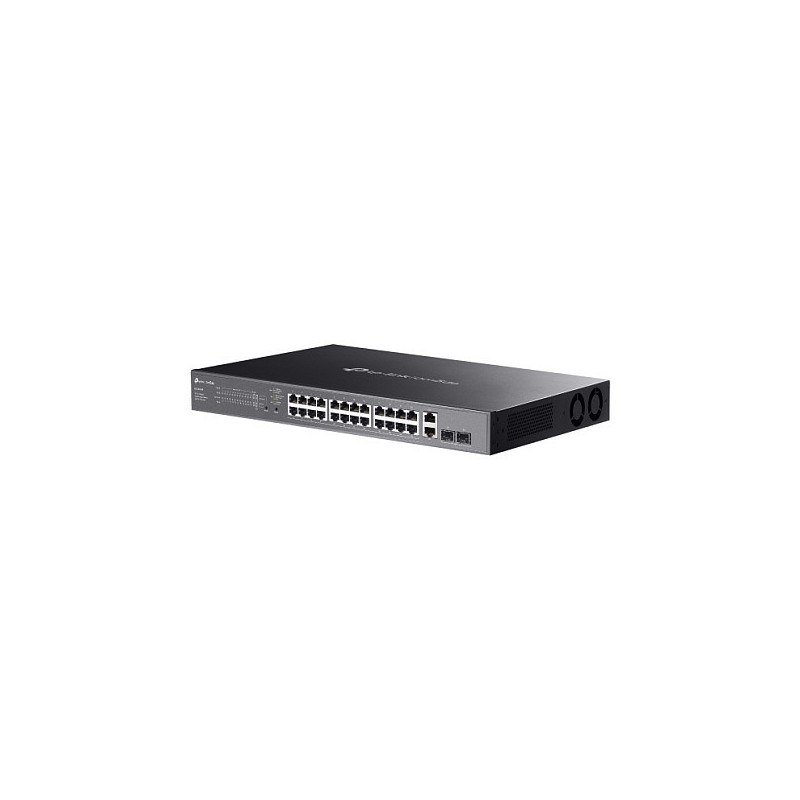

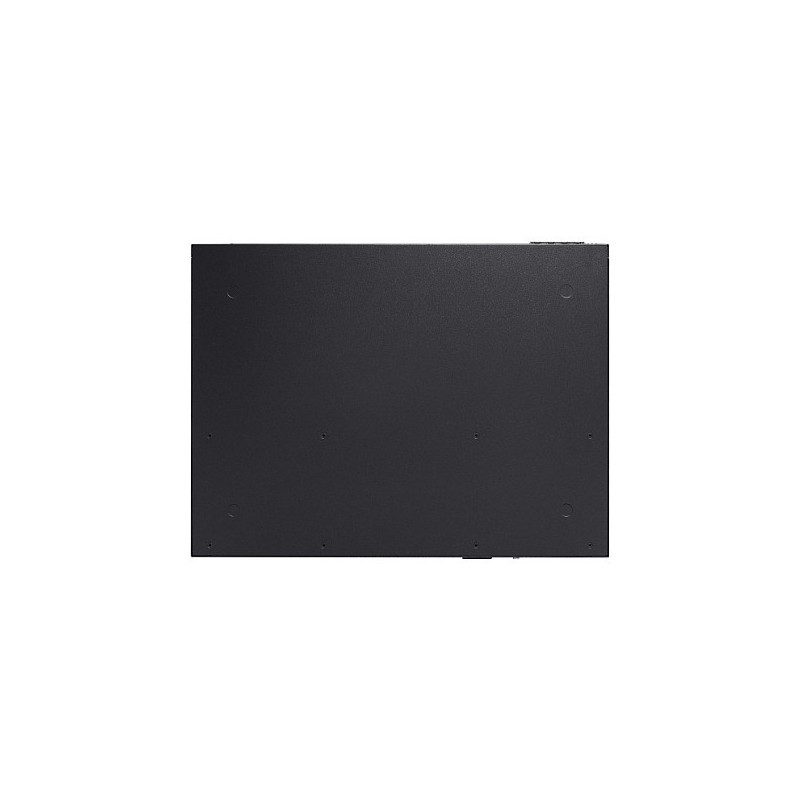

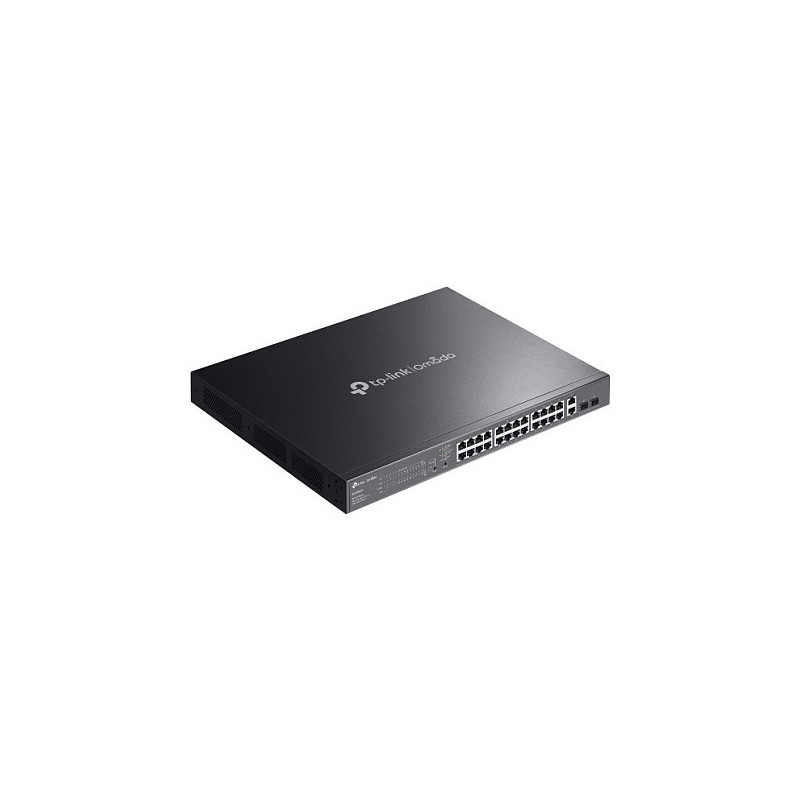

TP-Link Omada ES228GMP network switch

TP-Link Omada ES228GMP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i,.... Power over Ethernet (PoE). Rack mounting

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: Unified static configuration

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 26
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 26
SFP module slots quantity: 2

Network

Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Fast leave
Feature: VLAN support
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 56 Gbit/s
Forwarding rate: 41.66 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 4 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Black
Housing material: Metal
LED indicators: Yes
Number of fans: 2 fan(s)

Performance

Flash memory: 64 MB
Noise level: 46.2 dB
Feature: Firmware upgradeable
Mean time between failures (MTBF): 224143 h

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 454.8 W
Feature: Surge protection
Surge protection voltage: 6 kV

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 384 W

Operational conditions

Operating temperature (T-T): -5 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 1546.15 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 330 mm
Height: 44 mm

Packaging content

Cables included: AC
Feature: Quick start guide
Feature: Manual
Feature: Rack mount kit

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Certification: FCC, CE, RoHS
