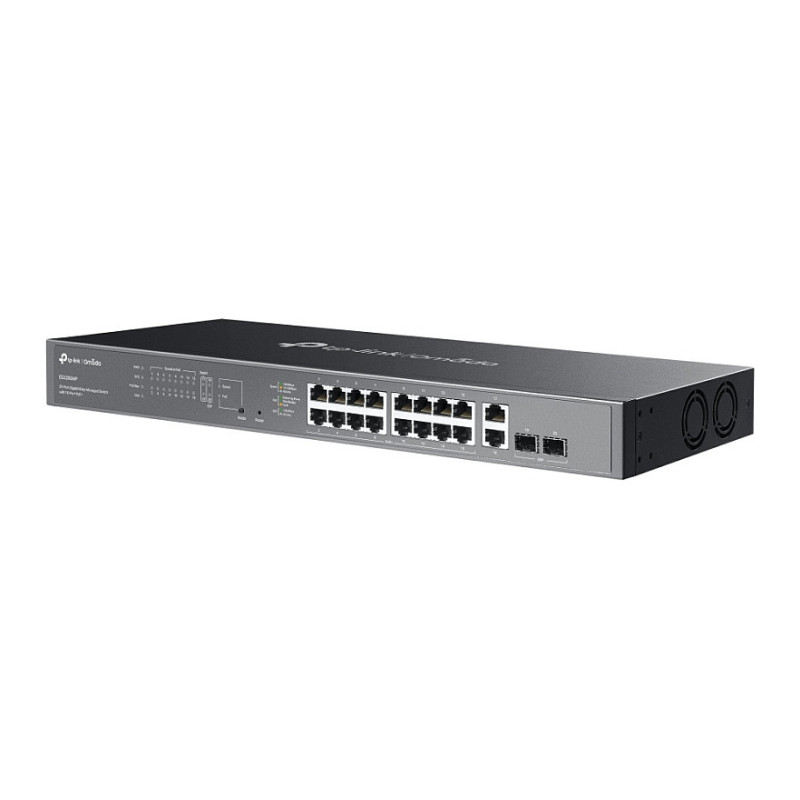

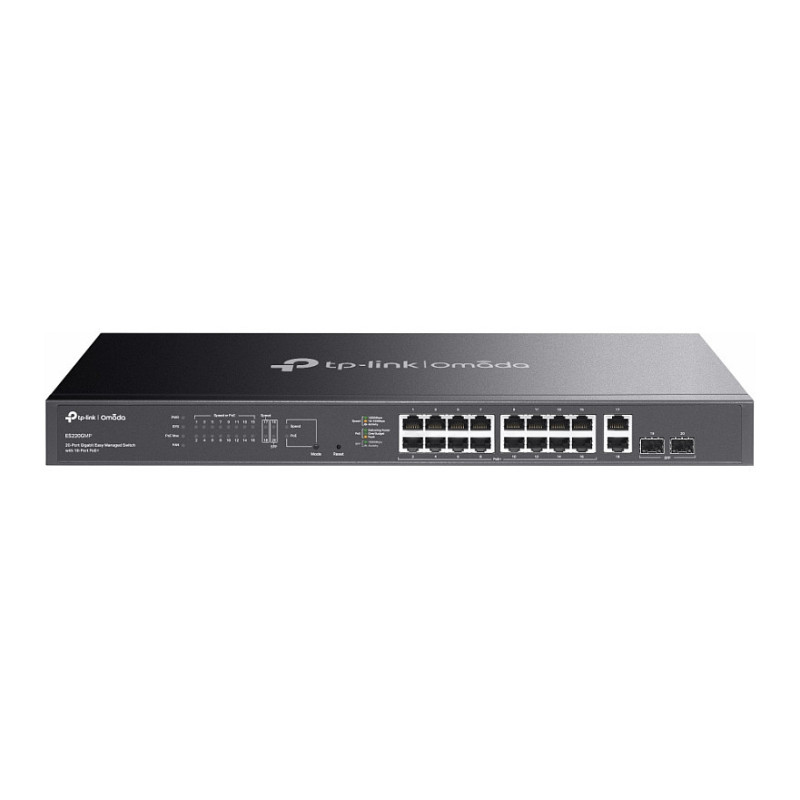

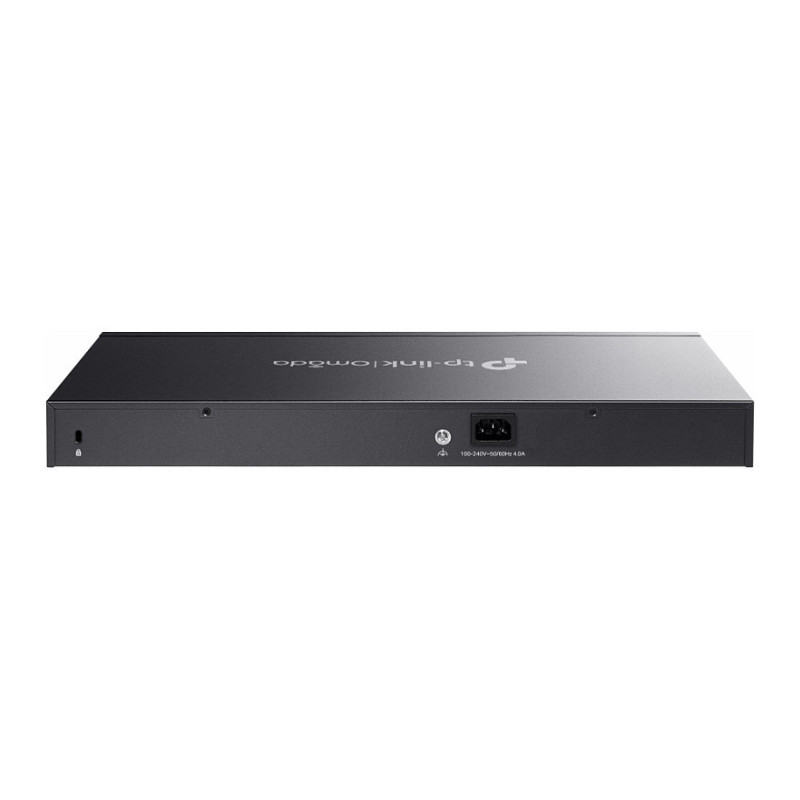

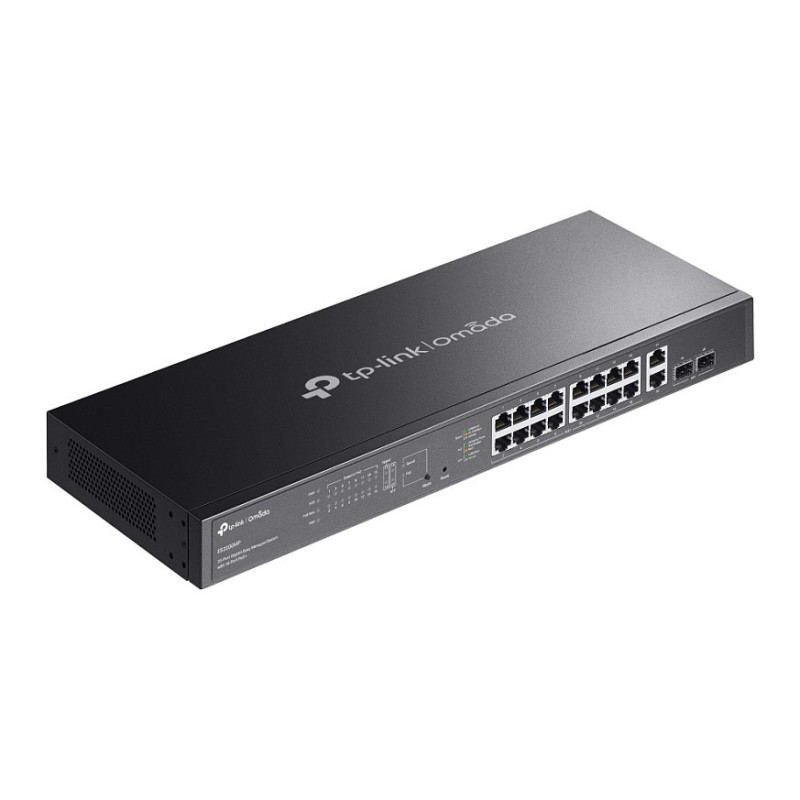

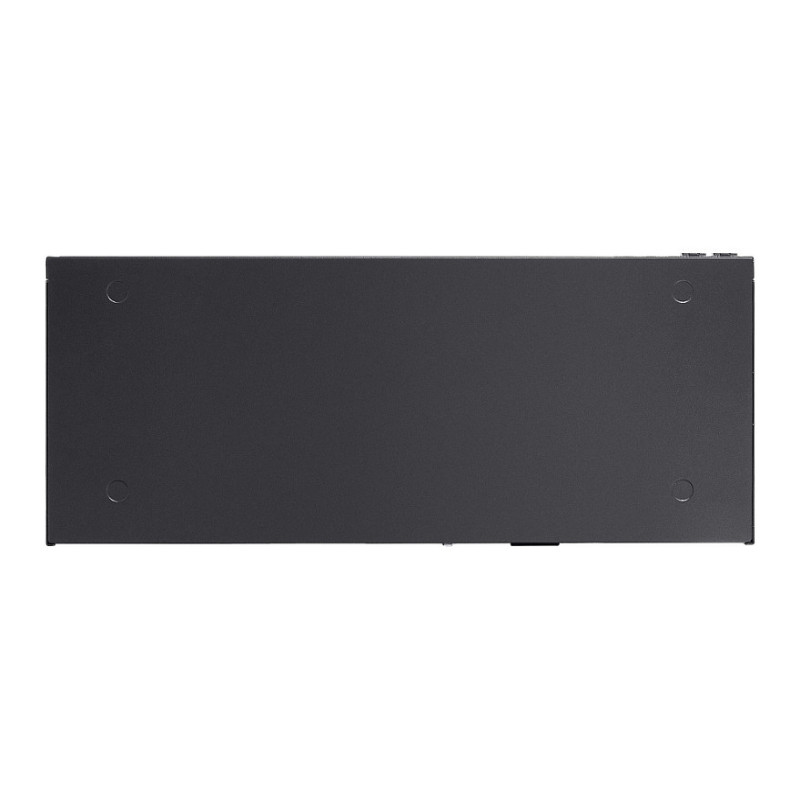

TP-Link Omada ES220GMP network switch

TP-Link Omada ES220GMP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: Unified static configuration

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 18
SFP module slots quantity: 2
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Zero Touch Provisioning (ZTP)
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Fast leave
Feature: VLAN support
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 40 Gbit/s
Forwarding rate: 29.76 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 4 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Feature: Loop protection
Queue scheduling algorithms: Weighted Round Robin (WRR)

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Yes
Number of fans: 2 fan(s)

Performance

Flash memory: 64 MB
Noise level: 41.5 dB
Feature: Firmware upgradeable
Mean time between failures (MTBF): 310550.7 h

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 289.7 W
Feature: Surge protection
Surge protection voltage: 6 kV

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 250 W

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 984.88 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 180 mm
Height: 44 mm

Packaging content

Cables included: AC
Feature: User guide
Feature: Rack mount kit

Packaging data

Package type: Box

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
