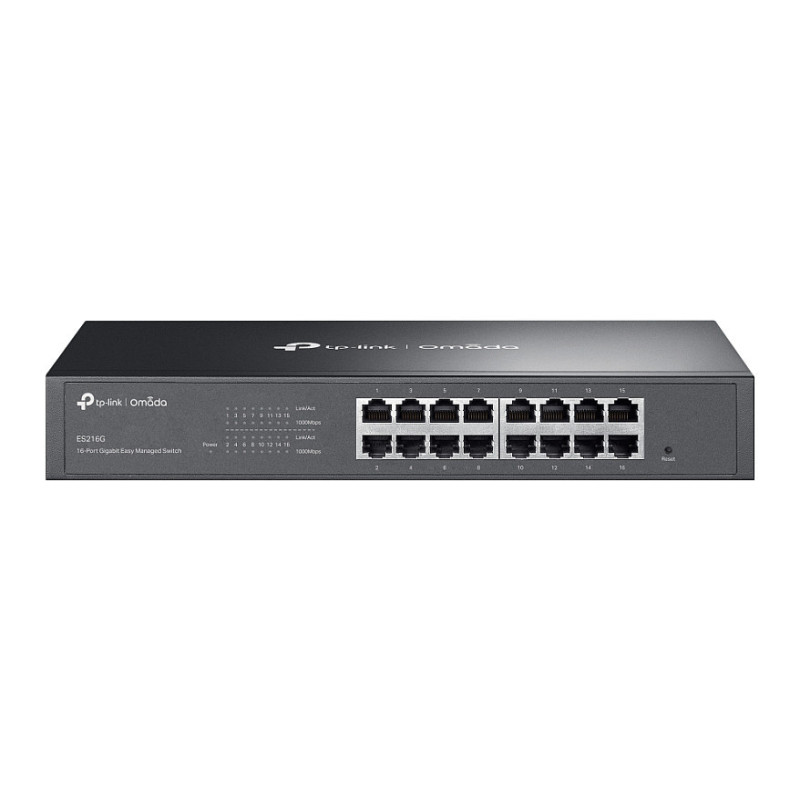

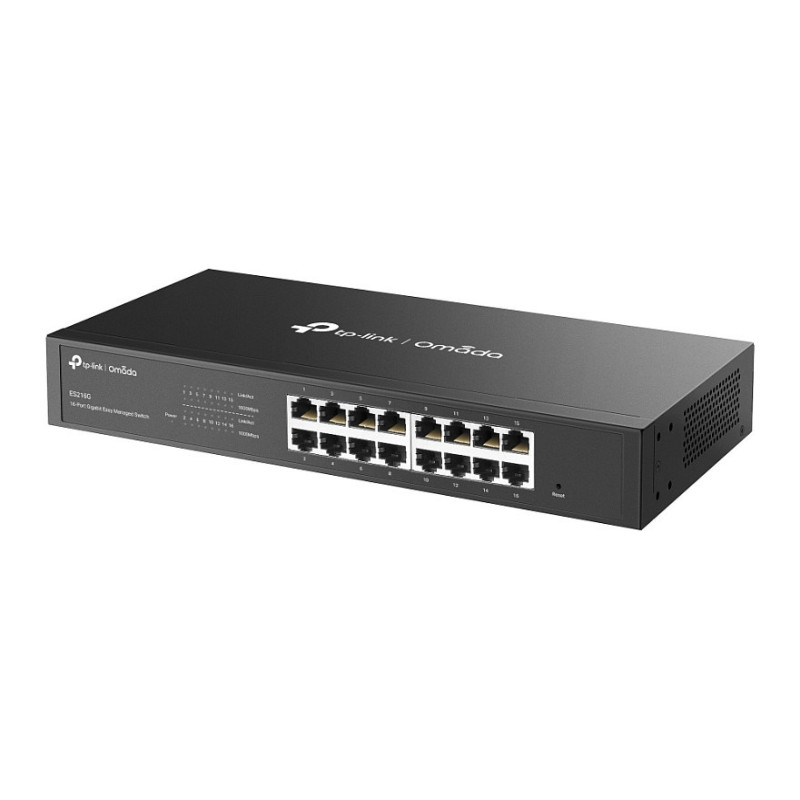

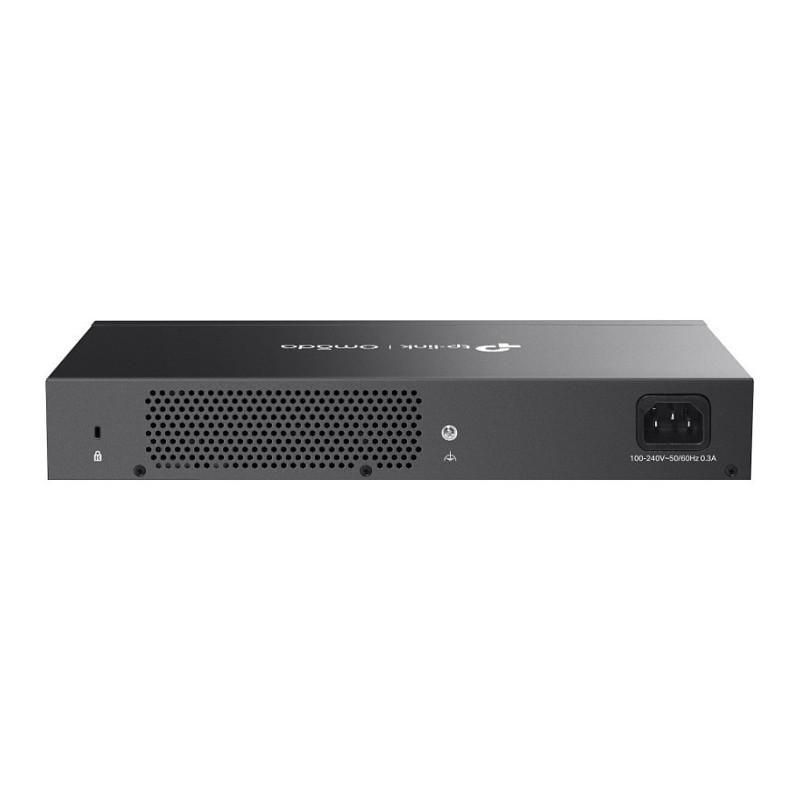

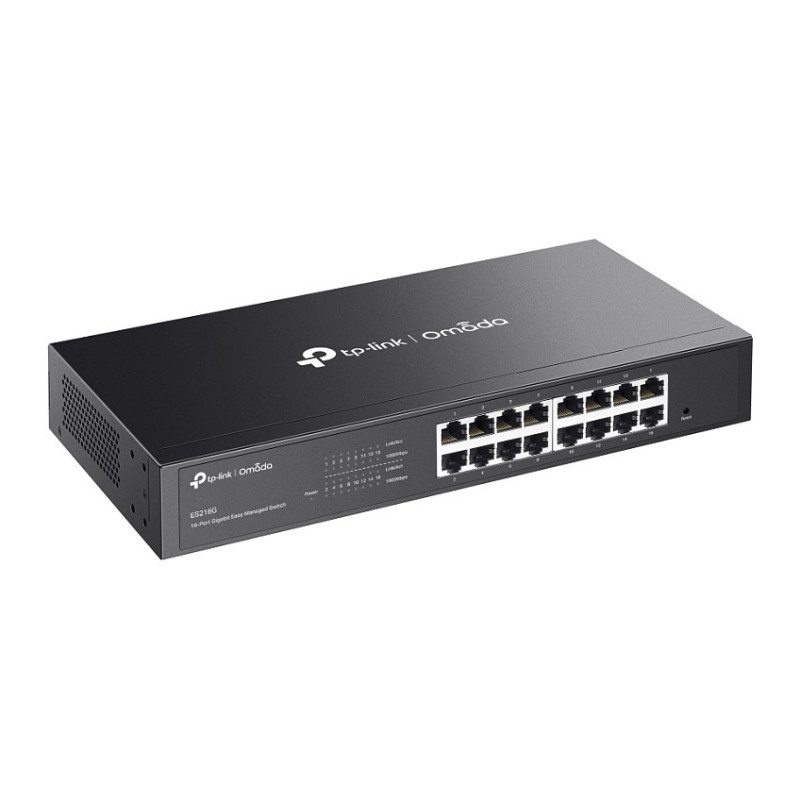

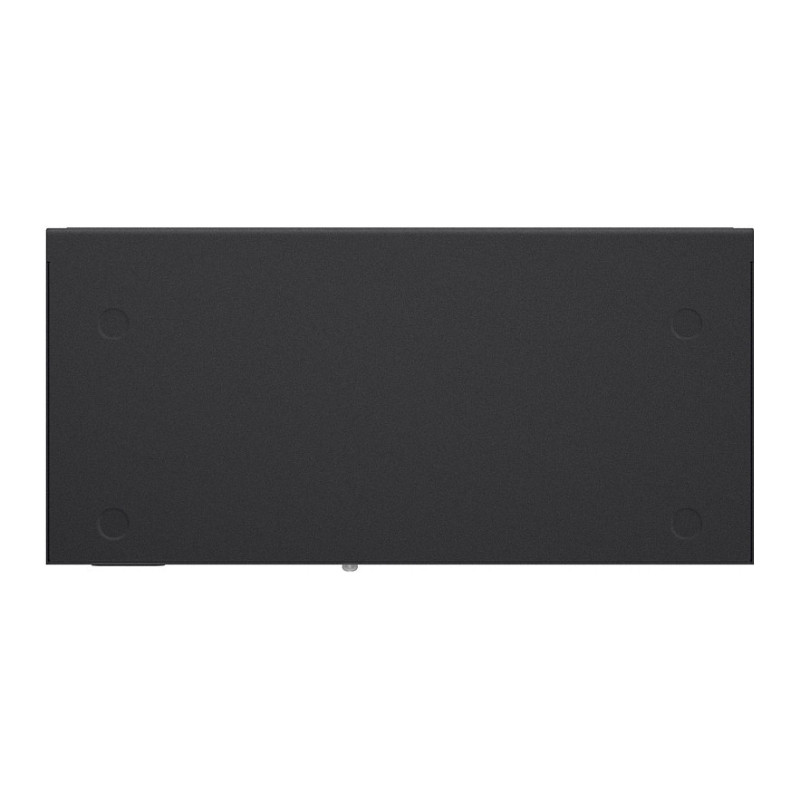

TP-Link Omada ES216G network switch

TP-Link Omada ES216G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x. Power connector: AC-in jack. Rack mounting

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: Unified static configuration

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
Feature: Zero Touch Provisioning (ZTP)
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Feature: Fast leave
Feature: VLAN support
Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs: 32

Data transmission

Switching capacity: 32 Gbit/s
Forwarding rate: 23.8 Mpps
MAC address table: 8000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 15000
Packet buffer memory: 4 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Feature: Loop protection
Queue scheduling algorithms: Weighted Round Robin (WRR)

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Yes

Performance

Flash memory: 64 MB
Feature: Firmware upgradeable
Feature: Fanless
Mean time between failures (MTBF): 2131140 h

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 8.4 W
Feature: Surge protection
Surge protection voltage: 6 kV

Operational conditions

Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 28.52 BTU/h

Weight & dimensions

Width: 294 mm
Depth: 140 mm
Height: 44 mm

Packaging content

Cables included: AC
Feature: User guide
Feature: Rack mount kit

Packaging data

Package type: Box

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
